Setting Up the Projector
Video Setup
If using this projector outside the U.S.A., please change setting to “0 IRE” in Video Setup. (See
page 53.)
Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector's
feet fl at and level. Doing so will eliminate the need for Keystone correction and provide the best
image quality. (See pages 31 to 33.)
Standard Setup (Front Projection)
Place the projector at the required distance from the screen according to the desired picture
size. (See pages 19 and 20.)

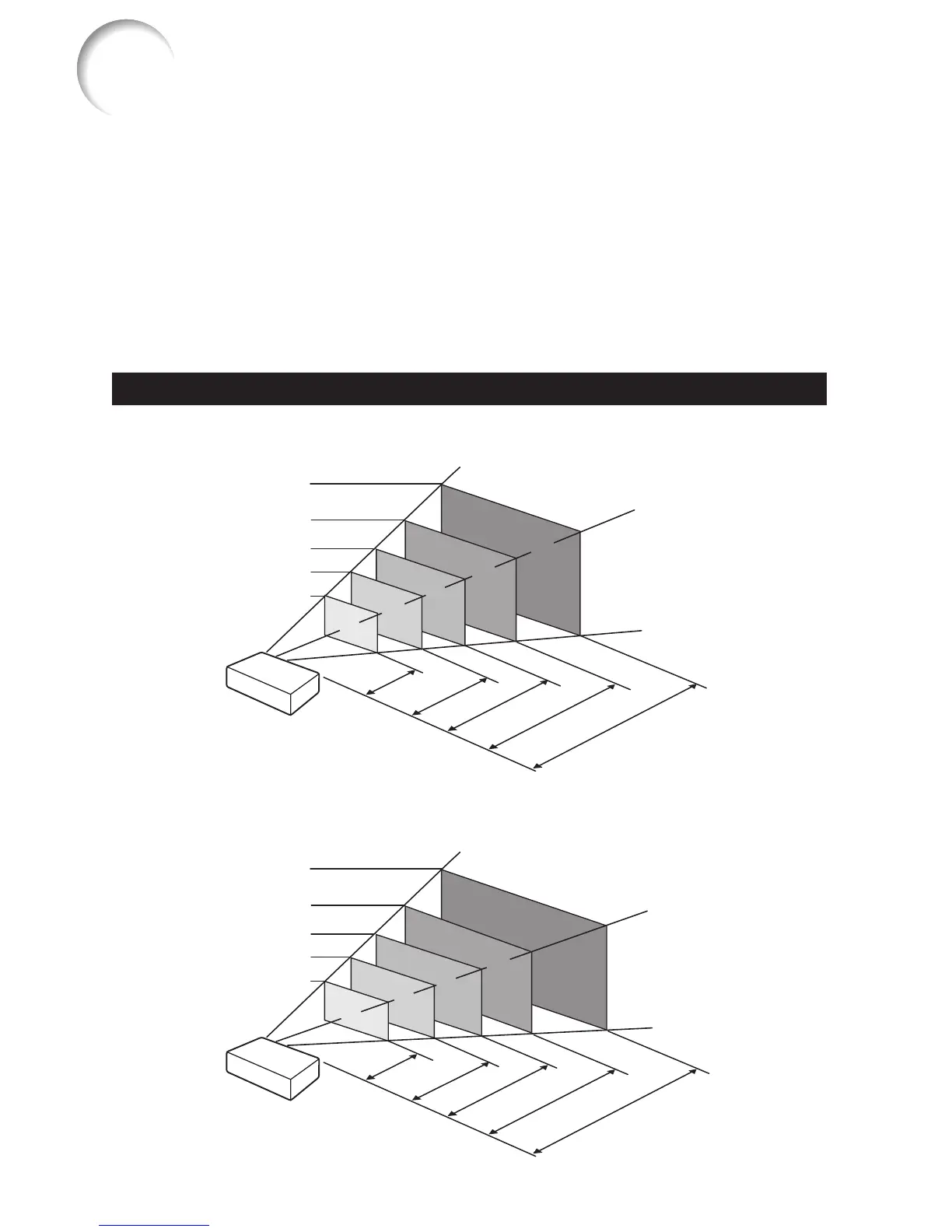

Indication of the Projection Image Size and Projection Distance
XG-SV200X
(Example: 4:3 Signal Input (Normal Mode))
500" (1270 cm)
200" (508 cm)
100" (254 cm)
80" (203 cm)
60" (152cm)
5'11"-11'11"
(1.8 m – 3.6 m)
7'11"-15'10"
(2.4 m – 4.8 m)
Projection
Distance
9'11"-19'10"
(3.0 m – 6.0 m)
19'10"-39'8"
(6.0 m – 12.1 m)
49'6"-99'2"
(15.1 m – 30.2 m)
Picture Size
400"×300"
(1016 cm × 762 cm)
160"
×
120"
(406 cm
×
305 cm)
80"
×
60"
(203 cm
×
152 cm)
48"
×
36"
(122 cm
×
91 cm)
64"
×
48"
(163 cm
×
122 cm)
XG-SV100W
(Example: 16:10 Signal Input (Normal Mode))
500" (1270 cm)
200" (508 cm)
100" (254 cm)
80" (203 cm)
60" (152cm)
6
'
5
"
-12
'
10
"
(1.9 m – 3.9 m)
8'6"-17'1"
(2.6 m – 5.2 m)
Projection
Distance
10'8
"
-21'4
"
(3.2 m – 6.5 m)
21'4
"
-42'8
"
(6.5 m – 13.0 m)
53'3
"
-106'8
"
(16.2 m – 32.5 m)
Picture Size
424"×265"
(1077 cm × 673 cm)
170"
×
106"
(431 cm
×
269 cm)
85"
×
53"
(215 cm
×
135 cm)
51"
×
32"
(129 cm
×
81 cm)
68"
×
42"
(172 cm
×
108 cm)
■
