29
Basic
Operation

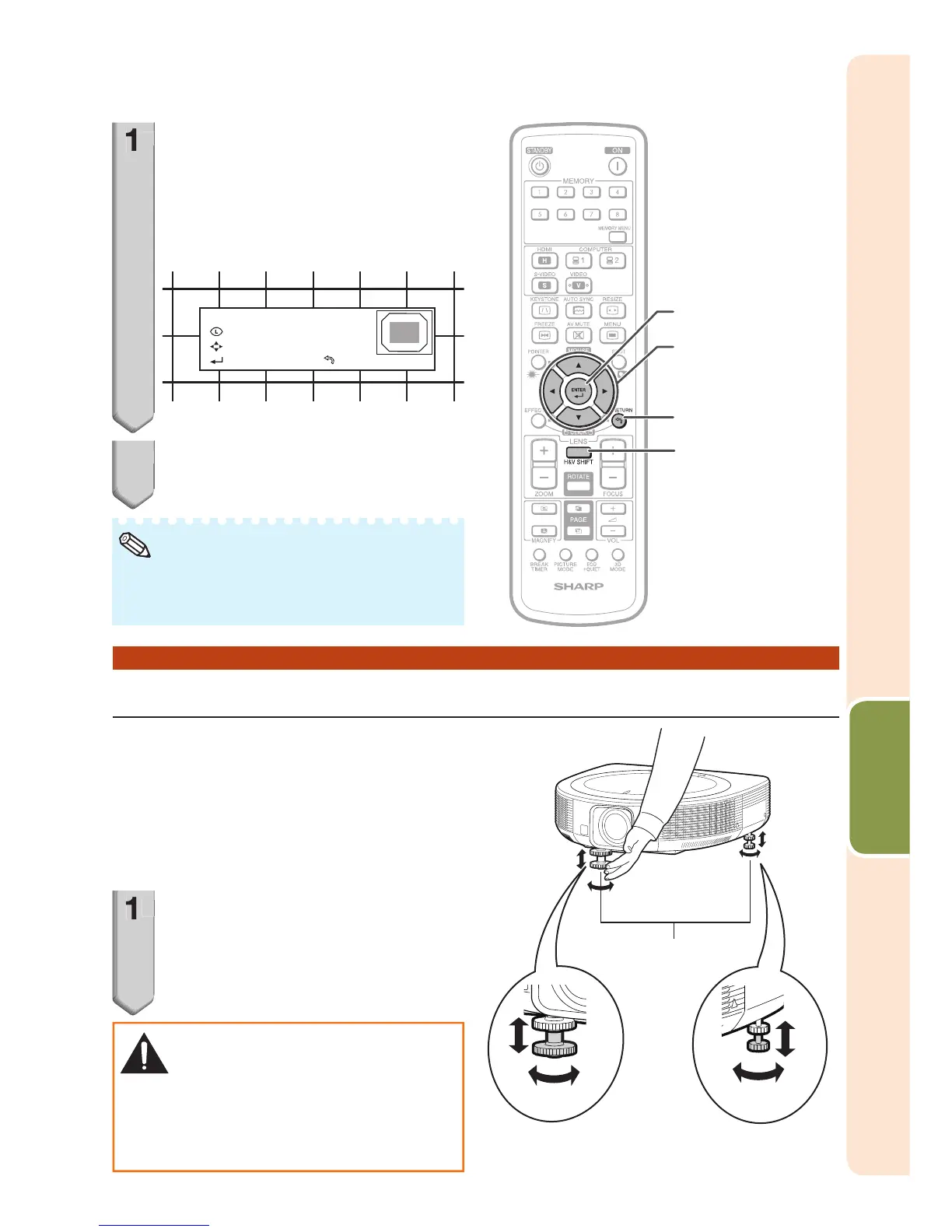

Using the Adjustment Feet
When the position of the projected image cannot be
adjusted with the lens shift function, use the
adjustment feet to adjust the projected angle.
The height of the projector can be adjusted using the
adjustment feet when the screen is located higher
than the projector, the screen is inclined or when the
installation site is slightly inclined.
Install the projector so that it is as perpendicular to
the screen as possible.
1
Rotate the adjustment feet to
adjust the projected angle.
The projector is adjustable up to
approximately 9 degrees (front) and
approximately ±2 degrees (rear) from the
standard position.
Warning!
Do not hold the lens and lens cover when
projector angle is adjusted.
Use caution not to pinch your fi nger in the
space between the adjustment foot and the
projector when the projector angle is lowered.
1
1
Press H&V SHIFT on the remote
control.
Pressing ENTER on the projector or on
the remote control displays the test
pattern. Checking the test pattern is useful
for more accurate adjustment.
ROn-screen display
END
LENS SHIFT
TESTPATTERN LENS CENTER
LENS SHIFT
2
Press P, R, O or Q on the
projector or the remote control
to adjust the image position.
When RETURN is pressed, the lens shift
reset screen is displayed. Lens shift can be
reset to factory default with this screen.
Note
1
2
Adjustment feet
Up
Up
Down
Down
ENTER button
Adjustment buttons
(P/R/O/Q)
RETURN button
H&V SHIFT button
