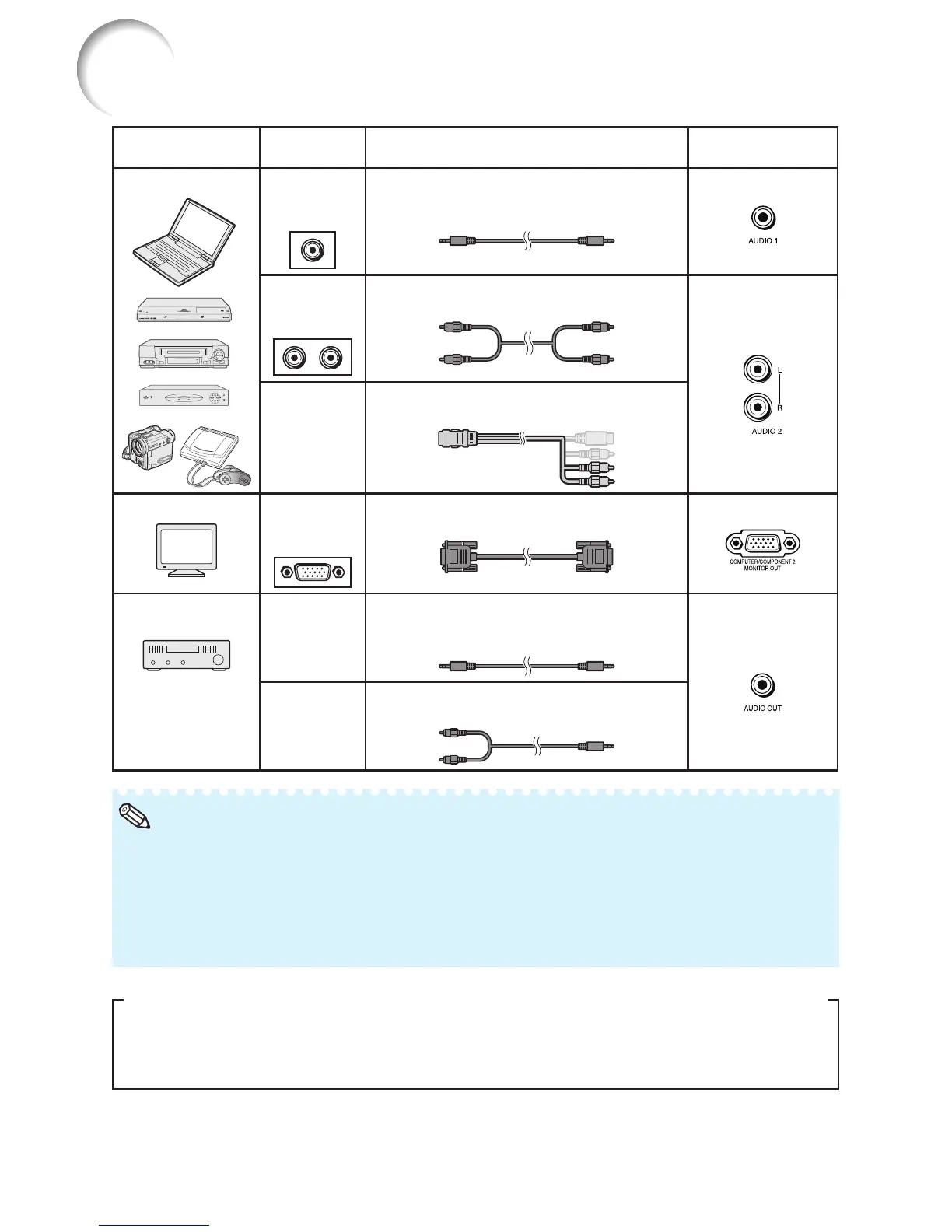

Connecting the Projector to Other Equipment (Continued)
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Audio equipment
ø3.5 mm
audio output
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
AUDIO 1
RCA audio
output
terminal
RCA audio cable (commercially available)
AUDIO 2
Audio
output
terminal
Cables for a camera or a video game
Monitor RGB
input
terminal
RGB cable (supplied or commercially
available)
MONITOR OUT
Amplifi er
ø3.5 mm
audio input
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
AUDIO OUT
RCA audio
input
terminal
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
You can also use the MONITOR OUT terminal as the COMPUTER/COMPONENT 2 terminal. To use
this terminal as an output terminal, set “COMPUTER2 Select” to “Monitor Output” before connecting
the external equipment. (See page
56.)
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
You can select “Audio 1”, “Audio 2” or “HDMI” for “Audio Input” in the “Audio” menu. (See page
51.)
RGB signals and Component signals can be output to the monitor.
•
•
•
•
Note
This projector is able to process the following signals when connected to HDMI
equipment:
Video signal: For details, see “Digital Support” in the list of “Compatibility Chart” on page 75.
Audio signal: Linear PCM audio
Sampling frequency: 48kHz/44.1kHz/32kHz
•
•
•
