– 3 –
XL-30H/30W

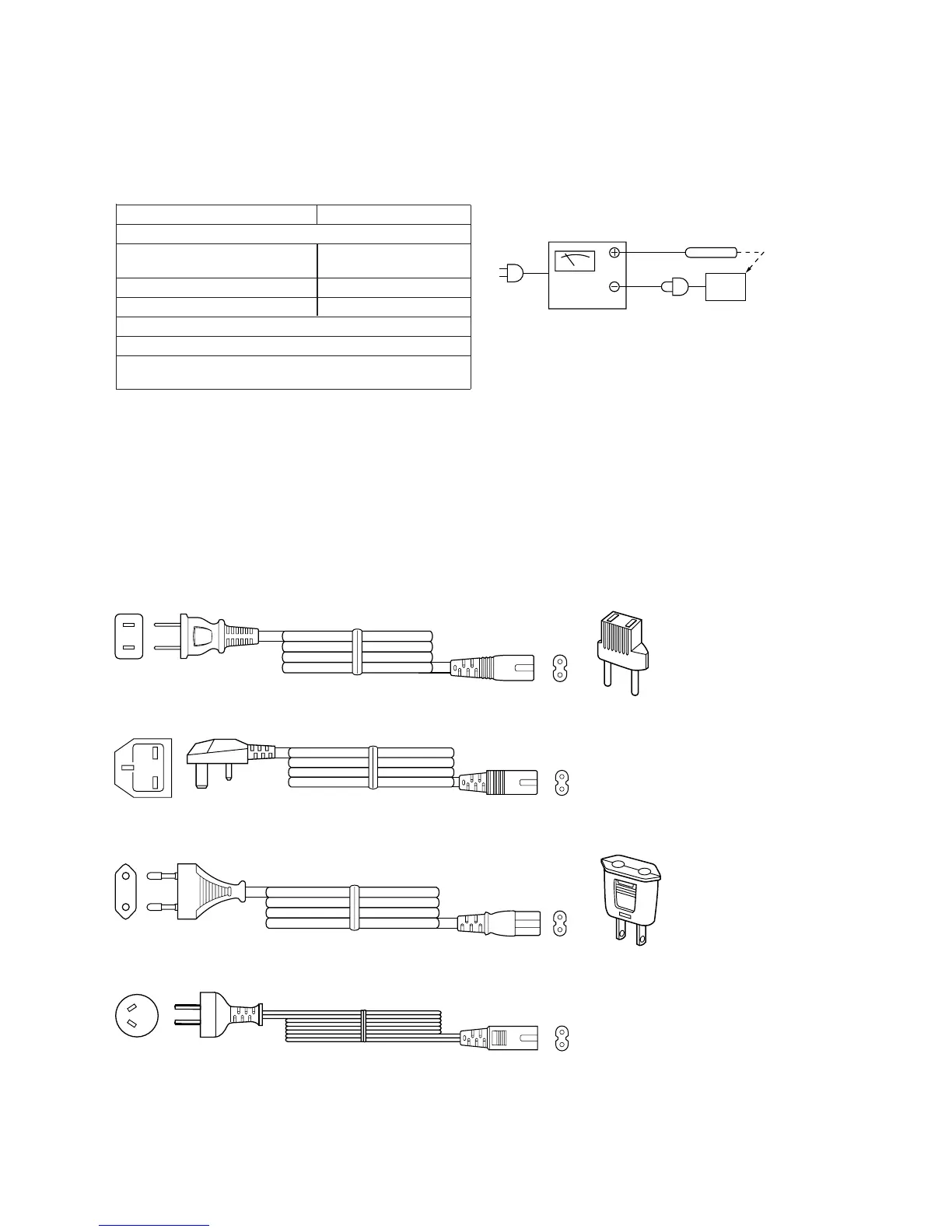

IMPORTANT SERVICE NOTES (XL-30H FOR U.K. ONLY)
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzer sounds.
VOLTAGE SELECTION (FOR XL-30W)
The voltage selector is located on the rear panel of the unit. If adjustment is necessary, use a screwdriver in order to turn the selector
in either direction until the correct voltage figure is displayed in the window.
QACCE0001SJ00
QACCA0001SJ00
QACCB0001SJ00
QPLGA0253AFZZ
PROBE
AC
OUT
UNIT
SHORT-CIRCUT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW TERMINAL
WITHSTANDING
VOLTAGE TESTER
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR (FOR XL-30W)
QPLGA0250AFZZ
QACCL0002AW00
