8
PREPARATION FOR USE
Connect each speaker wire to the SPEAKER termi-
nals as shown.
Use speakers with an impedance of 4 ohms or
more.
Use of speakers with an impedance less than 4
ohms may damage your unit.
Notes:
● Connect the wire with the white line to the minus
(-) terminal and the plain wire to the plus (+) ter-
minal.
● Do not mix the right channel and left channel
wiring when connecting the speakers to the unit.
● Do not let the bare speaker wires touch each
other as this may damage the amplifier and/or
speakers.
● Do not allow any objects to fall into or to be placed
in the bass reflex ducts.
● Unplug the AC power lead from the AC socket
before connecting or disconnecting any com-
ponent.

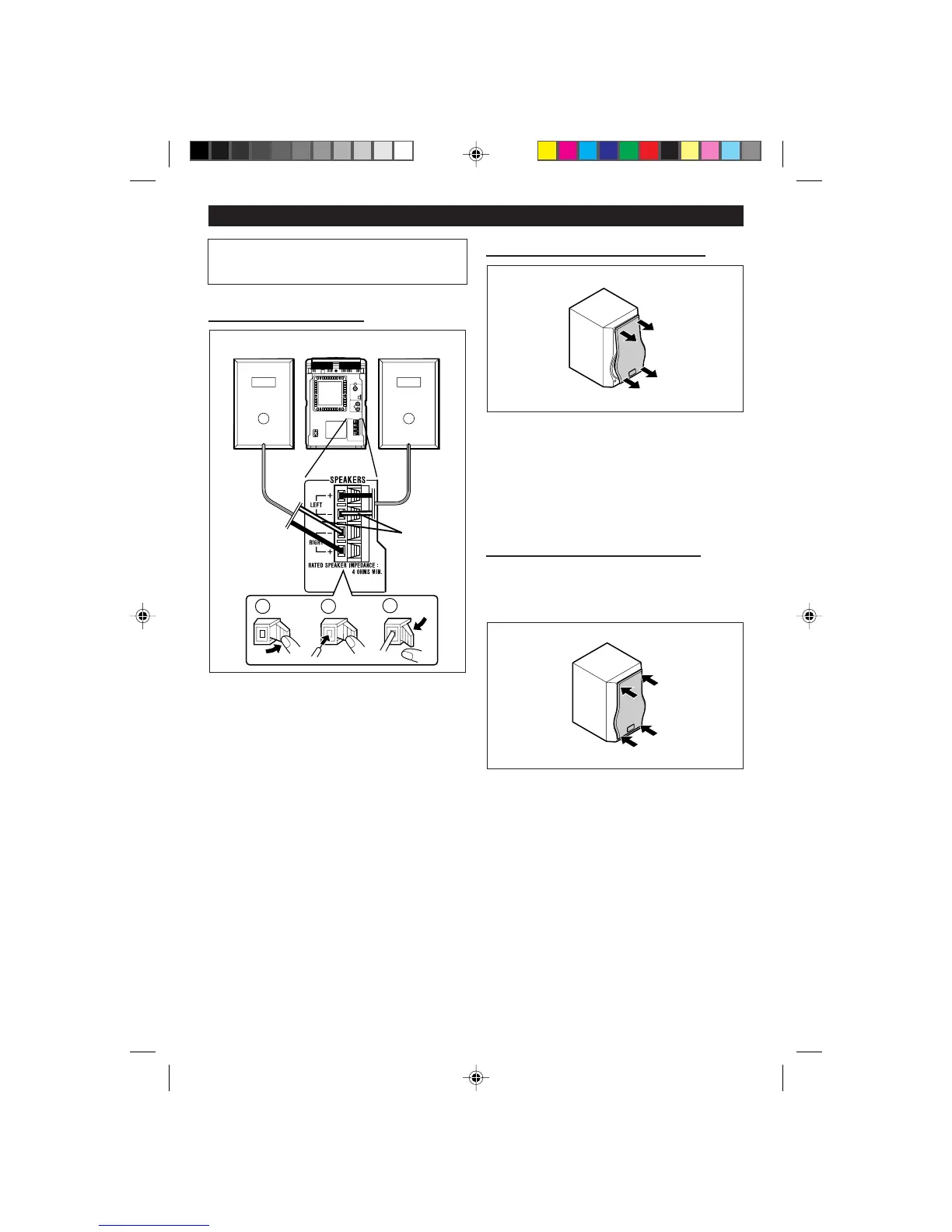

■ Speaker connection
2
1
3
Right speaker
Left speaker
White
line
■ Removing the speaker grilles
1 Remove the lower part of the speaker grille first.
2 Remove the upper part of the speaker grille.
Caution:
When the speaker grilles are removed, the speaker
diaphragms are exposed. Make sure nothing comes
into contact with the speaker diaphragms.
■ Mounting the speaker grilles
Fit the four posts on the speaker grille into the
mounting holes and push them lightly with the palm
of your hand to secure.
*60H/70H(SUK)08-12 00.1.5, 11:39 AM8
