Sharp XL-MP130 Service Manual

XL-MP130
16

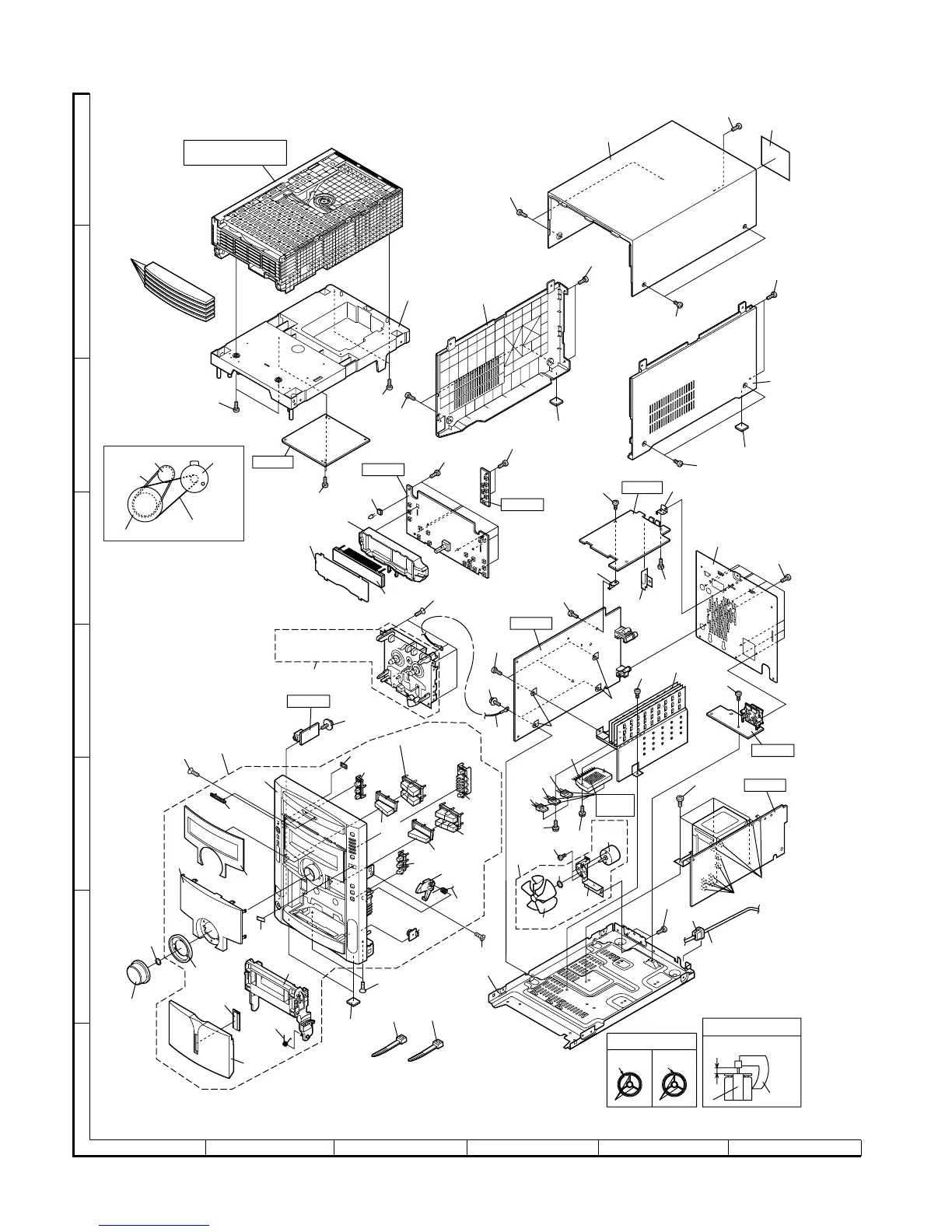

[13] CABINET PARTS
Note: Only the unit and consumale parts are supplied as parts supply for the Tape mechanism.
A
B
C
D
E
F
G
H
1
23456
FF/REW
Clutch
FF/REW
Belt
Main Belt
Flywheel
BELT CONNECTION
Motor
FAN POSITION.
CAUTION : RING SPRING ASSY.INTO
FAN RIB
RING GAP
FAN RIB
RING GAP
MOTOR.
AFTER FULLY INSERTED THE FAN TO
CAUTION : MUST VISUAL CHECK
OK
NG
MOTOR BRACKET.
GAP IS 4.9 mm BETWEEN FAN AND FAN
( FOR REFERENCE ONLY )
4.9mm
FAN BLADE
FAN MOTOR BRACKET.
Silicon
Grease
CD CHANGER
MECHANISM UNIT
FL701
IC853
IC852
IC851
IC901
(M971)
PWB-D
PWB-A2
PWB-A4
PWB-C
PWB-A1
PWB-B2
PWB-A3
PWB-B1
206x5
608x2
608x2
608x2
613x2
607x2
607x6
613x2
613x2
613x2
610x4
614x3
603x2
613
613
613
612x4
611x2
604x3
606x2
615x2
602
605x2
613x9
613
613
609x2
609x2
609
217
208
209
220
219
218
223
220
205
228
201
220x2
229
203
211
214
201-1
201-2
201-3
201-4
201-5
201-6
201-7
201-8
201-9
201-10
201-11
201-12
201-13
201-14
201-15
201-16
201-17
201-18
201-19
202-1
202-2
202-4
202-3
201-20
201-21
226
221
207
213
224
213
227x2
227x2
202
216
215
225
204x6
204x4
610
610
602
212
212-1, 212-2, 212-3,
212-4,
212-5, 212-6,
212-8
