Sharp XR-1X Service Manual

22
XR-1X

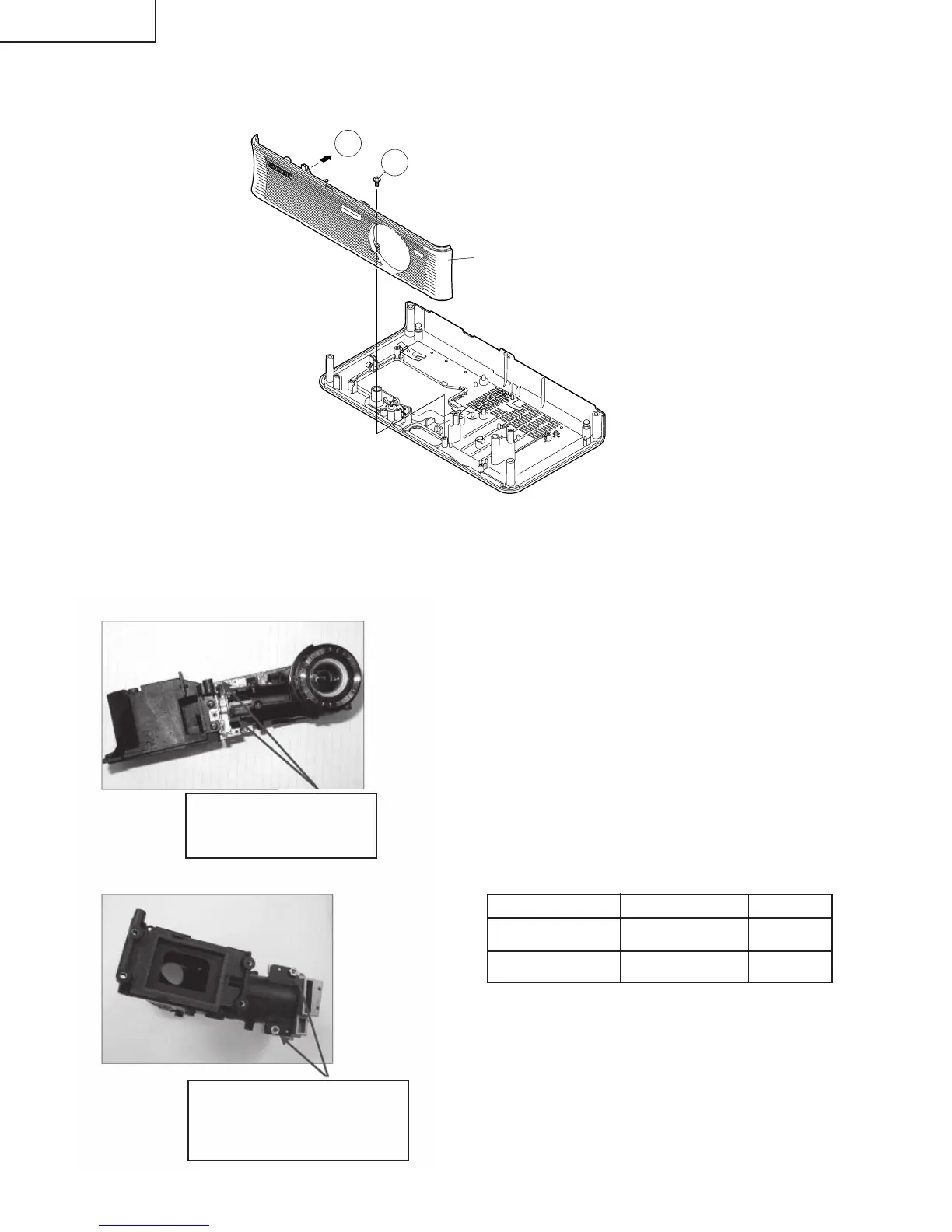

7. Removing the front body
7-1. Remove the front body fixing screw.
7-2. Remove the lead wire of the wire holder and detach the front body.
7-2
7-1
Front body
● Solution when screws for the optical mechanism unit are stripped
If the screw (LX-BZA507WJFN) is stripped during servicing, discard the screw (LX-BZA507WJFN) and secure with
the screw (XBBS92506000) and the nut (XNESN25-02000).
Part No. Description Cord
XNESN25-02000 Nut AB
XBBS925P06000 Screw AA
Screw:LX-BZA057WJFN
Screwtorque:
0.20+/-0.03Nm
Nut:M2.5(XNESN25-02000)
Screw:XBBS925P06000
Screwtorque:
0.29+/-0.03Nm
2. Solution when screws are stripped
1. Under ordinary conditions
