1 XV-ClE

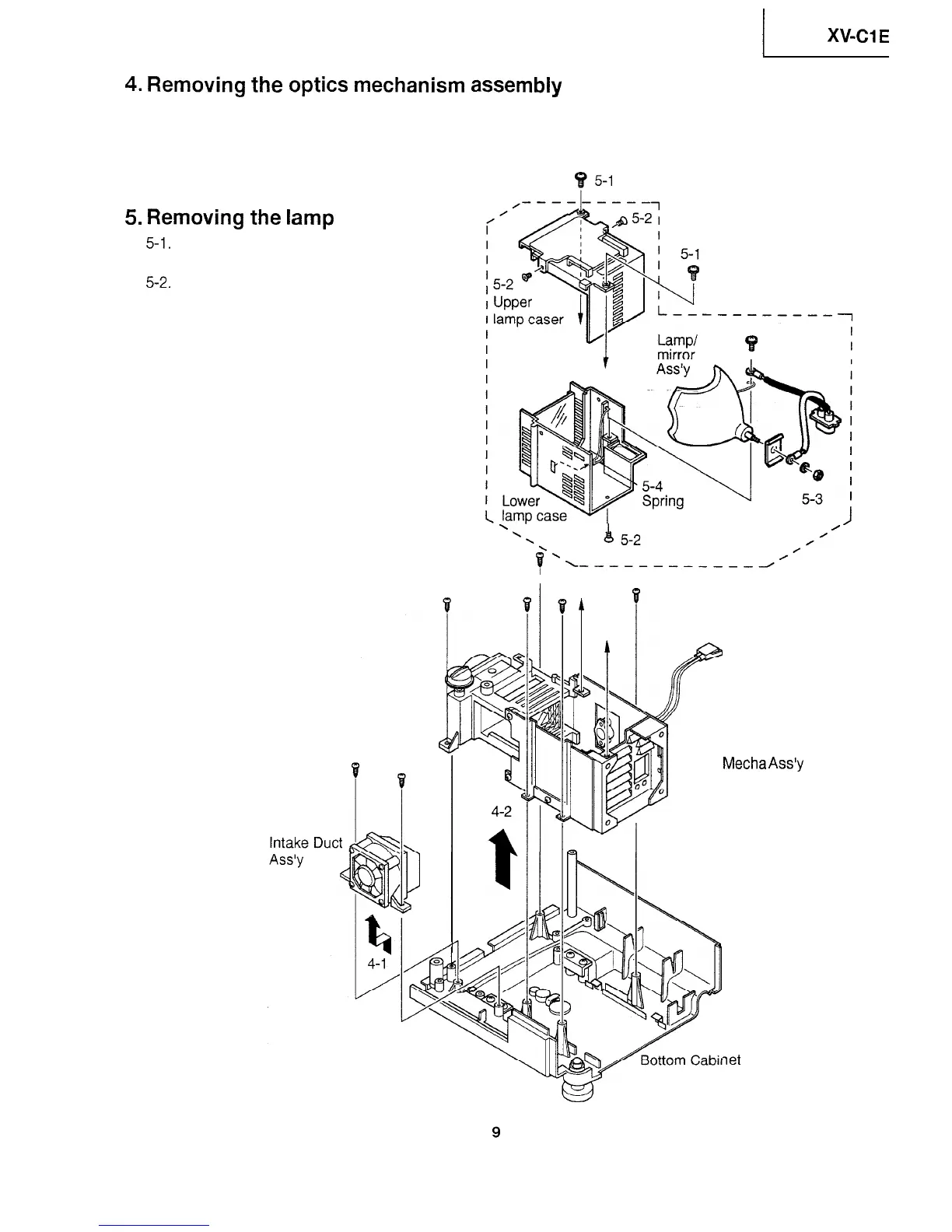

4. Removing the optics mechanism assembly
4-l. Remove the two screws off the intake duct assembly. Detach the intake duct assembly from the bottom
cabinet.
4-2. Remove the five screws off the optics mechanism assembly. Detach the assembly from the bottom cabinet.
5.
Removing the lamp
5-1. Remove the two lock screws off the lamp/cage
module unit.
5-2. Remove the three countersunk lock screws off
the upper and lower lamp cases.
5-3. Remove the lock screw and the nut off the
lamp terminal.
5-4. Release the lamp lock spring off the hook
below the lower lamp case. Take out the lamp/
mirror assembly.
Lamp/cage module unit
--------_
1
5-3
0
.
\
h 5-2
/
\p-------------J”
Optics Mecha Ass’y
let Ass’y
