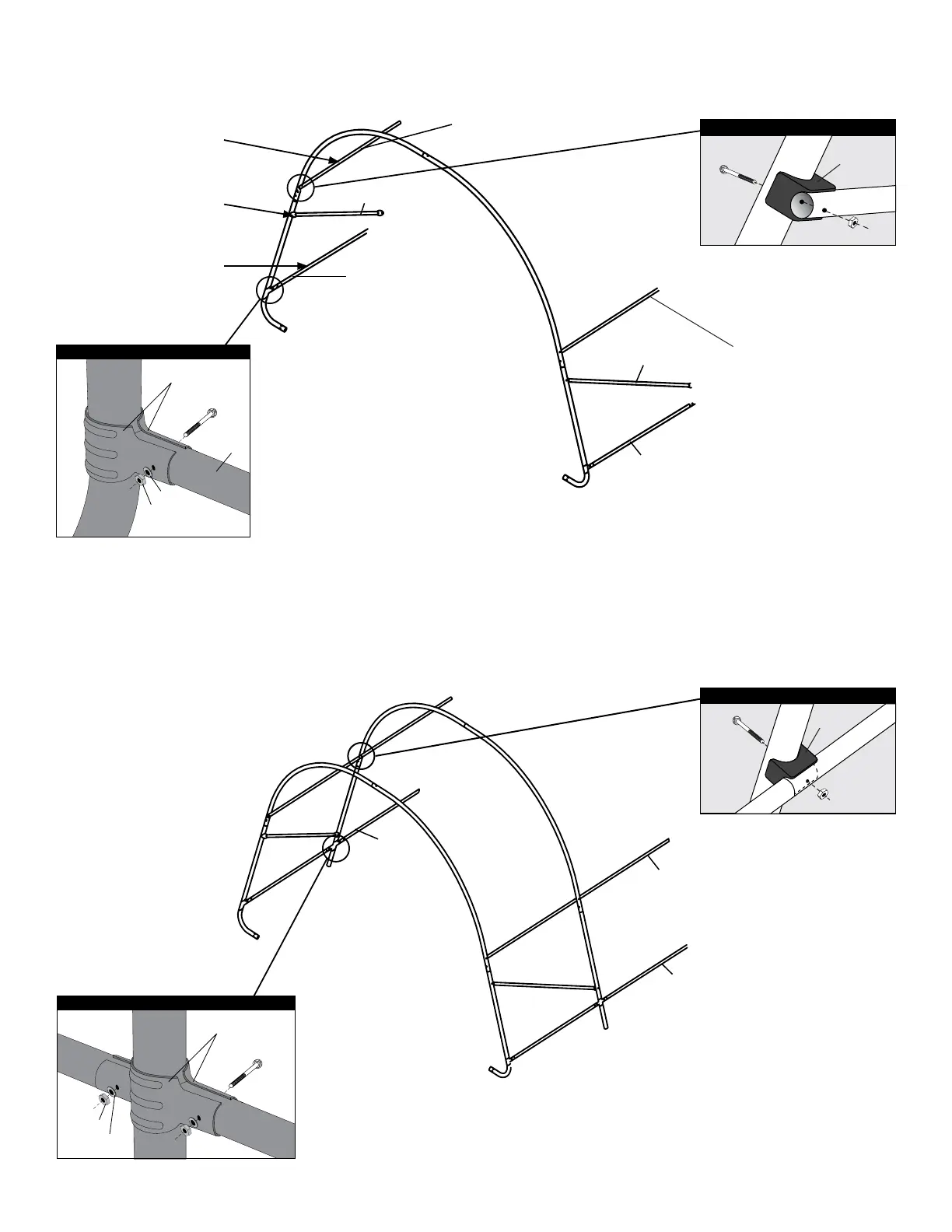

3. ATTACH CROSS RAILS AND WIND BRACES
4. ATTACH MIDDLE RIBS TO END RIB
10205
10110
10110
10205
020230
10110
10110
Repeat Step 4 for the remaining middle ribs.
Repeat Step 3 for the nal end rib.
CROSS RAILS
WIND BRACES
COvER CROSS RAILS
End Rib ShelterLock
™
Assembly
10210
01010
800260
020230
Use 020230 to connect
Front end rib.
Use 020231 to connect
Rear end rib.
End Rib Cross Rail Clamps
10115
10110
10112
01011
01010
Middle Rib Cross Rail Clamps
10115
10111
01010
01011
ShelterLocks
™
and Cross Rail
Poles attach to inside of frame.
ShelterLocks
™
and Cross Rail
Poles attach to inside of frame.
Middle Rib ShelterLock
™
Assembly
10210
800260
01010
