GAME SPECIFICATIONS AND INSTALLATION
Shelti Eye
2
Manual 11
Attachment of the Chain to the Wall.
Step 1: Screw the eye bolt (D) to the dart game. Loop the chain through the eye bolt. Use a machine screw (E), two hex nuts
(F), and a #10 flat washer (G) to fasten the chain to itself. See Figure 4.
Step 2: Fasten to the wall according to the appropriate wall “type” instructions A, B, or C.

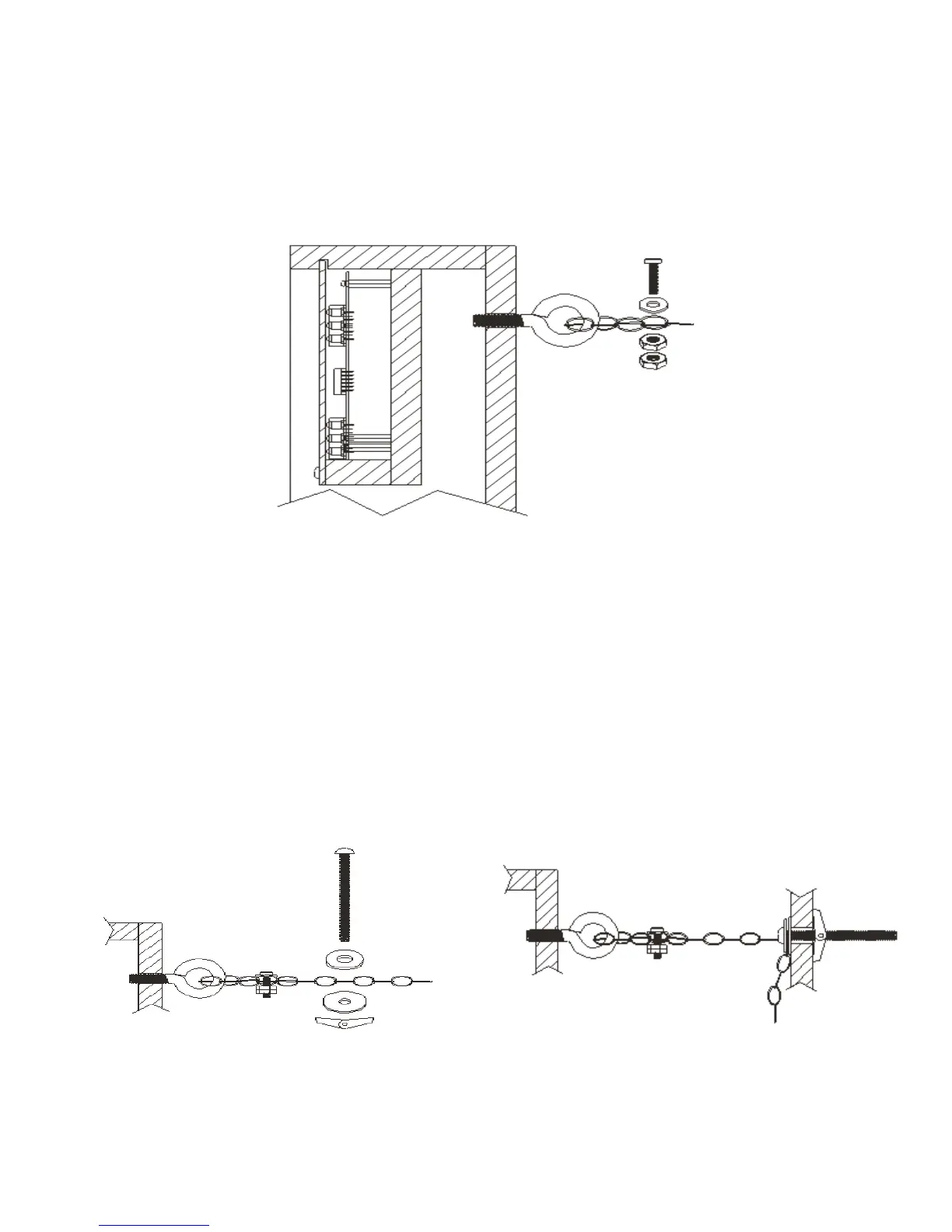

Figure 4 - Eye bolt and chain fastened to game.
A. Hollow Wall: Plaster, Drywall, etc.
1. With the game in position where it will be played, mark a spot on the wall directly in line with the eyebolt and chain
attachment on the back of the game.
2. Drill a 12.5mm (1/2”) diameter hole at the marked location.
3. Unscrew the wings from the toggle bolt (H). Place a 5/16” USS flat washer (N) on the toggle bolt.
4. Insert the toggle bolt (H) through a loop in the chain a few inches from the end. See Figure 5.
5. Slide a fender washer (R) on the toggle bolt (H) and screw the wings back on.
6. Push the toggle bolt (H) into the drilled hole in the wall.
7. Fasten the toggle bolt (H) tightly until the wings are snug against the back of the wall as shown. Keep the chain as taut as
possible to minimize slack. See Figure 6.
Figure 5 – Toggle bolt close-up Figure 6 - Close-up toggle bolt installed
.
