GAME SPECIFICATIONS AND INSTALLATION
Shelti Eye
2
Manual 12
B. Concrete, Brick, or Stone Wall.
1. With the game in position where it will be played, mark a spot on the wall directly in line with the eyebolt and chain
attachment on the back of the game.
2. Drill a 12.5mm (1/2”) diameter hole 35mm (1-1/4”) deep at the marked location.
3. Pound the wall anchor (K) into the wall with a hammer until flush with the wall surface.
4. Screw the eyebolt (J) into the wall anchor (K) until it is tight.
5. Thread the chain through the eyebolt and attach it to itself with a machine screw (E), a #10 flat washer (G), and two hex nuts
(F) as shown. Keep the chain as taut as possible to minimize slack. See Figure 6.

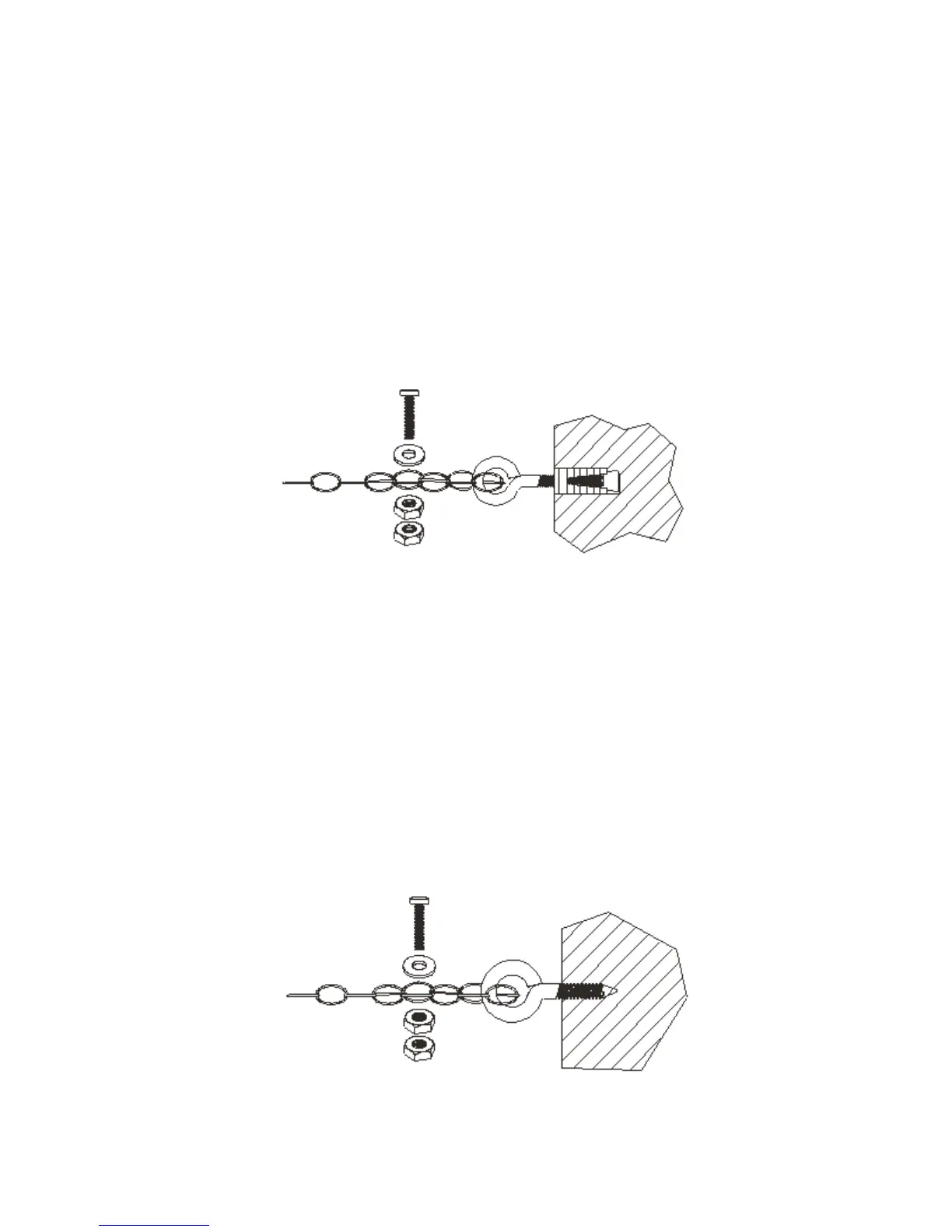

Figure 7 - Fasten to concrete, brick, or stone wall.
. Wood Stud Mounting.
1. With the game in position where it will be played, mark a spot on the wall directly in line with the eyebolt and chain
attachment on the back of the game.
2. Screw the eyebolt into the stud at the marked spot.
3. Thread the chain through the eyebolt and attach it to itself with a machine screw (E), a #10 flat washer (G) and two hex nuts
(F) as shown. Keep the chain as taut as possible to minimize slack. See Figure 7.
Figure 8 - Fasten to wood stud.
