GAME SPECIFICATIONS AND INSTALLATION
Shelti Eye
2
Manual 14

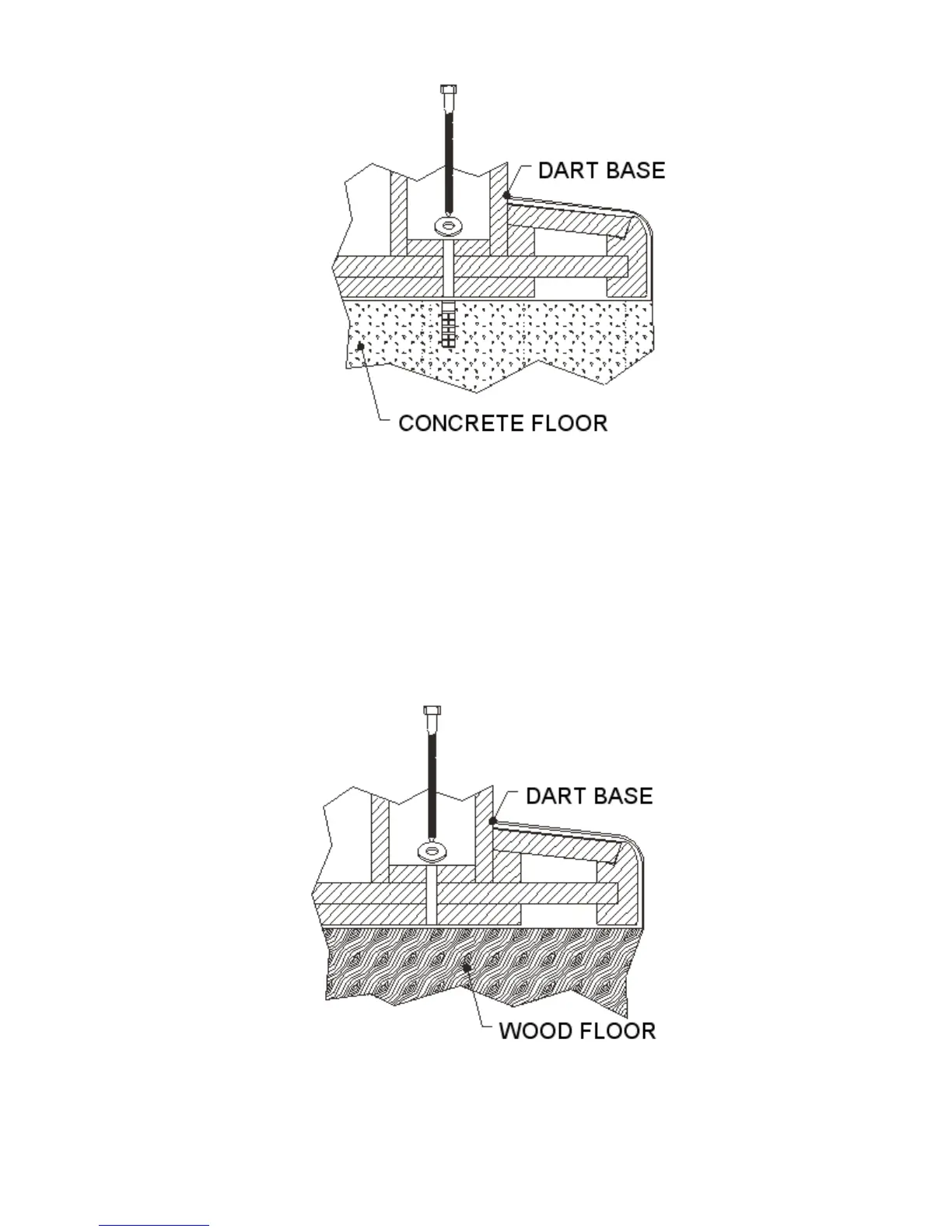

Figure 10 - Fasten to concrete floor.
B. Wood Floor.
1. Position the dart game in its desired location.
2. Secure the game with the washers (N) and lag bolts (M). NOTE: If desired, a 6mm (1/8”) diameter pilot hole may be used to
start the lag bolt. See Figure 10.
3. Tighten the lag bolts (M) until flush with the base.
Figure 11 - Fasten to wood floor.
