CHANGING LEFT SUSPENSION BAR SEAL

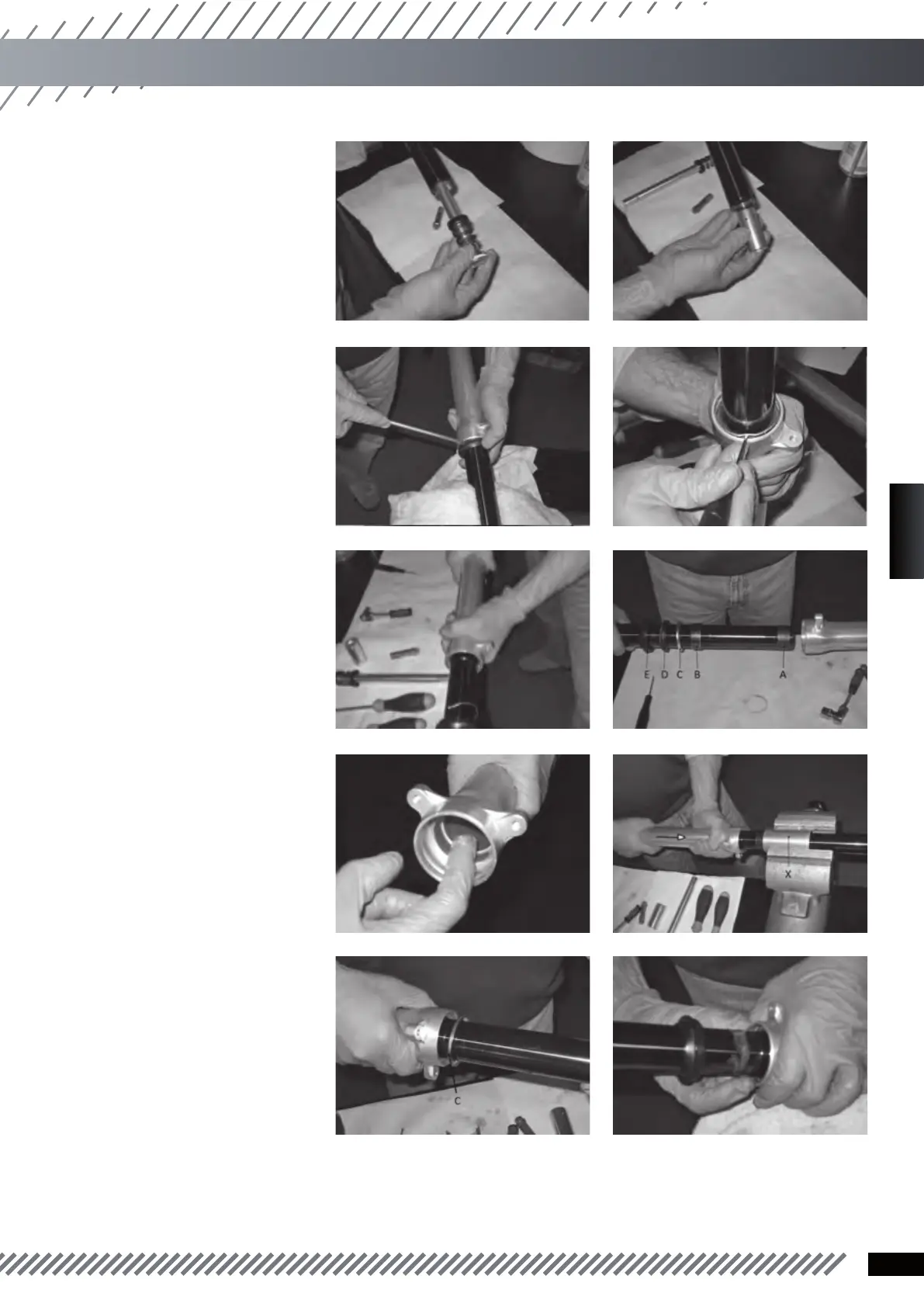

- Fully remove the pumping group.
- Invert the bar and remove the end-of-run
cone.
- Lever the edge of the dust cover and
remove it from its seat on the bar.
- Remove the circlip from its seat.
- Secure the protected bar with the
screw and slide the bottle until it is fully
removed.
- Slide all parts indicated from the tube
and replace part A.
- Grease the sleeve and seal seat before
starting reassembly.
- Place the sleeve on its seat using the
appropriate tools.
- Insert the washer, paying special
attention to place its lip facing upward.
- Grease the tube with special sealing
grease.
