142
ST SERIES

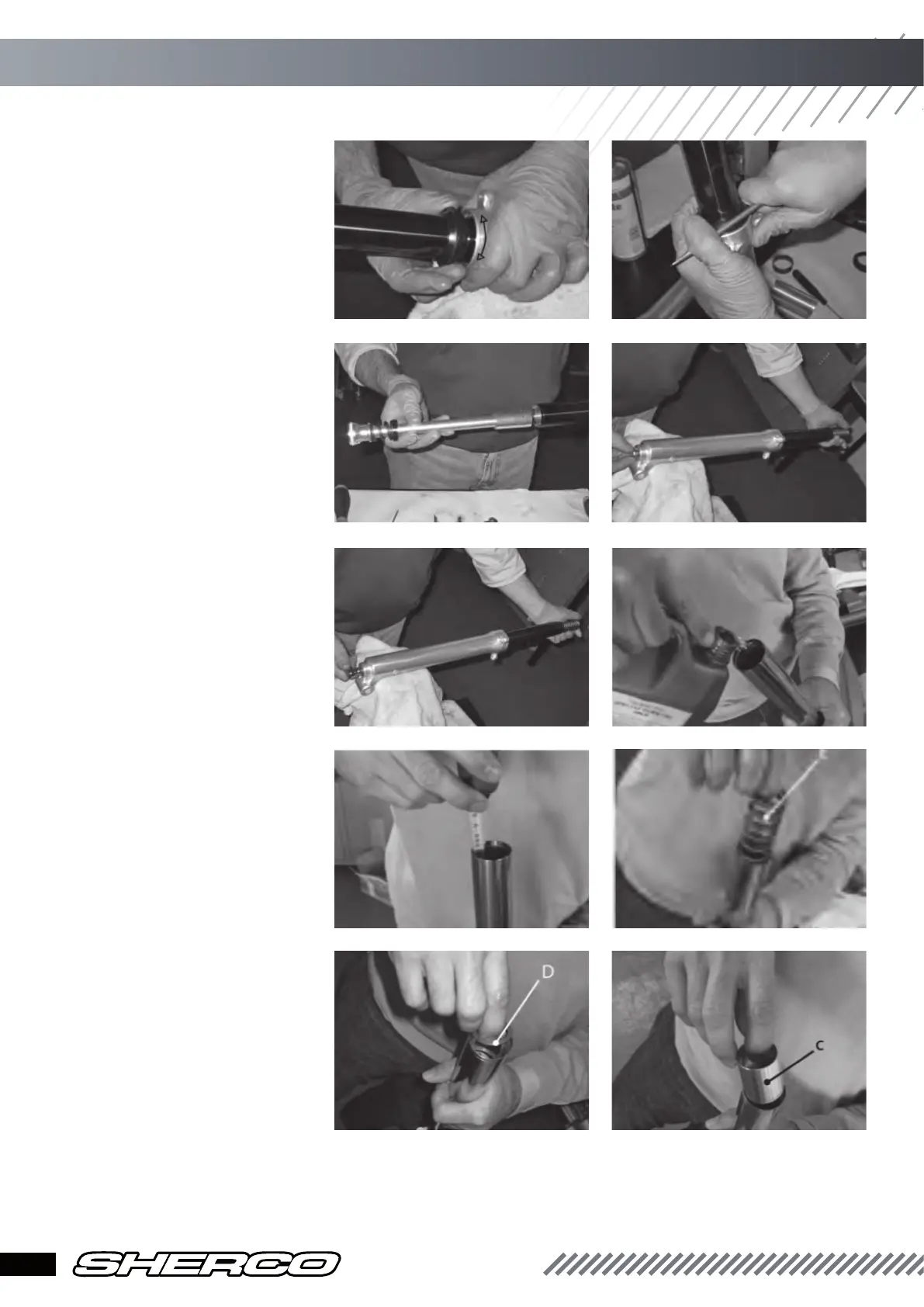

CHANGING LEFT SUSPENSION BAR SEAL
- Slide the dust cover down the bar
turning slightly to fi nd its correct
position on the bottle.
- Insert the pumping group with the end-
of-run cone ready mounted.
- While holding the tube at the end of its
run with the help of the spring within
the bar, fully tighten the pumping
screw.
- Tighten the plug to 23.5--25.5 NM using
a dynamometric spanner.
- Position the bar vertically and pour in
some of the new oil.
- Pump a few times, pushing the tube
to the end of its run. Fill with oil up to
110mm from the brim.
- Insert the spring.
- Insert the separating washer.
- Insert the spacer.
