165
ENGLISH

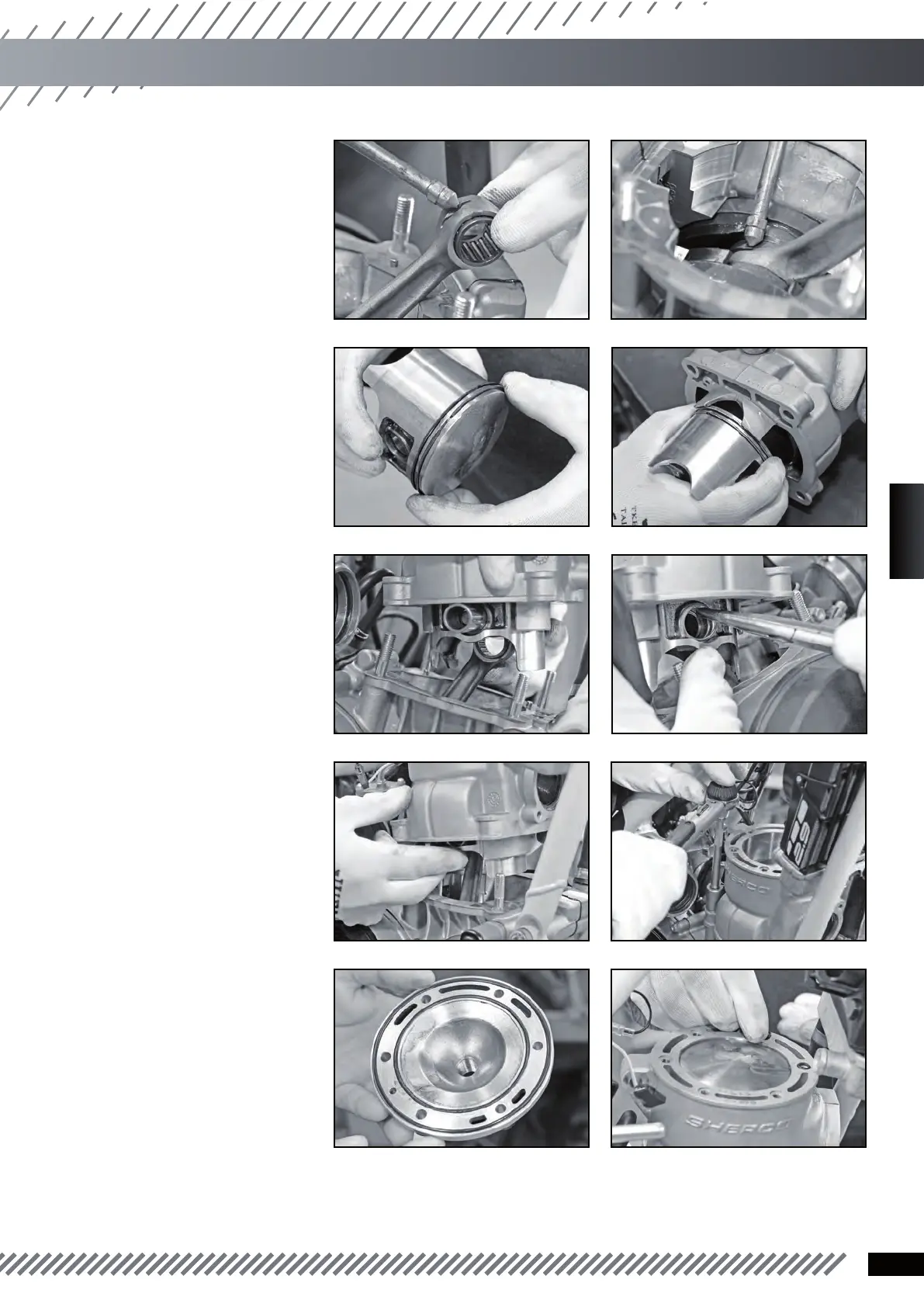

CHANGING THE PISTON
Lubricate the ends of the connecting
rod and the roller bearings.
Check the tolerance between piston
and cylinder. See tolerance table.
Prepare the piston with the compressed
rings to be introduced into the cylinder.
With the piston fi tted into the cylinder,
insert the bolt into the piston without
reaching the connecting rod's
anchoring area.
Align with the connecting rod and
press the piston fully.
Place the piston's securing clips,
making sure they are correctly placed.
Finish placing the cylinder in its fi nal
position and tighten the cylinder's
fastening screws with a dynamometer
at 22NM. Check the height of the
cylinder, piston and transfers.
Prepare the cylinder head and its
corresponding o-ring seals, making
sure they are correctly located in the
grooves.
Place the 6 small o-ring seals.
-
-
-
-
-
-
-
-
-
