Sherwood RX-4010R User Manual

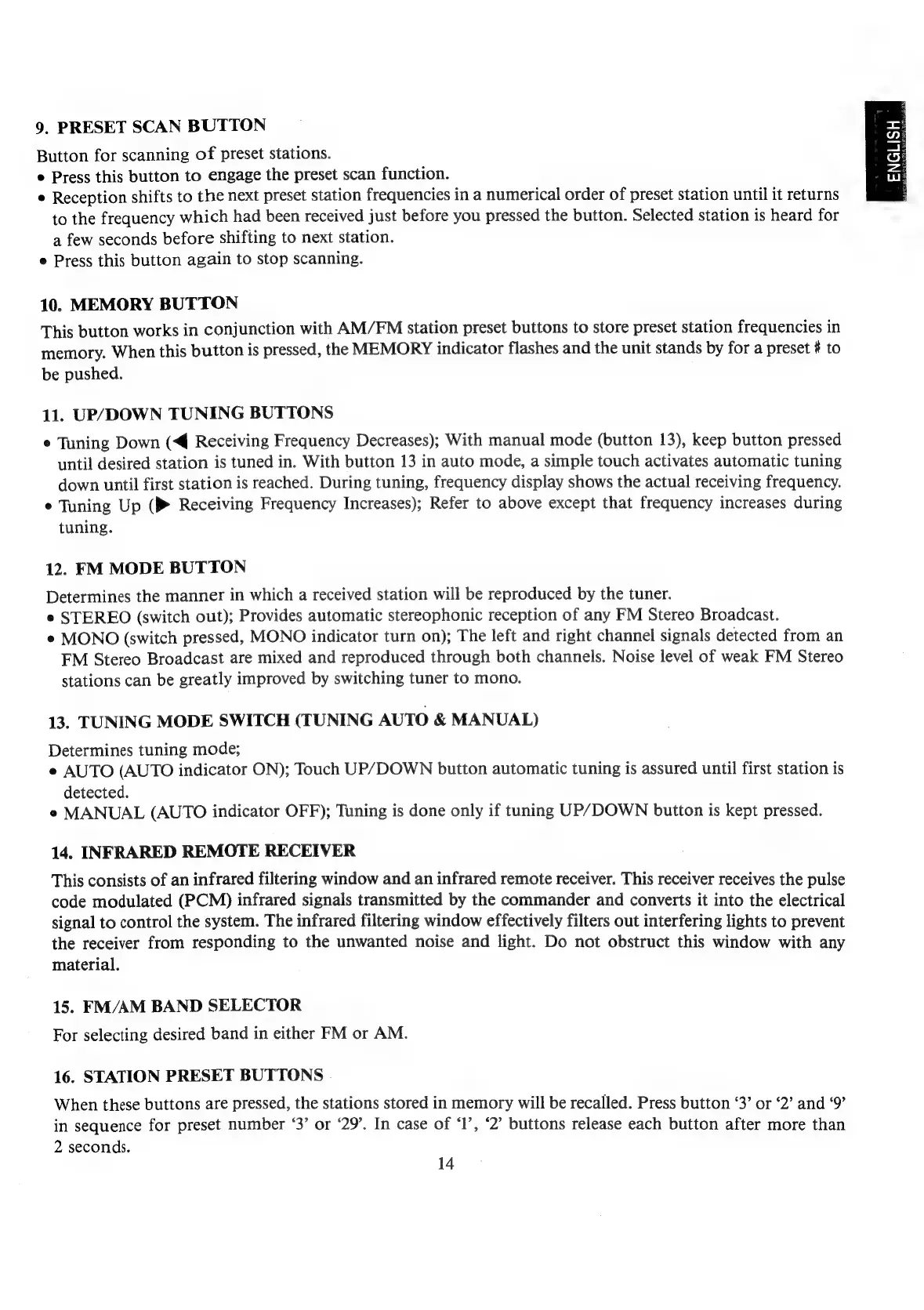

9.
PRESET
SCAN
BUTTON
Button
for
scanning
of
preset
stations.
e
Press
this
button
to
engage
the
preset
scan
function.
Reception
shifts
to
the
next
preset
station
frequencies
in
a
numerical
order
of
preset
station
until
it
returns
to
the
frequency
which
had
been
received
just
before
you
pressed
the
button.
Selected
station
is
heard
for
a
few
seconds
before
shifting
to
next
station.
e
Press
this
button
again
to
stop
scanning.
10. MEMORY BUTTON
This
button
works
in
conjunction
with
AM/FM
station
preset
buttons
to
store
preset
station
frequencies
in
memory.
When
this
button
is
pressed,
the
MEMORY
indicator
flashes
and
the
unit
stands
by
for
a
preset
#
to
be
pushed.
J1.
UP/DOWN
TUNING
BUTTONS
e
Tuning
Down
(@
Receiving
Frequency
Decreases);
With
manual
mode
(button
13),
keep
button
pressed
until
desired
station
is
tuned
in.
With
button
13
in
auto
mode,
a
simple
touch
activates
automatic
tuning
down
until
first
station
is
reached.
During
tuning,
frequency
display
shows
the
actual
receiving
frequency.
°
Tuning
Up
(®
Receiving
Frequency
Increases);
Refer
to
above
except
that
frequency
increases
during
tuning.
12. FM MODE BUTTON
Determines
the
manner
in
which
a
received
station
will
be
reproduced
by
the
tuner.
e
STEREO
(switch
out);
Provides
automatic
stereophonic
reception
of
any
FM
Stereo
Broadcast.
*
MONO
(switch
pressed,
MONO
indicator
turn
on);
The
left
and
right
channel
signals
detected
from
an
FM
Stereo
Broadcast
are
mixed
and
reproduced
through
both
channels.
Noise
level
of
weak
FM
Stereo
stations
can
be
greatly
improved
by
switching
tuner
to
mono.
13.
TUNING
MODE
SWITCH
(TUNING
AUTO
&
MANUAL)
Determines tuning mode;
e¢
AUTO
(AUTO
indicator
ON);
Touch
UP/DOWN
button
automatic
tuning
is
assured
until
first
station
is
detected.
e
MANUAL
(AUTO
indicator
OFF);
Tuning
is
done
only
if
tuning
UP/DOWN
button
is
kept
pressed.
14. INFRARED REMOTE RECEIVER
This consists of an infrared filtering window and an infrared remote receiver. This receiver receives the pulse
code modulated (PCM) infrared signals transmitted by the commander and converts it into the electrical
signal to control the system. The infrared filtering window effectively filters out interfering lights to prevent
the receiver from responding to the unwanted noise and light. Do not obstruct this window with any
material.
15. FM/AM BAND SELECTOR
For
selecting
desired
band
in
either
FM
or
AM.
16. STATION PRESET BUTTONS
When these buttons are pressed, the stations stored in memory will be recalled. Press button ‘3’ or ‘2’ and ‘9’
in sequence for preset number ‘3’ or ‘29’. In case of ‘1’, ‘2’ buttons release each button after more than
2 seconds.
14
