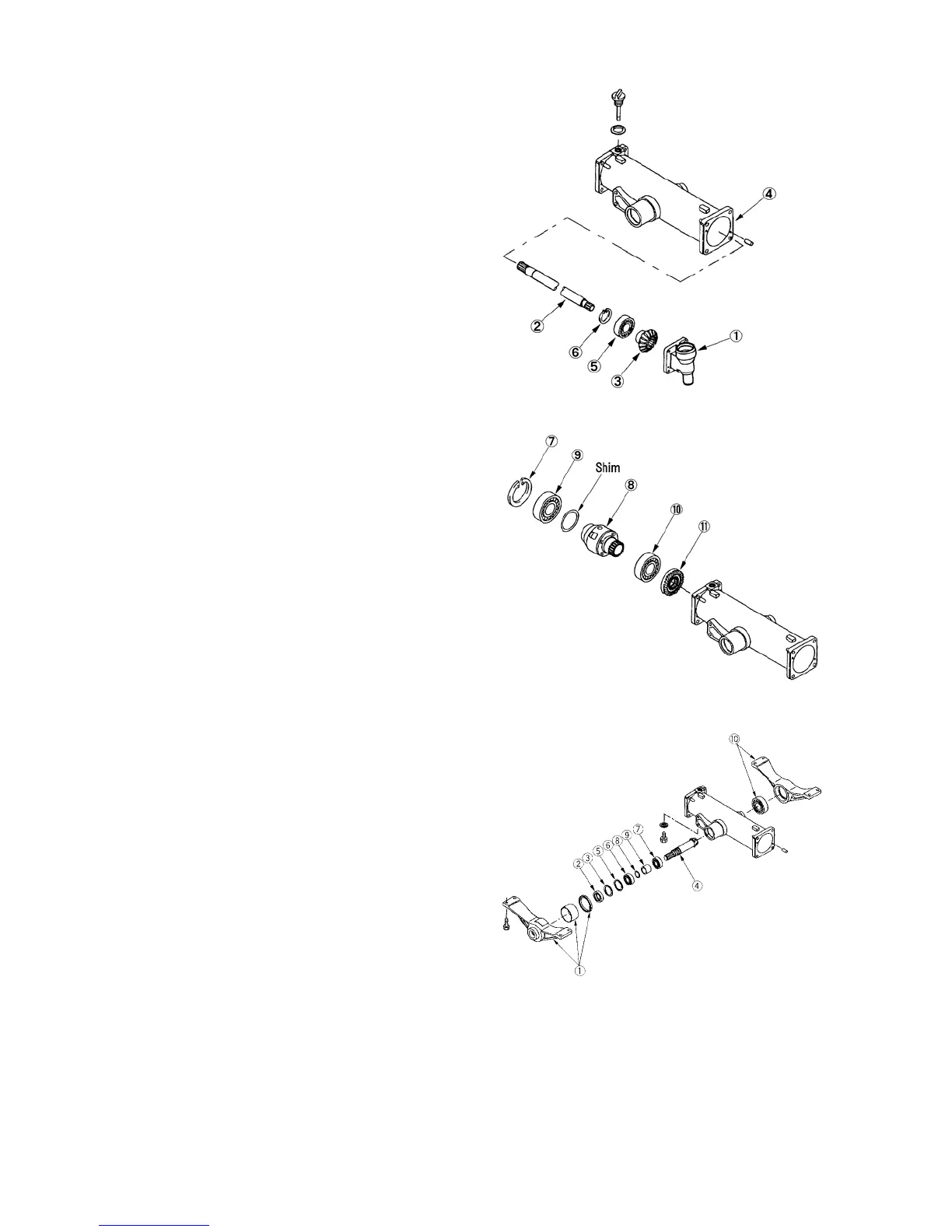

11. Remove the idler mission case ➀ with differential
shaft ➁ from the wheel shaft housing ➃.
12. Remove the differential shaft ➁.
13. Remove the snap ring ➅, bearing ➄ and idler
pinion ➂ from the idler mission case ➀.
14. Remove the opposite each parts as same manner.
15. Remove the snap ring ➆ from in the wheel shaft
housing.
16. Remove the differential assembly ➇ with bearings
➈ and ➉, and ring gear ⑪ from R.H. in the
wheel shaft housing.
NOTE: Note the thickness and number of shims
fitted between differential housing and
bearing.
17. Remove the front and rear bearing holder assembly
➀ and rear bearing holder assembly ➉.
18. Pry the oil seal ➁ by screw driver and discard it.
19. Remove the snap ring ➂ and drive out the drive
pinion ➃ with spacer ➄, bearings ➅ and ➆,
shims ➇ and collar ➈ as a set.
20. Remove the spacer ➄, bearing ➅ , shims ➇ ,
collar ➈ and bearing ➆ from the drive pinion
➃.
NOTE: Note the thickness and number of shims
fitted between front bearing and collar.
