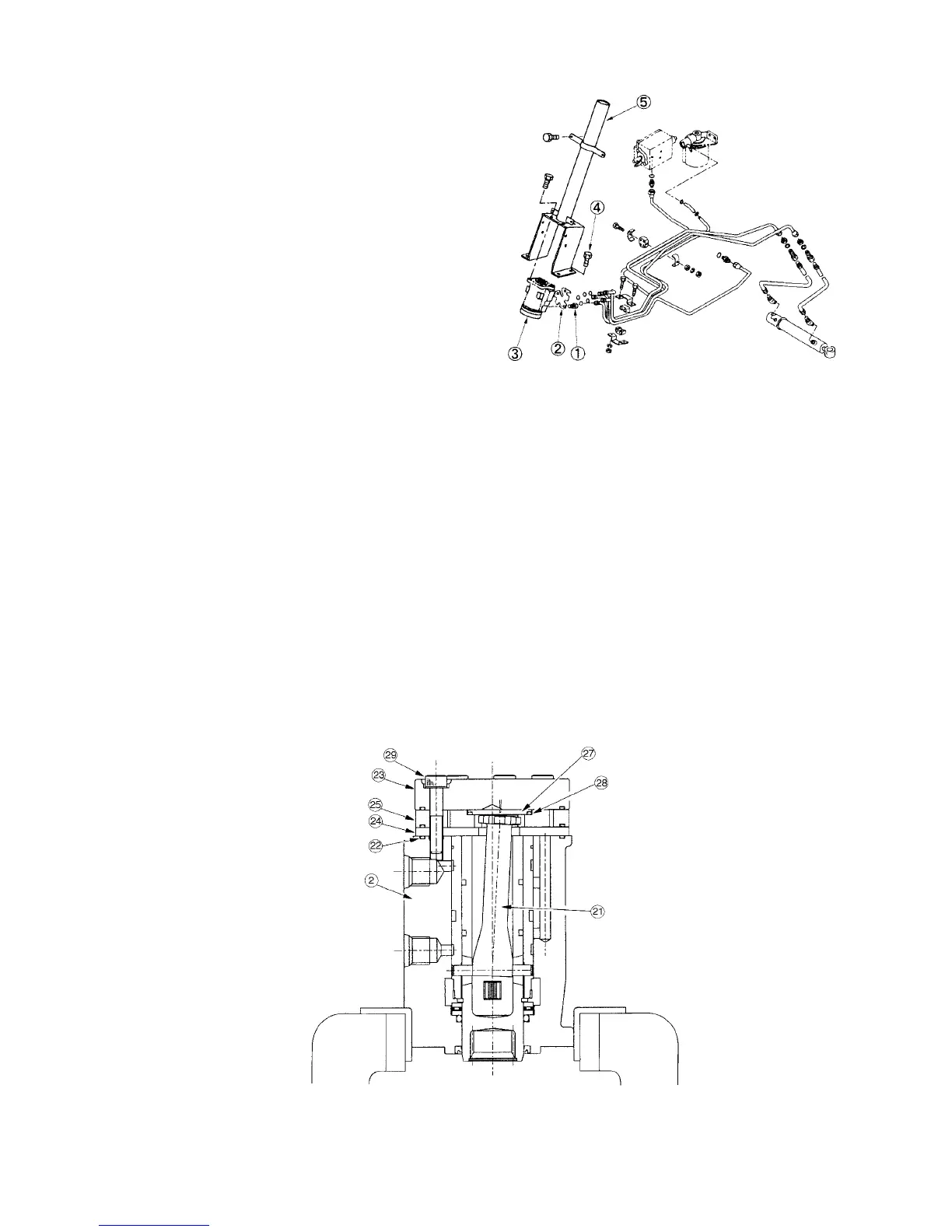

8. Remove the bolts ➀ and plate ➁ from steering
control valve unit ➂.
9. Remove the bolts ➃ and steering control valve
unit ➂ from the steering column ➄.
3) Installation
Reinstall generally follows the disassembly
procedure in reverse and observe the following:
1. Install the oil pipes to the control valve unit by plate
and secure tighten the bolts to 49 ~ 62.8 N·m {5.0 ~
6.4 kgf·m}.
464V
4) Power Steering control Valve Unit
(1) Disassembly – Reference Figure 465V
1. Install the unit in a vice facing the end cap (23) upward.
NOTE: Do not tighten strongly since the internal clearance is small and apt to be deformed.
1. Remove the bolts (29) and end cap (23) with O-ring (22).
2. Remove the gerotor (25) with plate (27) and O-ring (22 and 28).
NOTE: Take care not to fall down the inner rotor from the outer of gerotor.
4. Remove the drive (21).
5. Remove the spacer plate (24).
6. Remove the O-ring (22) from the housing (2).
465V
