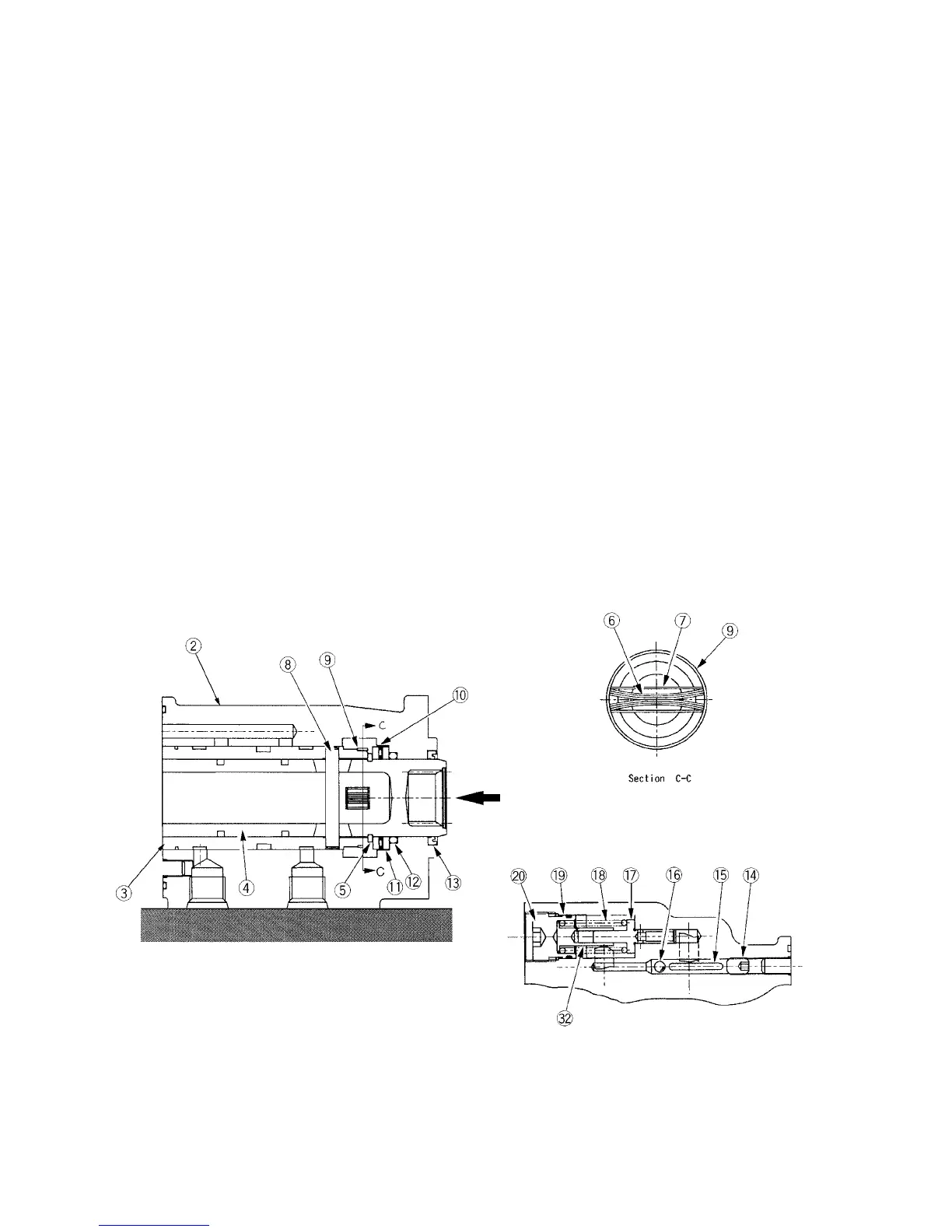

7 Remove the housing (2) from the vice and put it shaft center to horizontally on the clean cloth.
8 rotate the spool (4) and sleeve (3) assembly until the pin (8) to horizontally. Push and slide out the spool and sleeve
assembly by thumbs from the inner spline side ,and remove them from the housing (2).
NOTE: Take care the sleeve (3) not to bites into the housing (2) while remove the spool and sleeve assembly.
9. Remove the retaining ring (9) and pin (8) from the spool and sleeve assembly.
NOTE: Use the proof glasses for prevent eyes by jump out the centering spring.
10. Push a little the spool (4) to centering spring side, and remove the centering springs (6) and flat springs (7) from the
spool (4).
11. Remove the sleeve (3) from the spool (4) while rotate the sleeve.
NOTE: Do not remove the retaining ring (5) from the spool.
12. Remove the bearing races (11), thrust needle bearing (10) and oil seal (12) from the housing (2).
13. Remove the dust seal (13) by screw driver form in the housing (2).
14. Remove the retainer screw (14), retainer pin (15) and ball (16) from in the screw hole of the housing (2).
NOTE: Do not remove the relief valve from the housing unnecessary. If removed, need adjust the relief pressure
after installed on the tractor.
