3-3 Power Steering System
★Caution:
1. Never disassemble the Power steering control valve unit during the claim warranty term.
If it is disassembled, claim is not accepted.
2. If disassembly is unavoidably required, the power steering control valve unit should be
handled vary carefully since it is finished precisely.

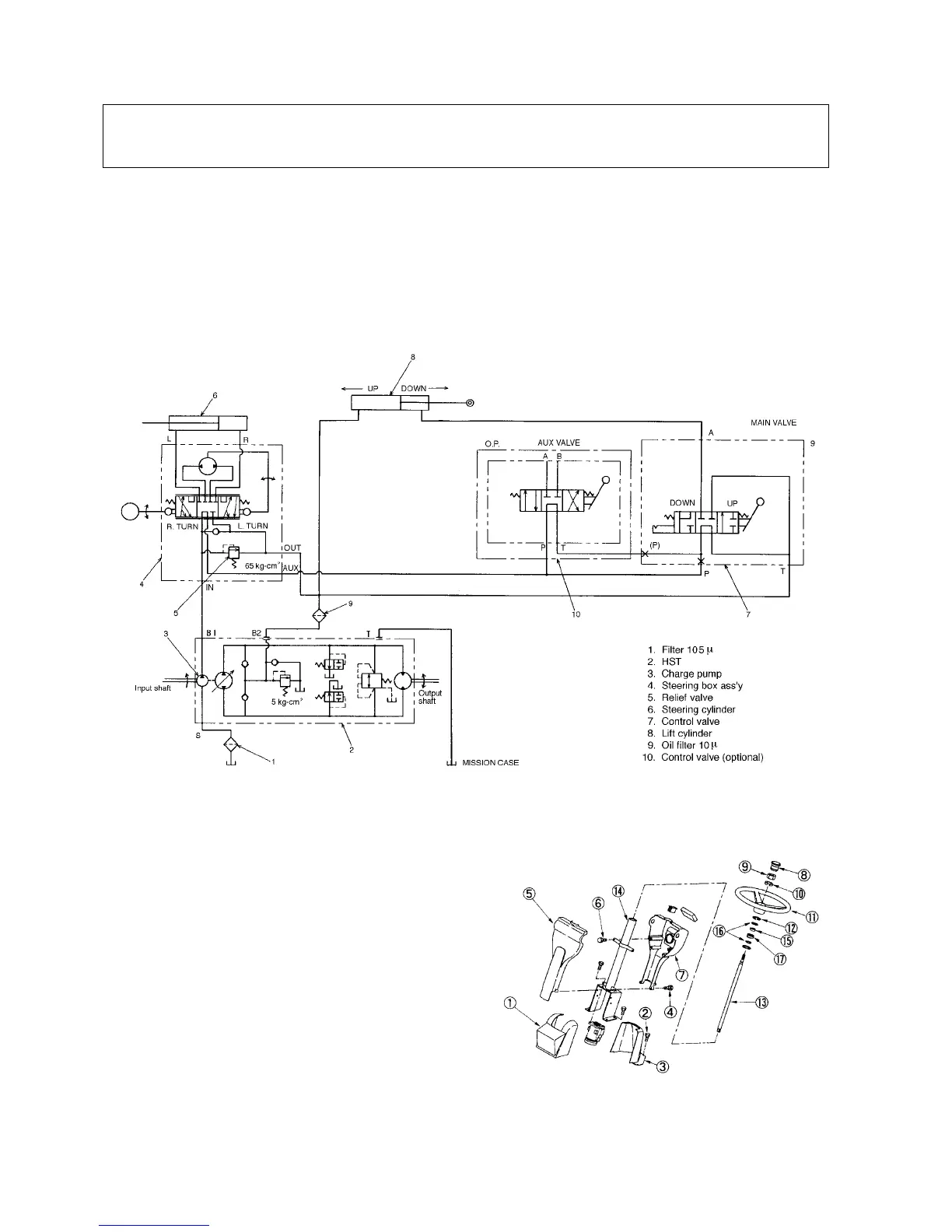

1) Oil Flow
462V
2) Removal
Power steering control valve unit is removed as
follows:
1. Pull the lower cover ➀ and remove it.
2. Remove the bolts ➁ and rear lower cover ➂.
3. Remove the screw ➃ and front dash board ➄.
4. Disconnect the connectors from key switch and
meter assembly.
5. Remove the bolts ➅ and rear dash board ➆
(meter assembly).
6. Remove the steering cap ➇, nut ➈, spring washer
➉ and steering wheel ⑪.
7. Remove the snap ring ⑫ and draw out the steering
shaft ⑬ from the column ⑭ with rubber ⑮,
bearing ⑰ and snap rings ⑯.
463V
