4) Precaution Upon Handling
(1) As large current flows through the regulator generating heat, the regulator must be positioned to the specified
place.
(2) Never remove the battery wiring during machine operation. If removed, trouble of the safety monitor, etc. is
resulted.
3. STARTING MOTOR
1) Specifications and Performance
Part code No. 185086340 Pinion ejecting voltage (V) Less than 8
Type 128000-0101
Unloaded
Terminal voltage (V) 11.5
Countinuous operation (second) 30 Current (A) Less than 90
Output (V-kW) 12 – 1.0 Speed (rpm) More than 3000
Rotating direction (viewed from
pinion)
Clockwise
Loaded
Terminal voltage (V) 2.5
Current (A) Less than 300
Clutch type Overrunning Torque (kgf·m) More than 0.7
Engaging type Magnetic shift

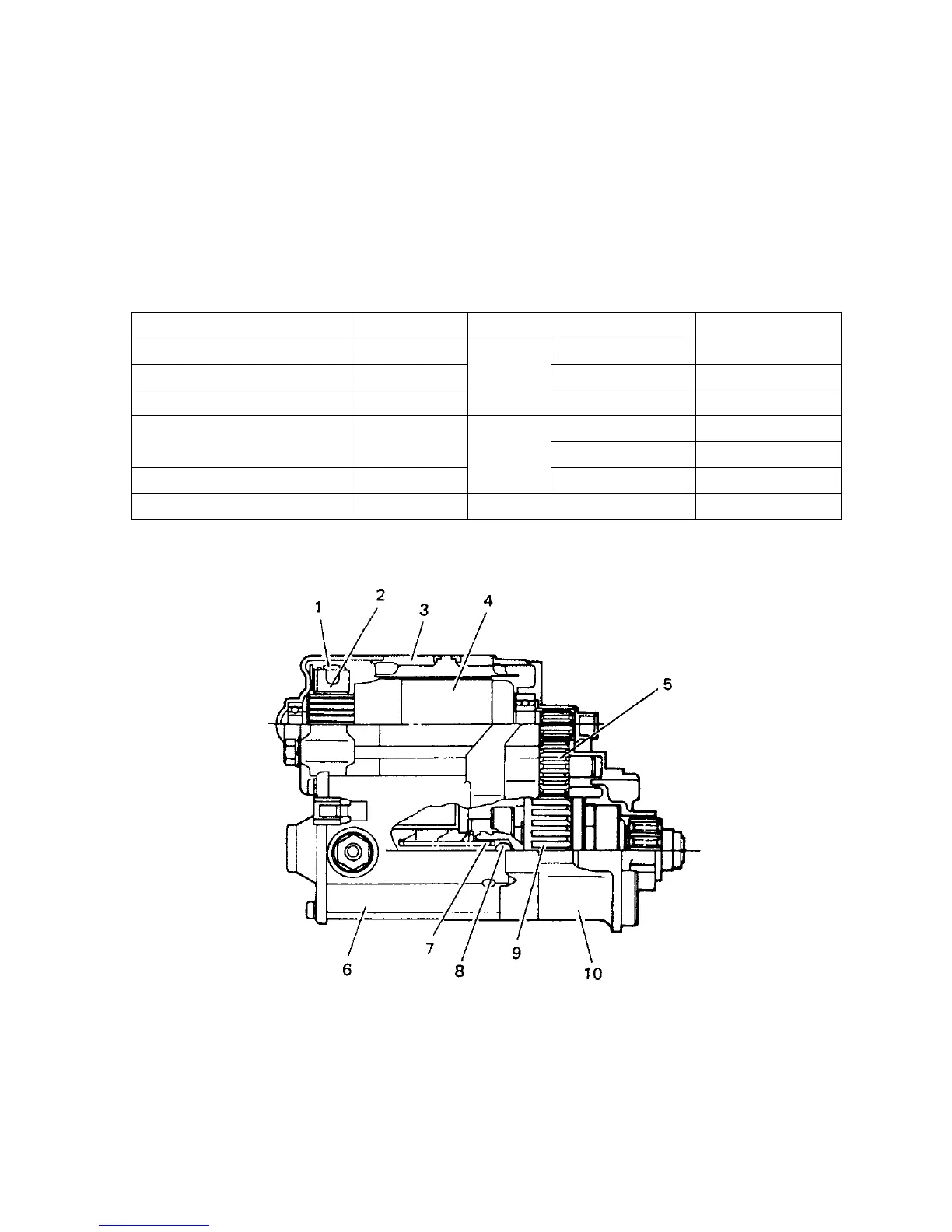

2) Structure
1. Brush spring 6. Magnetic switch
2. Brush holder 7. Spring
3. Yoke 8. Steel ball
4. Armature ass’y 9. Clutch
5. Idle gear 10. Housing
181V
