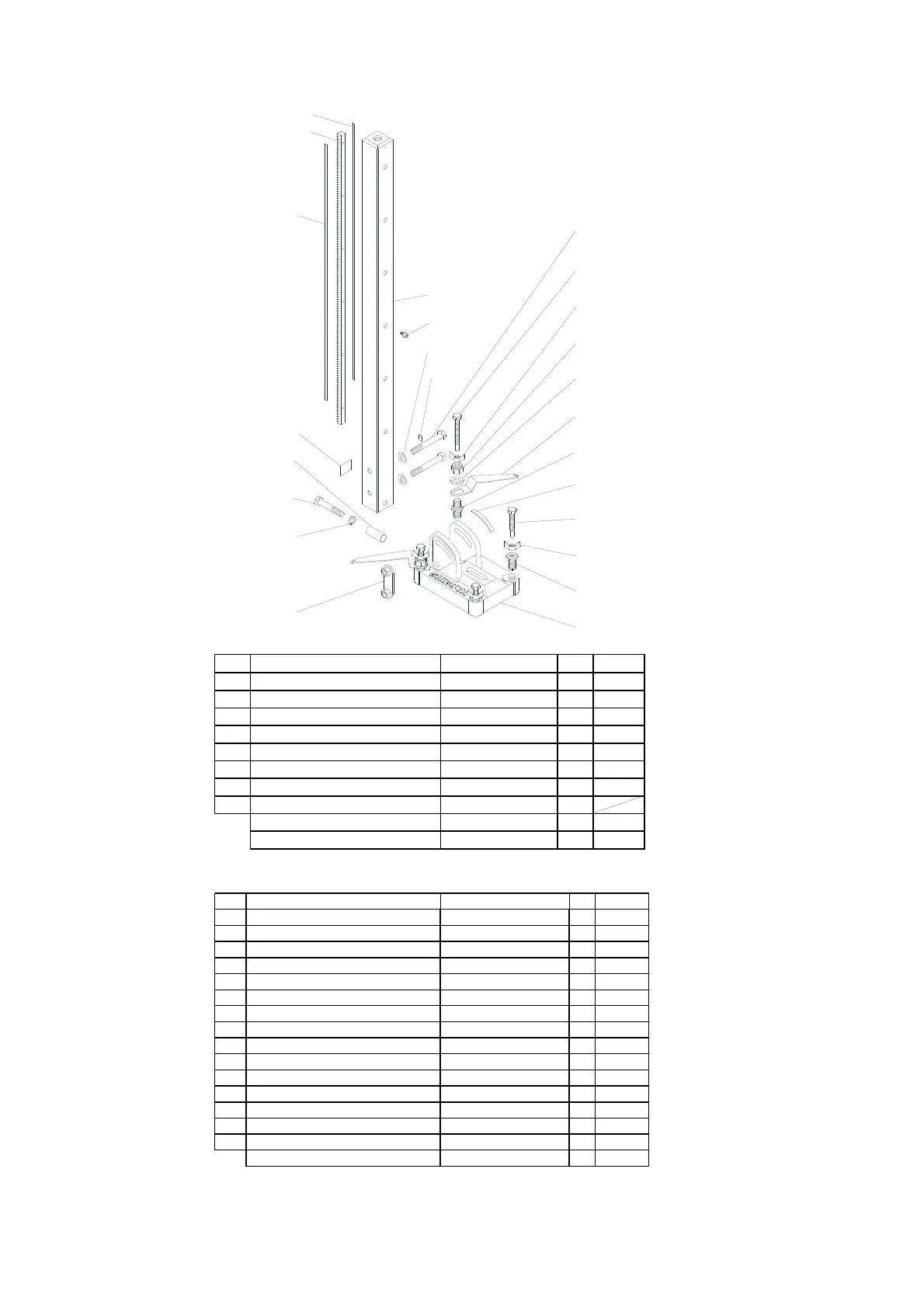

AB52 SWIVEL BASE & COLUMN
COLUMN
BASE
POS PART NAME NOTE QTY
CPT CODE
5 HEX. SOCKET BOLT W/SW M6×12 6 004672
6 INDICATION LABEL 1 000732
7 PIPE BOSS 1 005164
24 RACK GEAR 1 004670
25 DEPTH GAUGE DECAL (mm) 1 000520
26 DEPTH GAUGE DECAL (inch) US version only 1 044497
27 COLUMN AB52 L1000 M16 1 042929
28 WEIGHT LABEL(AB52) 1
COLUMN CPL. L1000 1 051682
COLUMN CPL. L1000 US VERSION 1 051683
9
11
10
8
22
21
20
14
19
7
24
6
5
27
17
18
16
15
14
13
12
25
26
28
POS PART NAME NOTE QTY CPT. CODE
8 HEX. BOLT M12×70 1 042650
9 SPRING WASHER 2-12 1 042098
10 WASHER φ12.5×φ28×t3.2 2 042826
11 PLATE (N) 1 052533
12 HEX. BOLT M12×90（10.9） 2 042827
13 LEVELING BOLT (F) 2 042094
14 FLANGE NUT 2-M10 4 042096
15 U-NUT 3-M16 2 042101
16 PLAIN WASHER POLISHED ROUND 16 2 042100
17 BEAM 2 042099
18 HEX. BOSS 2 (F) 2 042092
19 ANGLE SCALE 1 006478
20 LEVELING BOLT (R) 2 042095
21 HEX. BOSS 2 (R) 2 042093
22 BASE PLATE 1 042828
AB52 SWIVEL BASE CPL. 1 042796
