12
Installation/removal
Electric wires
NOTICE
• The SHIMANO original tool used for installation/removal and the accessories used for
wiring differ for the EW-SD300 and EW-SD50. Be sure to use a compatible product.

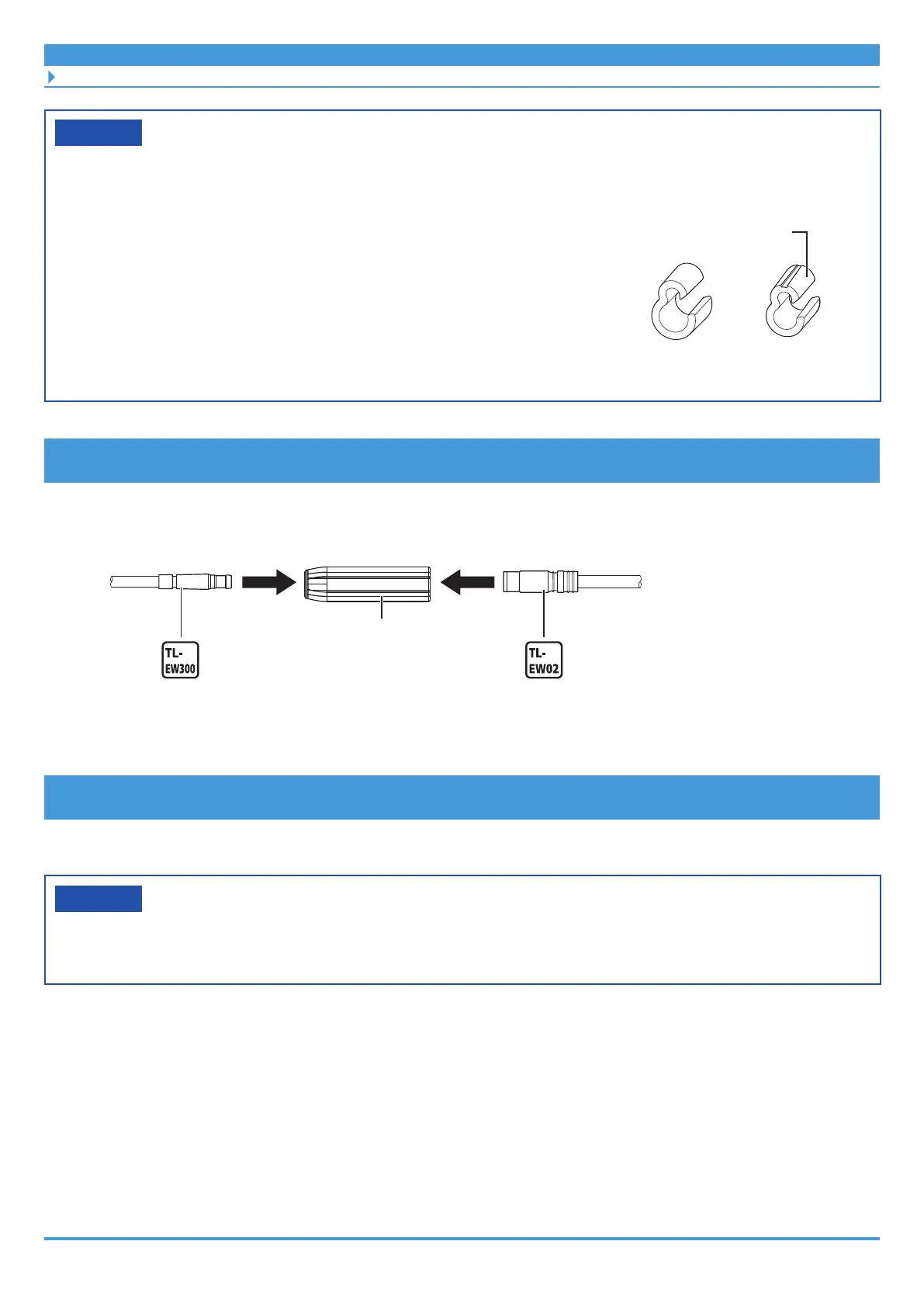

• EW-CL300-S is marked with a groove in order to
differentiate it from EW-CL300-M.
Differentiation groove
EW-CL300-M EW-CL300-S
Conversion adapter
A conversion adapter (EW-AD305) is required to connect the EW-SD50 to a component with an
E-TUBE port for the EW-SD300.
Electric wire (EW-SD300) Electric wire (EW-SD50)
Conversion adapter (EW-AD305)
Connecting / disconnecting the electric wire
Be sure to use the SHIMANO original tool to remove and insert electric wires.
NOTICE
• When connecting and disconnecting electric wires, do not forcibly bend the plug part.
It may result in a poor connection.
` Connecting the electric wire (EW-SD300)
Connect the electric wire to the E-TUBE port.
To Next Page
