38
Installation/removal

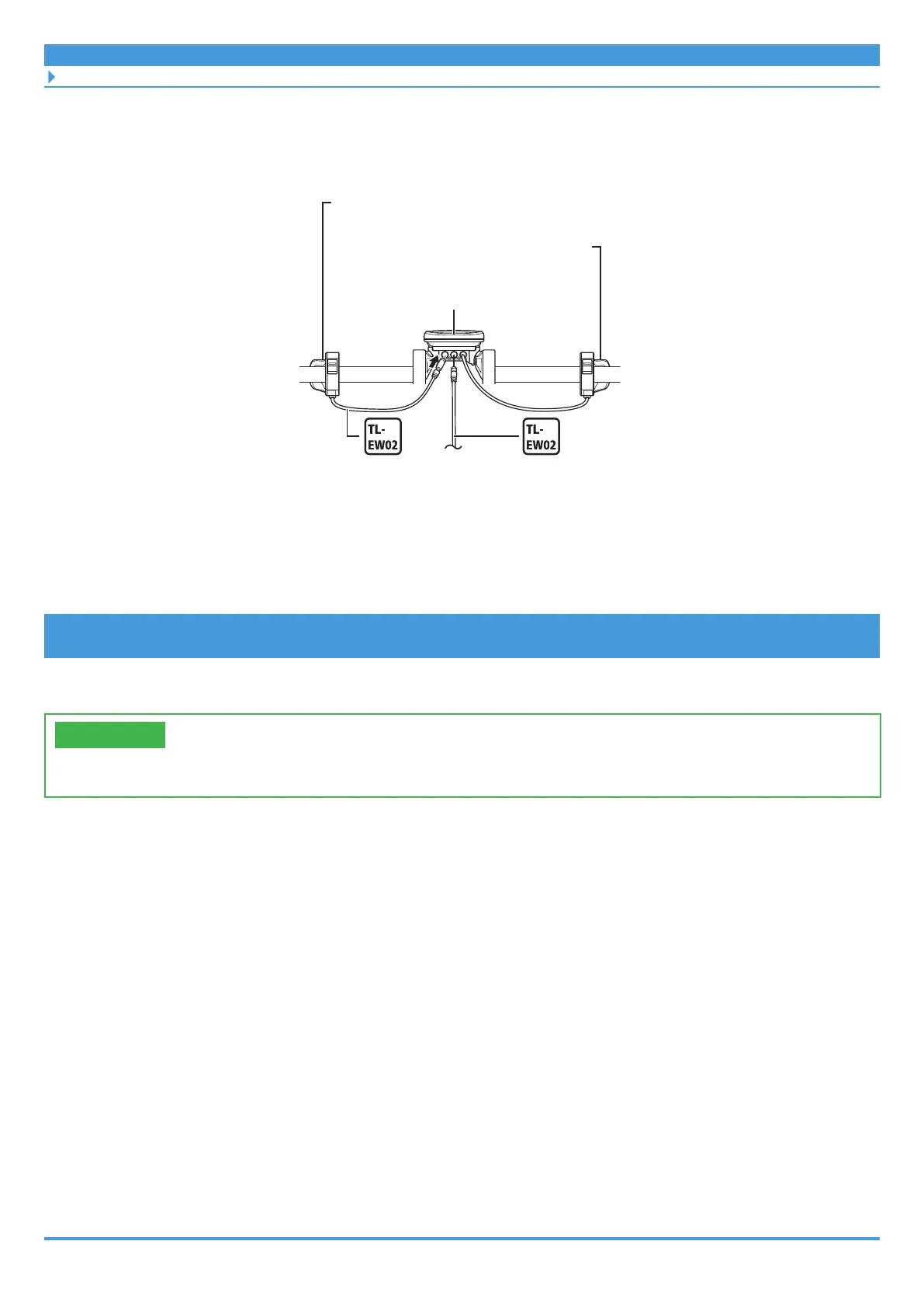

Wiring around the cockpit (bracket installation type cycle computer)
• Switch units and drive units can be connected to any of the E-TUBE ports on the cycle
computer. However, it is recommended to connect the left and right ports to each
switch unit, and the center port to the cycle computer (as shown in the figure).
Cycle computer
Right switch
Left switch
To drive unit
2. Prepare to wire to the drive unit.
Refer to the “SHIMANO STEPS Dealer's Manual.”
Example: Routing the electric wire
Use cord bands and a cord clip to organize the wiring around the cockpit.
TECH TIPS
• A cord clip may be included with the cycle computer or may be sold separately.
To Next Page
