Shimano Steps SC-EM800 Dealer's Manual

27
Installation/removal
Installing the switch unit

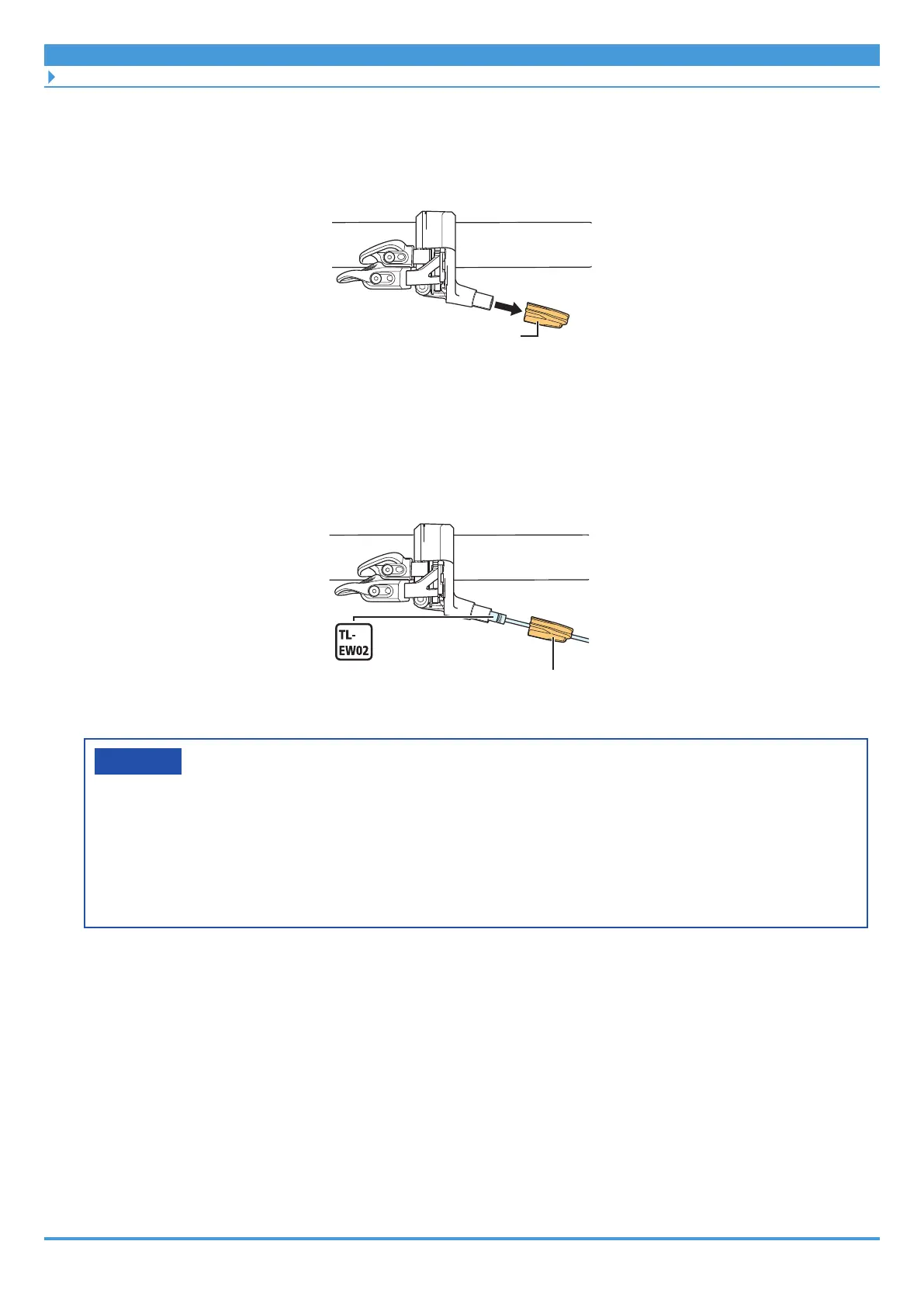

` Connecting the electric wire
1. Remove the cable cap.
Cable cap
2. Connect the electric wire to the switch unit.
(1) Pass the electric wire through the cable cap.
(2) Connect the electric wire to the switch unit.
Cable cap
Electric wire
NOTICE
• If the electric wire is connected to the switch unit without passing it through the
cable cap, the plug part of the electric wire may be damaged.
• Make sure that the cable cap does not interfere with the brake lever. If the cable
cap is pushed against the brake lever, the plug part of the electric wire may be
damaged.
