INSTALLATION/REMOVAL
Installing the brake caliper

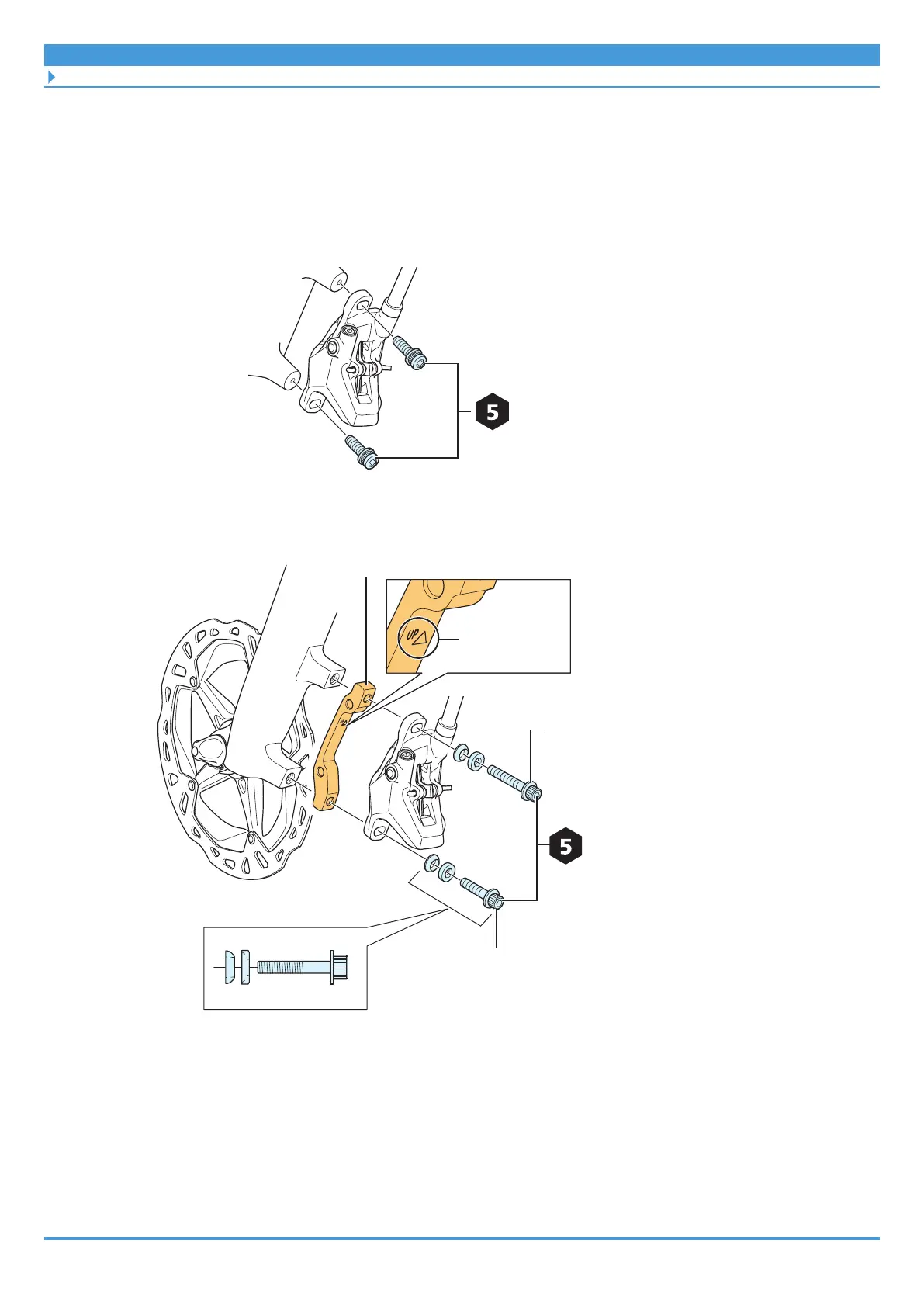

5. Temporarily install the caliper on the frame without fully tightening
the fixing bolts so that the caliper can still move horizontally.
If it is necessary to install a mount adapter, temporarily install the adapter after setting it
on the caliper. Set the adapter so that the mark is facing up.
Without mount adapter
(Temporary)
Caliper fixing bolts
With mount adapter
Caliper fixing bolt (long)
Caliper fixing bolt (short)
(Temporary)
Mark
To Next Page
