17(49)

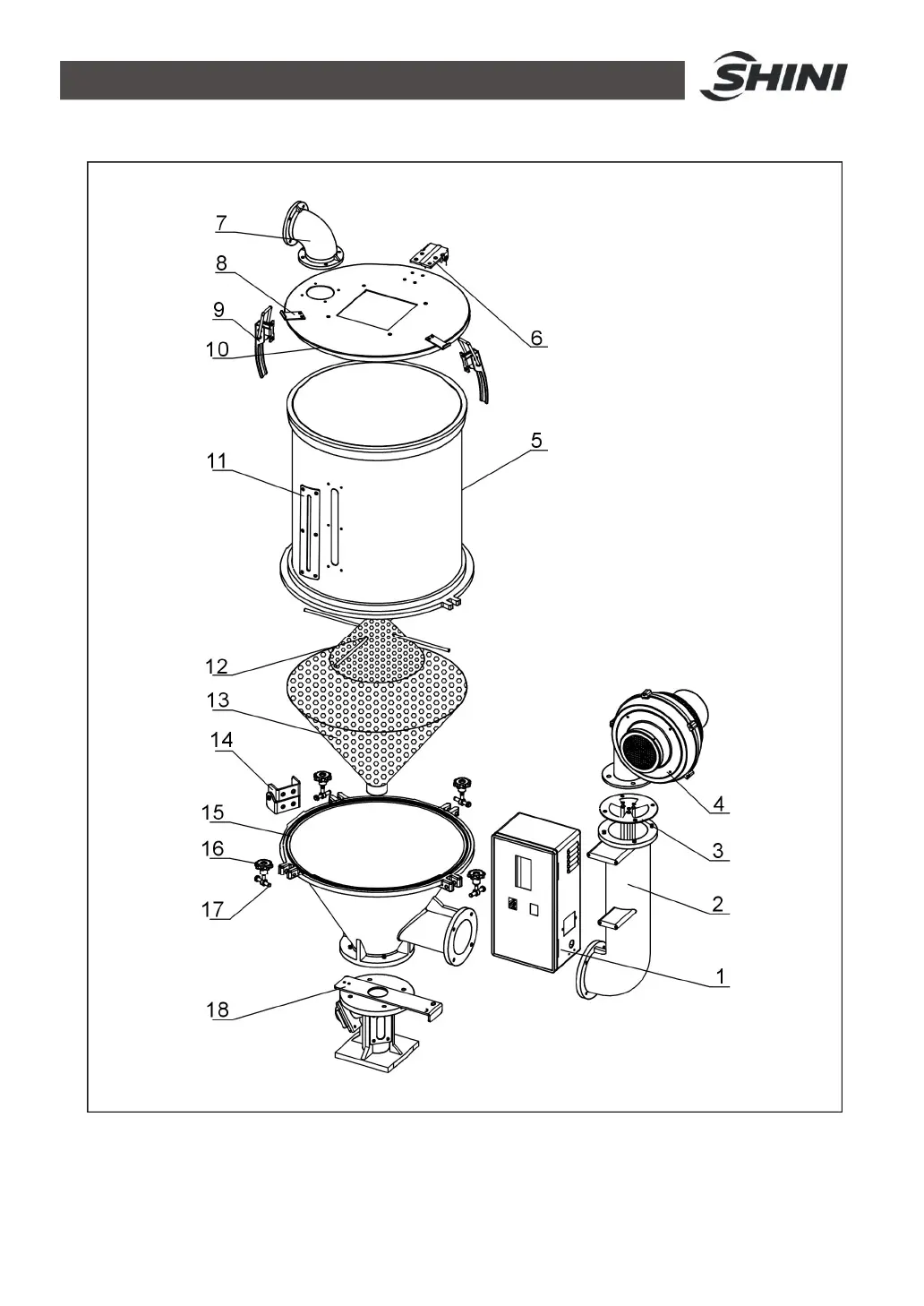

2.2.3 Assembly Drawing (SHD-100/150-EB)
Remarks：Please refer to material list 2.2.4 for specific explanation of theArabic numbers in parts drawing.
Picture 2-3: Assembly Drawing (SHD-100/150-EB)
