Shini SHD-EB - Hot Air Recycler Installation; Picture 3-8: Hot Air Recycler

44(49)
3.5.4 Hot Air Recycler Installation
Based on AIF blower inlet filter, using a hear-resistance pipe to connect the
hopper exhausting air to AIF. Thus to form a hot air recycler. By recycling the
hot air can at most save energy consumption by 40%.

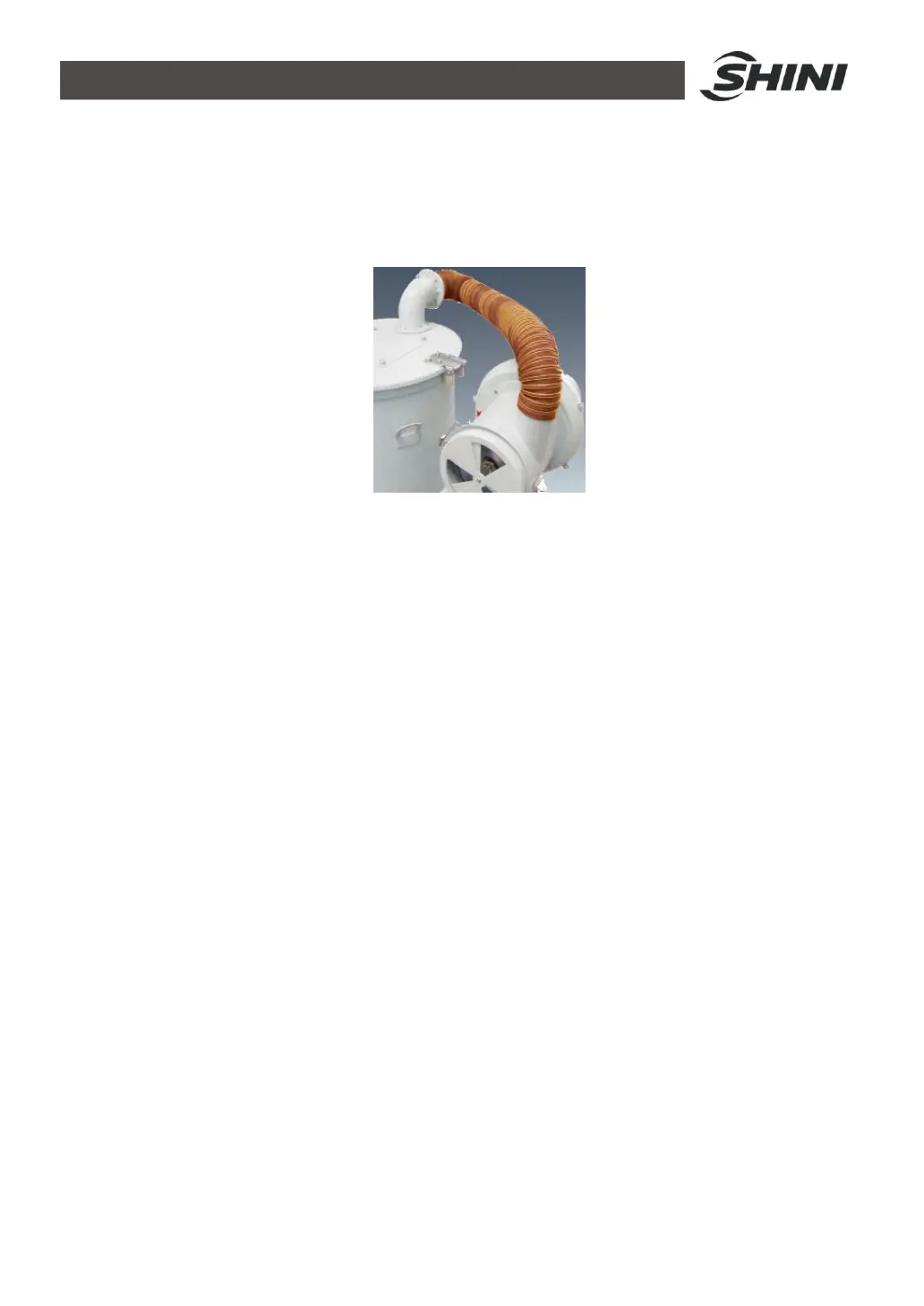

Picture 3-8: Hot Air Recycler
