3.2 Floor Stand Installation

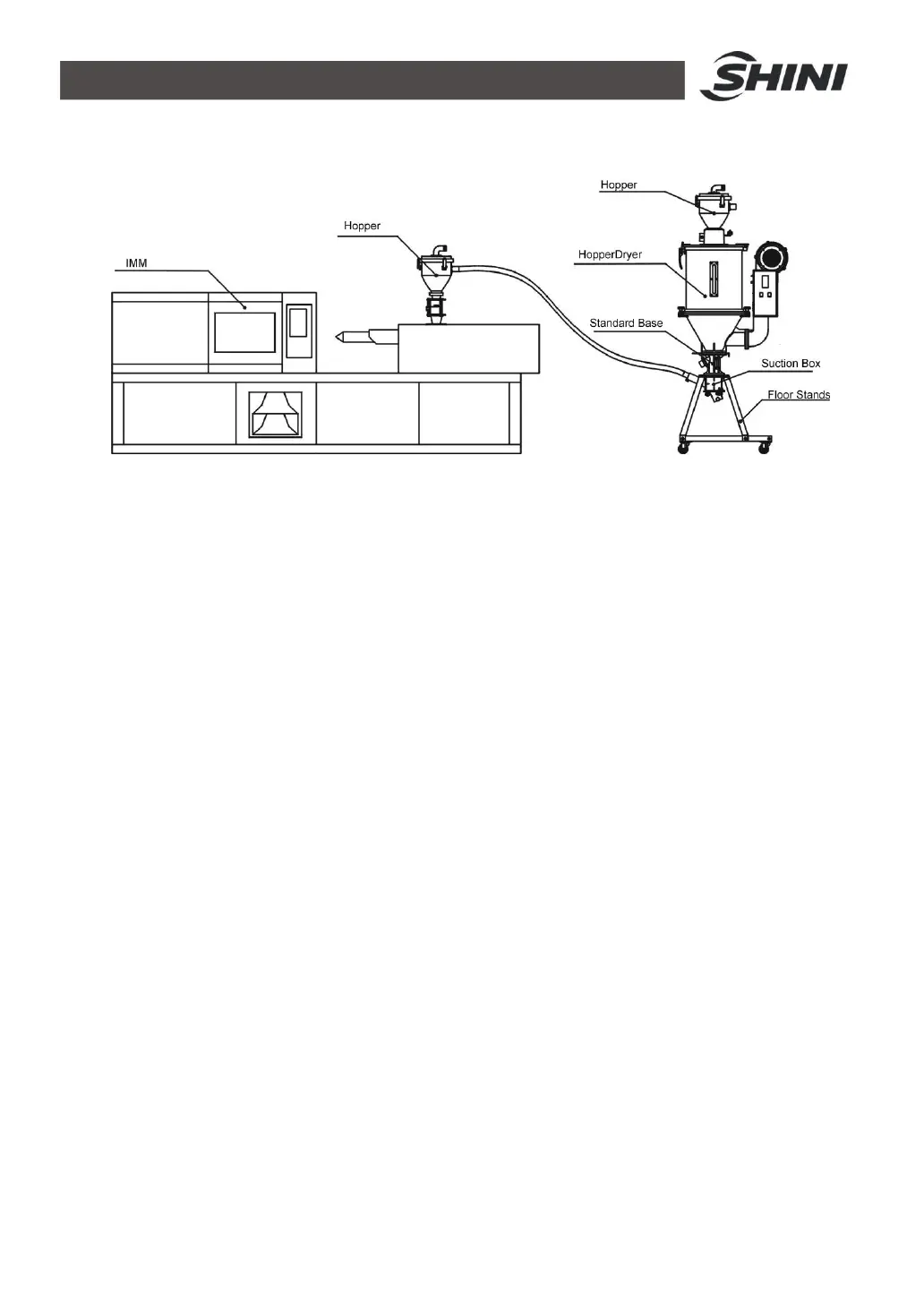

Picture 3-2: Floor stand Installation
Floor stand installation type is to mount dryer on a floor stand, then via a
photo-sensor hopper receiver to convey the material to the feed port of a molding
machine. SHD-400 and above models should adopt floor stand installation type.
Machine should be placed on water-level floor to keep balance. If it is to be
mounted on a high surface(e.g. on a scaffold or a interlayer), should ensure its
structure and sizes can bear the weight and size of the machine.
3.3 Connecting the Power Source
Open the control box and connect the power source in accordance with wiring
diagram. Notice should be taken concerning if the power voltage is in compliance
with the required specifications, also if the switch and load are proper and safe.
Notes: Before connecting, the main switch and heat switch should be off.
