3. Installation and Debugging
Notes for Installation and Positioning：
1) Machine just can be mounted in vertical position. Make sure there’s no pipe,
fixed structure or other objects above the installing location and around the
machine which may block machine’s installation, hit objects or injure human
person.
2) In order to maintain convenient operation, it’s suggested to keep 1m space
around the machine. Please keep at least 2m distance between the device and
the inflammable goods.
3) This series of models only could be applied in working environment with good
ventilation.
3.1 Direct Installation

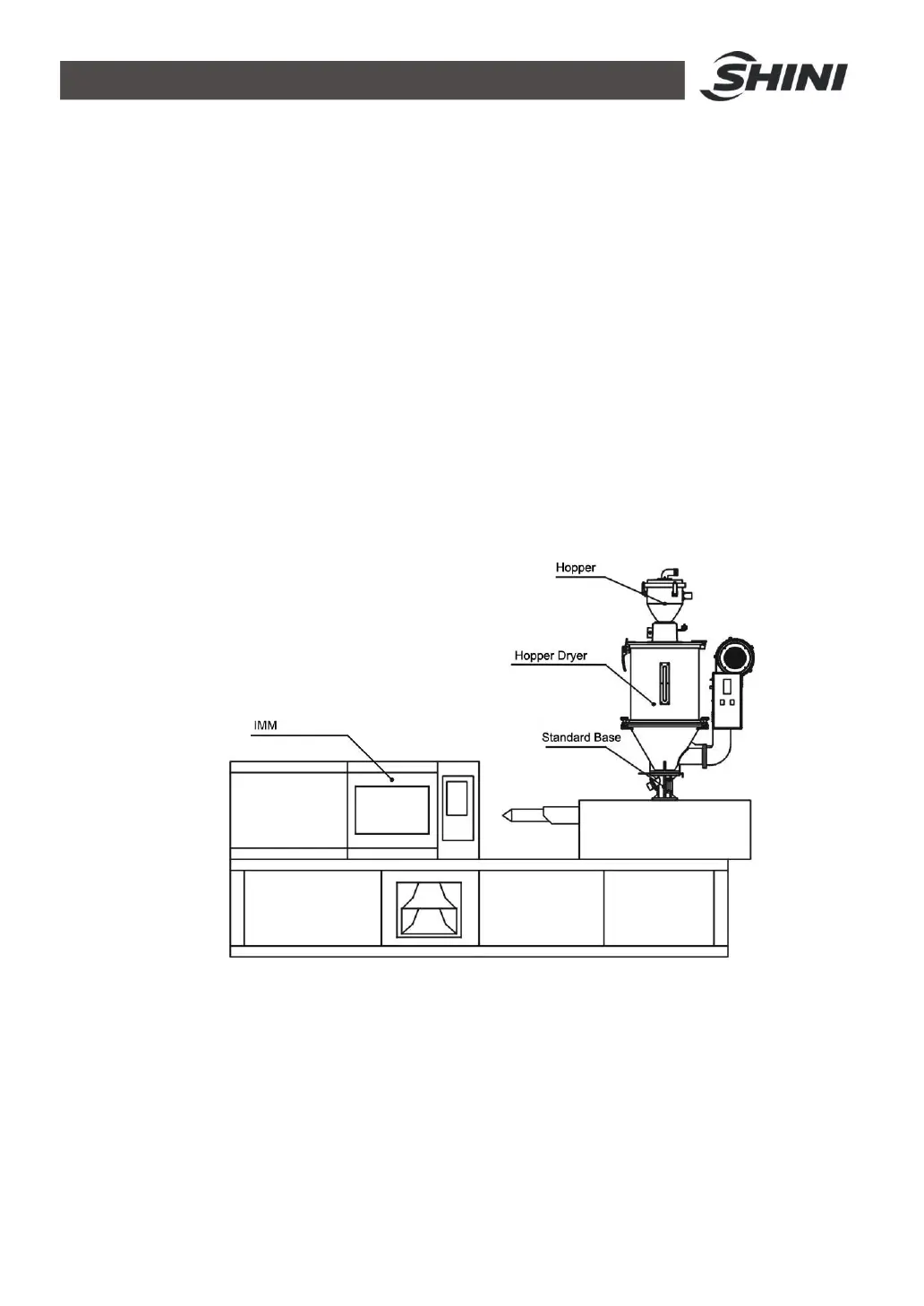

Picture 3-1: Direct Installation
Direct installation type is to mount the hopper dryer directly on the molding
machine via a standard base. SHD-12~300 is suitable for this mounting method
as well as floor stand installation type; SHD-400 and models above should adopt
floor stand installation type.
When using the method to mount the dryer, the equipped standard base must
according to material inlet diameter of the molding machine mounting drill holes.
Then use the screw to fasten the base and the molding machine inlet.
