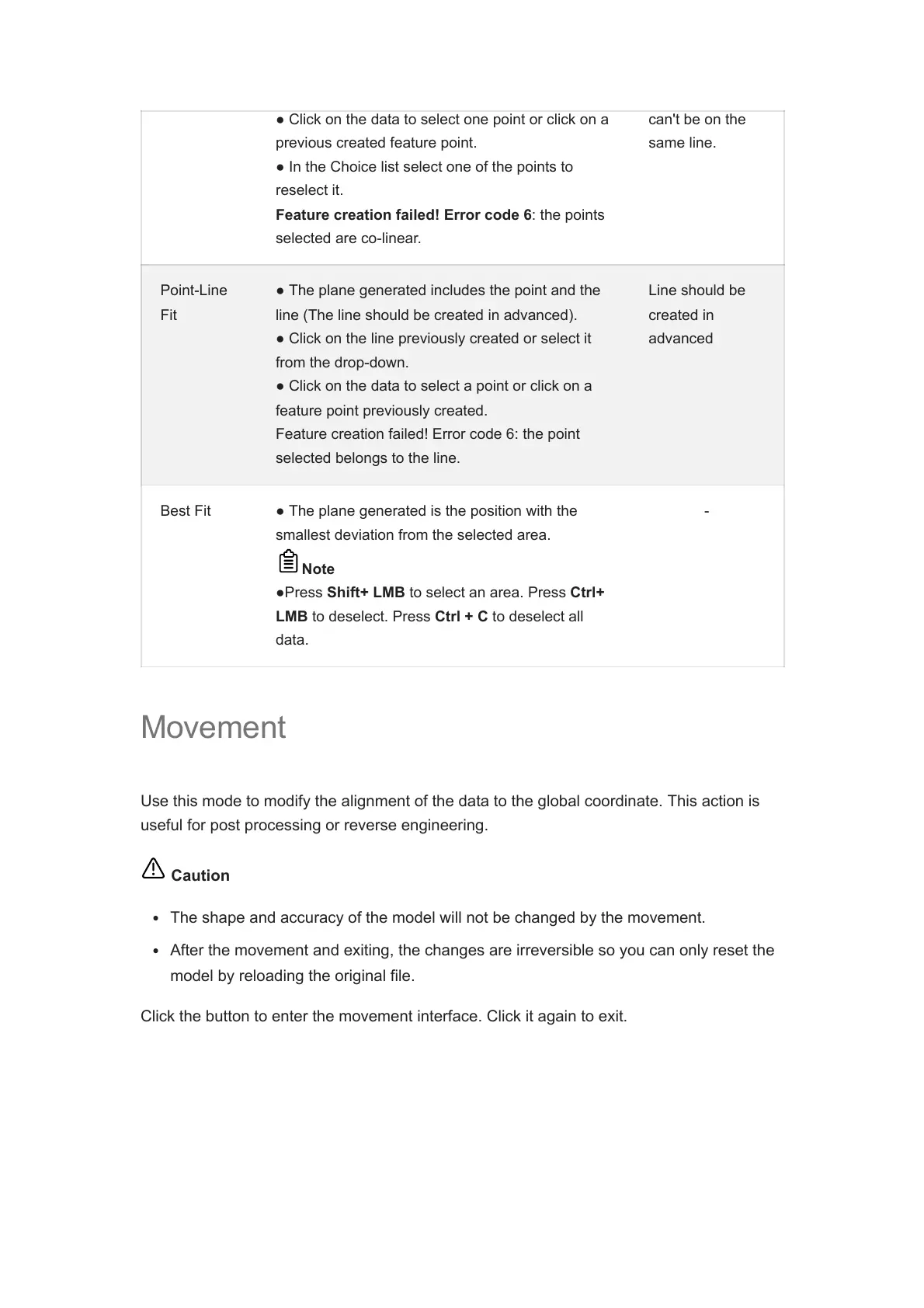

Movement
Use this mode to modify the alignment of the data to the global coordinate. This action is
useful for post processing or reverse engineering.
Caution
The shape and accuracy of the model will not be changed by the movement.
After the movement and exiting, the changes are irreversible so you can only reset the
model by reloading the original file.
Click the button to enter the movement interface. Click it again to exit.
● Click on the data to select one point or click on a
previous created feature point.
● In the Choice list select one of the points to
reselect it.
Feature creation failed! Error code 6: the points
selected are co-linear.
can't be on the
same line.
Point-Line
Fit
● The plane generated includes the point and the
line (The line should be created in advanced).
● Click on the line previously created or select it
from the drop-down.
● Click on the data to select a point or click on a
feature point previously created.
Feature creation failed! Error code 6: the point
selected belongs to the line.
Line should be
created in
advanced
Best Fit ● The plane generated is the position with the
smallest deviation from the selected area.
Note
●Press Shift+ LMB to select an area. Press Ctrl+
LMB to deselect. Press Ctrl + C to deselect all
data.
-
