9. Turn saw OFF, disconnect it from power, then wait
for blade to come to a complete stop.
10. Loosen clamp shoe, remove workpiece, then move
tenoning jig back to front of table.
11. Rotate workpiece 180°, correctly clamp it against
jig, verify blade alignment for second structural
cheek cut, then repeat Steps 5–8 to complete cut
(see Figure 27).

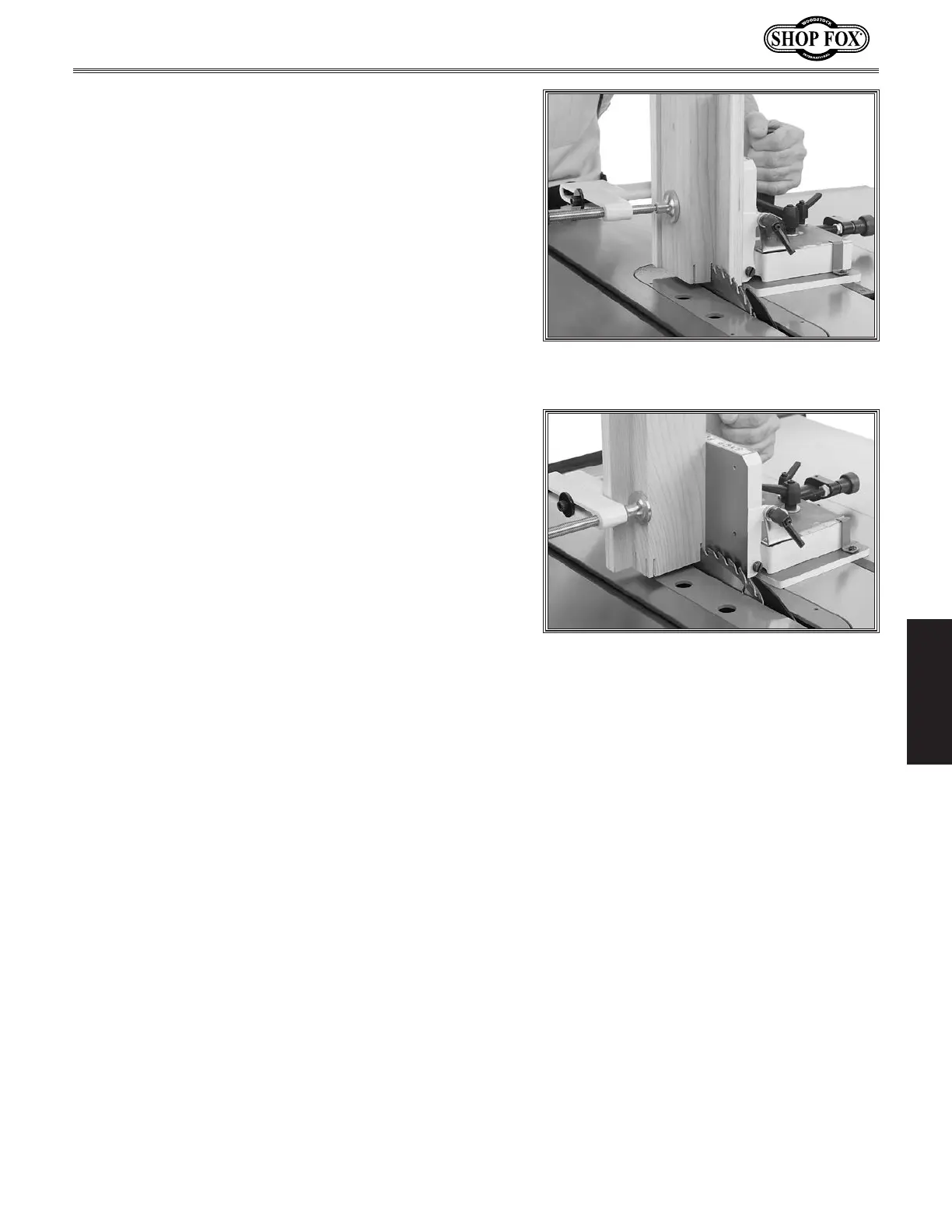

Figure 27. Making the second structural
cheek cut.
12. Position workpiece for third and fourth cosmetic
cheek cuts, as shown in Figure 28, and repeat Steps
5–8 for each cut.
13. Turn saw OFF, disconnect it from power, wait for
blade to come to a complete stop, then remove
tenoning jig and additional wood base piece clamped
to saw table during Step 3.
Figure 28. Making third and fourth
cosmetic cheek cuts.
