Description of the device
Features
The Showtec Easy 16 is a light controller equipped with very useful features:
32 channel programmable DMX controller
Total output channels: 16 x 2 (pages)
Program 12 scenes
Manual Mode
Built-in chase
Adjustable speed: 0,1 sec - 10 min.
Adjustable fade time: 0-100 %
Adjustable chase direction
Universal DMX-512 controller
Output connector: 3 pole Female XLR
Input connector: 3-pin XLR male
Power Input DC 9V-500 mA
3HE (3U) 19" rack mount
NOTE: Knowledge of DMX is required to fully utilize this unit.

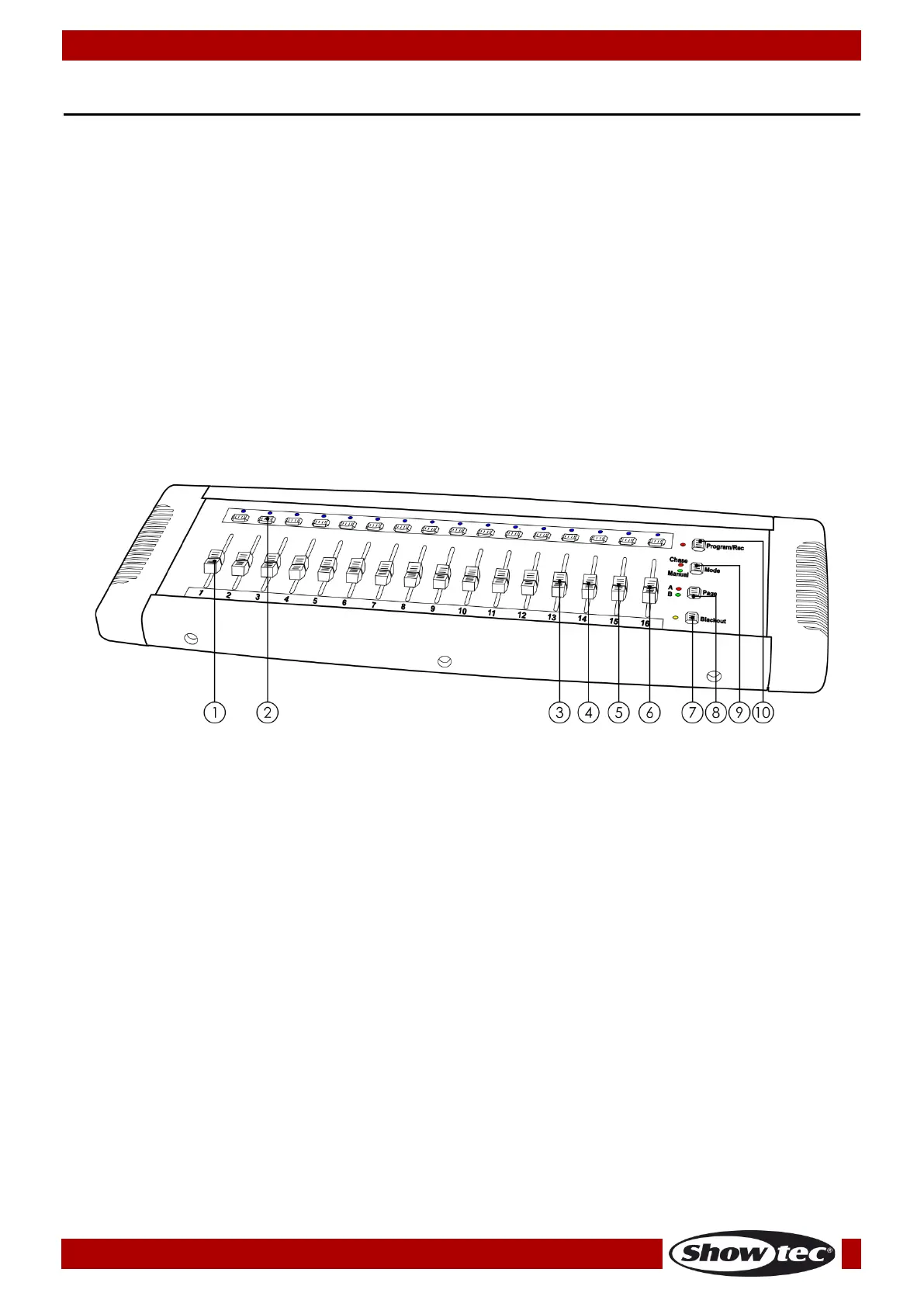

Overview
01) Channel faders
For adjusting DMX values, Ch 1~16 can be adjusted immediately, Ch 17~32 after pressing the Page
select button.
02) Scene select buttons
Universal bump buttons representing scene location for storage and selection
03) Direction Fader
04) Output Fader
05) Speed Fader
This will adjust the hold time of a scene or a step within a chase (range of 0.1 second to 10 minutes).
06) Fade Fader
Used to adjust the fade time. Fade time is the amount of time it takes for a scanner (or scanners) to
move from one position to another, for the dimmer to fade in or fade out.
07) Blackout button
Press this button to enable or disable relevant DMX output. When its LED is lit, that means the relevant
DMX output is disabled. Press this button again the LED will be “off”, that means the DMX output is
reactivated.
08) Page button
Used to select page between Page A (I-16) and Page B (17-32). The corresponding Page LED (A/B)
will light up.
09) Mode button
Operating mode status, (Chase / Manual). The corresponding Mode LED (Chase / Manual) will light
up.
10) Program / Rec button
Activates program mode.
