SHOWTEC LED Messenger - Description; Features and Overview; Backside

6
Description of the device
Features
The Showtec LED Messenger is a light effect with high output and great effects.
• Multi programmable RGB graphic patterns
• Multi programmable RGB Text patterns
• Operating Modes: built-in programs, Auto run, DMX, Sound active, Master/Slave
• IR remote control
• DMX-controlled
• 3-pin DMX In and 3-pin DMX Out
• Clear LCD display for all settings
• Compact strong metal housing
• Power consumption: 60 Watt
• Beam angle: 15˚
• Light source: 192 LEDs (96 Red, 48 Green, 48 Blue)
• Music-controlled via built-in microphone
• Fuse 1A / 250V

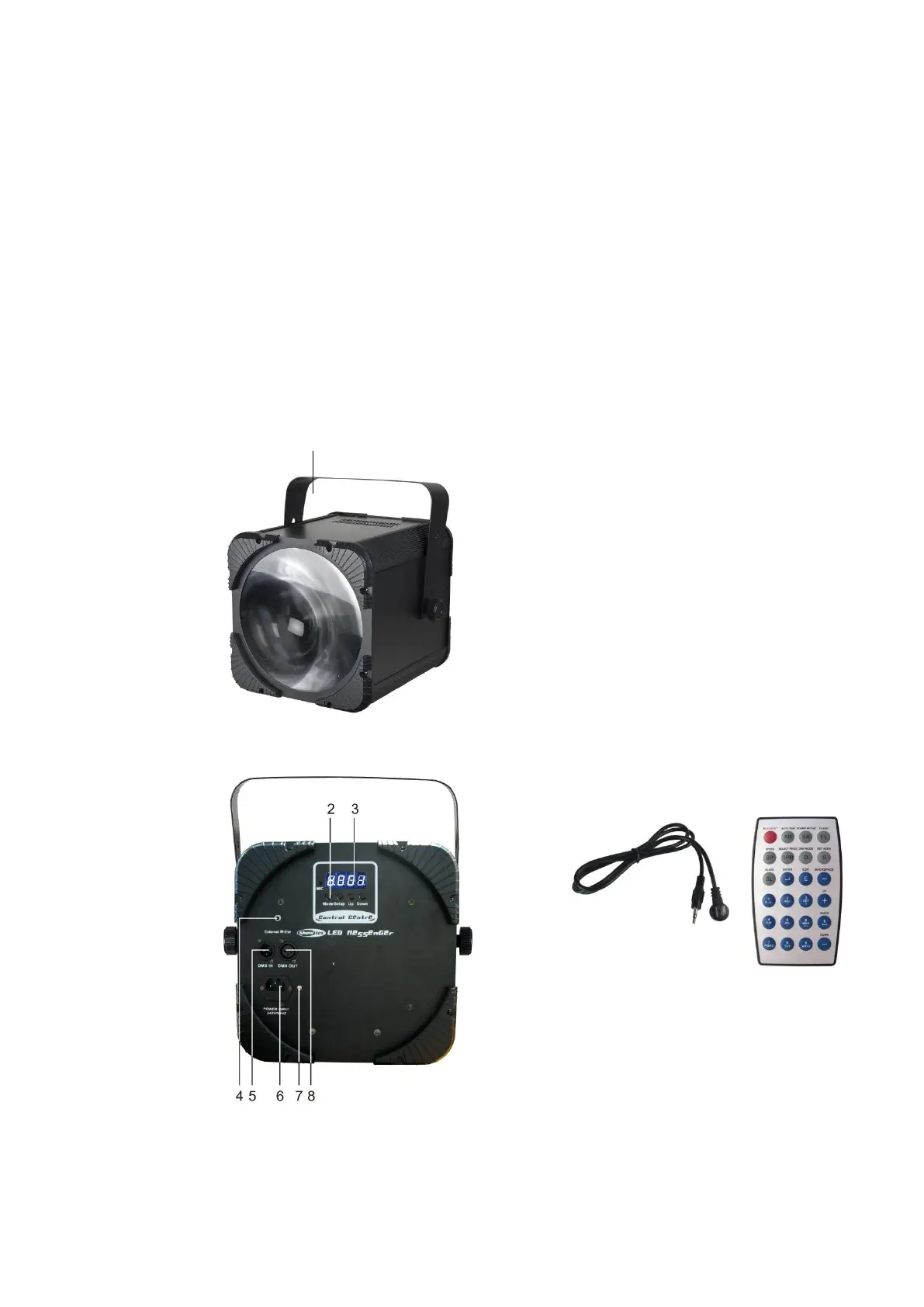

Overview 1
Fig. 1
Backside
Fig. 2
1) Mountingbracket 5) 3-pin DMX In
2) Menu Buttons 6) IEC Powerconnector + Fuse 1A/250V
3) LCD Display 7) Earth connection
4) Jack plug for remote control eye 8) 3-pin DMX Out
