Product Specification
Model: Showtec Phantom 75 LED Beam
Input Voltage: 100-240 VAC, 50/60Hz
Power consumption: 167W max. at full output
Fuse F3AL / 250V

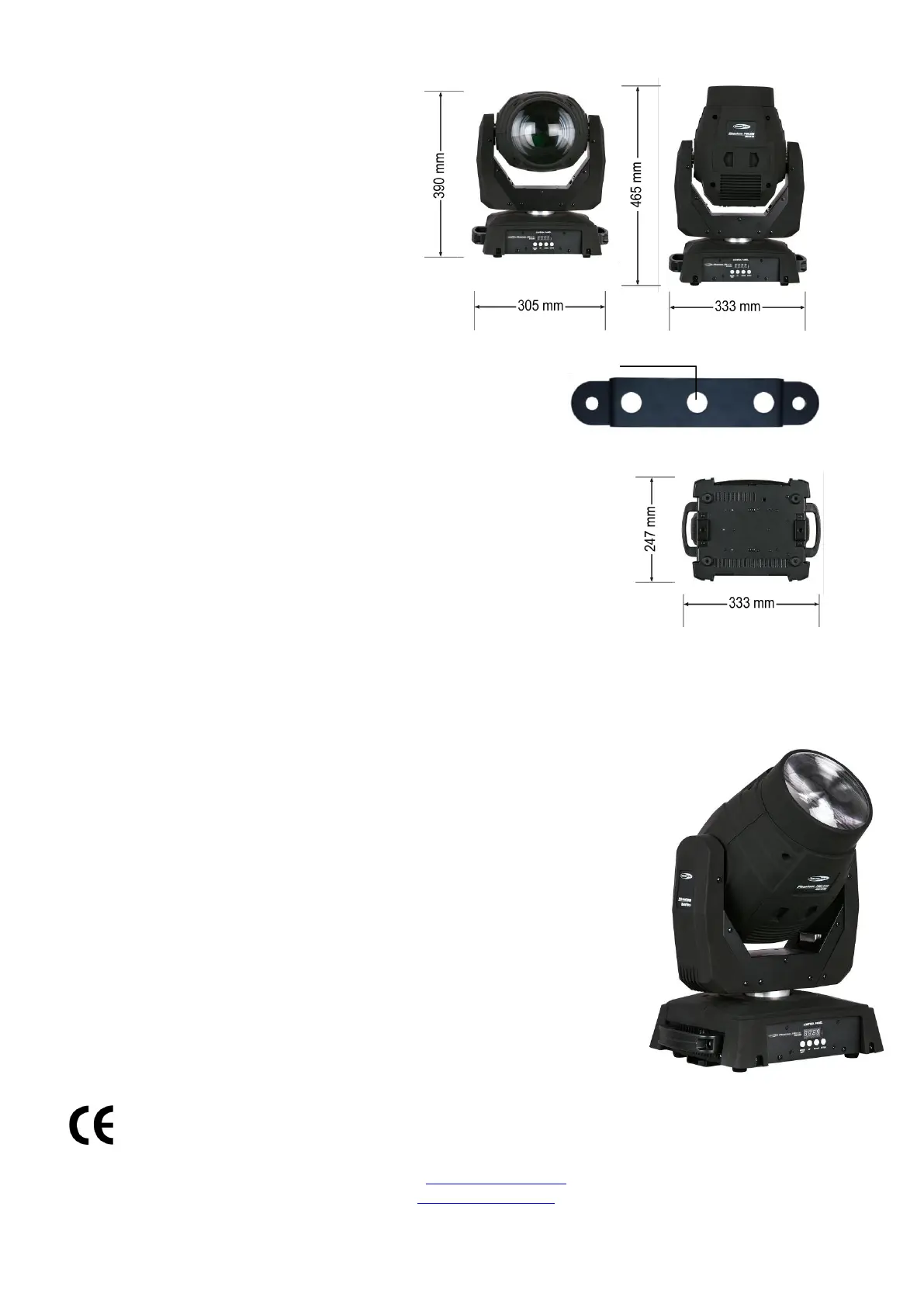

Dimensions: 333 x 247 x 390 mm(WxDxH)
Weight: 10 kg
Operation and Programming
Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing: LED control panel
Pan/Tilt resolution: 8-16 bit
DMX Channels: 12 or 6
Signal input 3-pin XLR male
Signal output 3 -pin XLR female
13mm
Electro-mechanical effects
DMX-control via standard DMX-controller
Built-in Automatic Programs + Built-in Sound activated programs
User-selectable Pan & Tilt ranges, 540° / 360° / 180°
Reverse Pan / Tilt movement
Special: Pan / Tilt movement blackout
Pan 0º -- 540º
Tilt 0º -- 270º
Pan/Tilt resolution: 16 bit
Control: DMX-512, Master/Slave, Sound-controlled
16 Built in programs selectable by DMX
Light Source: 1 x 75W LED
Colourwheel with 8 dichroic-colours and white
Color functions: Split colors, Rainbow-flow effect
Rotating Gobowheel with 6 metal gobos and open with Gobo Shake Function (No replaceable gobos)
Rotation: Bi-directional
Prism: 3-facet prism
Gobo functions: Gobo-flow effect, Gobo shake
8 automatic and 8 sound-to-light programs with master / slave function
Single clamp bracket, which makes it easy to handle and position in truss systems.
Output: 35000 Lux @ 5m.
Beam Angle: 4°
Dimmer: 0-100%
Strobe: 0-20Hz
Housing: Black Metal & Flame-retardant plastic
Fixture Connection: XLR Data in/out (XLR 3-pin), IEC Power in
User selectable Basic (6CH) or Advanced (12CH) operating modes
Gobos
Colourwheel: heat-resistant and intensify glass; dichroic glas coating
Max. ambient temperature t
a
: 40°C; Max. housing temperature t
B
: 80°C
Cooling: 2 axial fans – 1 fan in the projector and 1 in the base
Motor: high quality stepping-motor controlled by microprocessors
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 1.3m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: service@highlite.nl
