Description of the device
Features
The Showtec Phantom 75 LED Beam is a moving-head with high output and great effects.
• DMX-control via standard DMX-controller
• Built-in Automatic Programs + Built-in Sound activated programs
• User-selectable Pan & Tilt ranges, 540° / 360° / 180°
• Reverse Pan / Tilt movement
• Special: Pan / Tilt movement blackout
• Pan 0º -- 540º
• Tilt 0º -- 270º
• Pan/Tilt resolution: 16 bit
• Control: DMX-512, Master/Slave, Sound-controlled
• 16 Built in programs selectable by DMX
• Light Source: 1 x 75W LED
• Colourwheel with 8 dichroic-colours and white
• Color functions: Split colors, Rainbow-flow effect
• Rotating Gobowheel with 6 metal gobos and open with Gobo Shake Function (No replaceable gobos)
• Rotation: Bi-directional
• Prism: 3-facet prism
• Gobo functions: Gobo-flow effect, Gobo shake
• 8 automatic and 8 sound-to-light programs with master / slave function
• Single clamp bracket, which makes it easy to handle and position in truss systems.
• Output: 35000 Lux @ 5m.
• Beam Angle: 4°
• Input Voltage: 100-240 VAC, 50/60Hz
• Power consumption: 167W max. at full output
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Housing: Black Metal & Flame-retardant plastic
• Fixture Connection: XLR Data in/out (XLR 3-pin), IEC Power in
• Fuse F3AL / 250V
• Dimensions: 333 x 247 x 390 mm(WxDxH)
• Weight: 10 kg
• User selectable Basic (6CH) or Advanced (12CH) operating modes
Overview
1

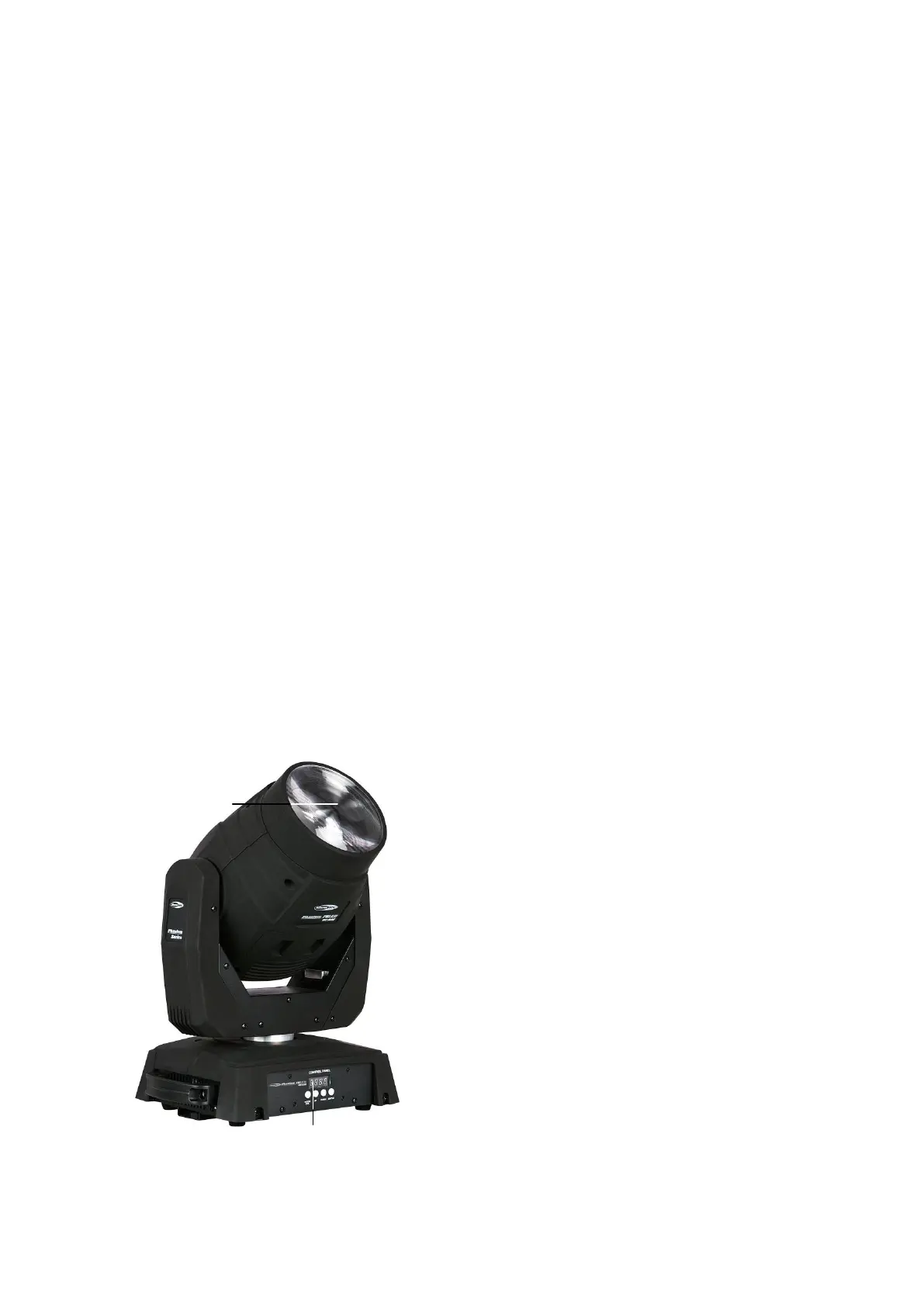

Fig. 1
2
1) Lens
2) Menu Buttons + LCD Display
