SHOWTEC Showdesigner 1024 - Controller Backside

8

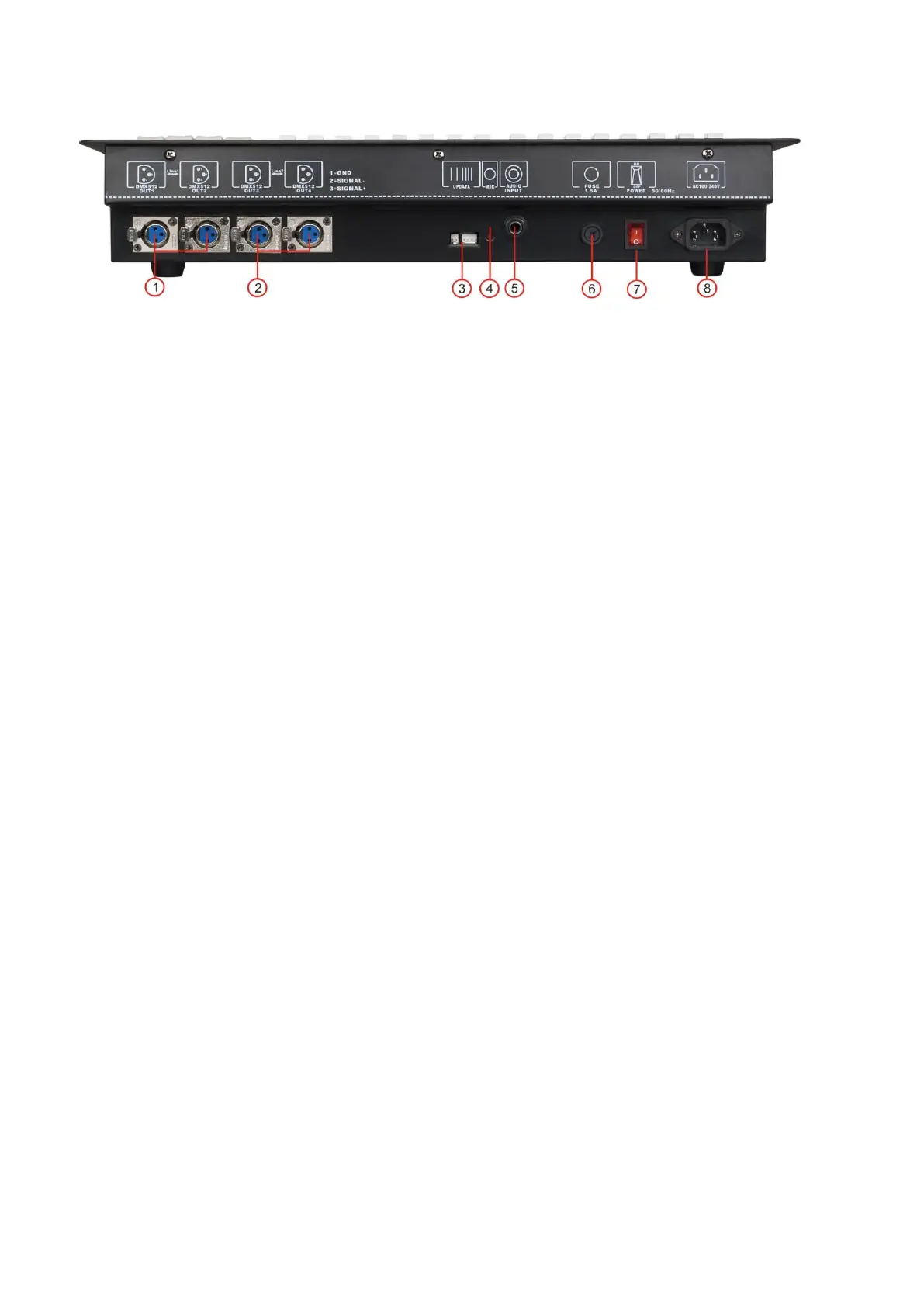

Controller Backside
Fig. 2
1) DMX OUT 1+2: These DMX-outputs can control the first 512 DMX channels.
2) DMX OUT 3+4: These DMX-outputs can control the second 512 DMX channels (513-1024).
3) UPDATA: Data port (only used by Showtec to read out an error logfile).
4) Microphone.
5) Audio Input: This jack accepts a line level audio input signal ranged from 100 mV to 1Vpp.
6) Main Fuse T1,5A/250V.
7) Power ON/ OFF.
8) IEC Connector.
