Shure AD4Q User Manual

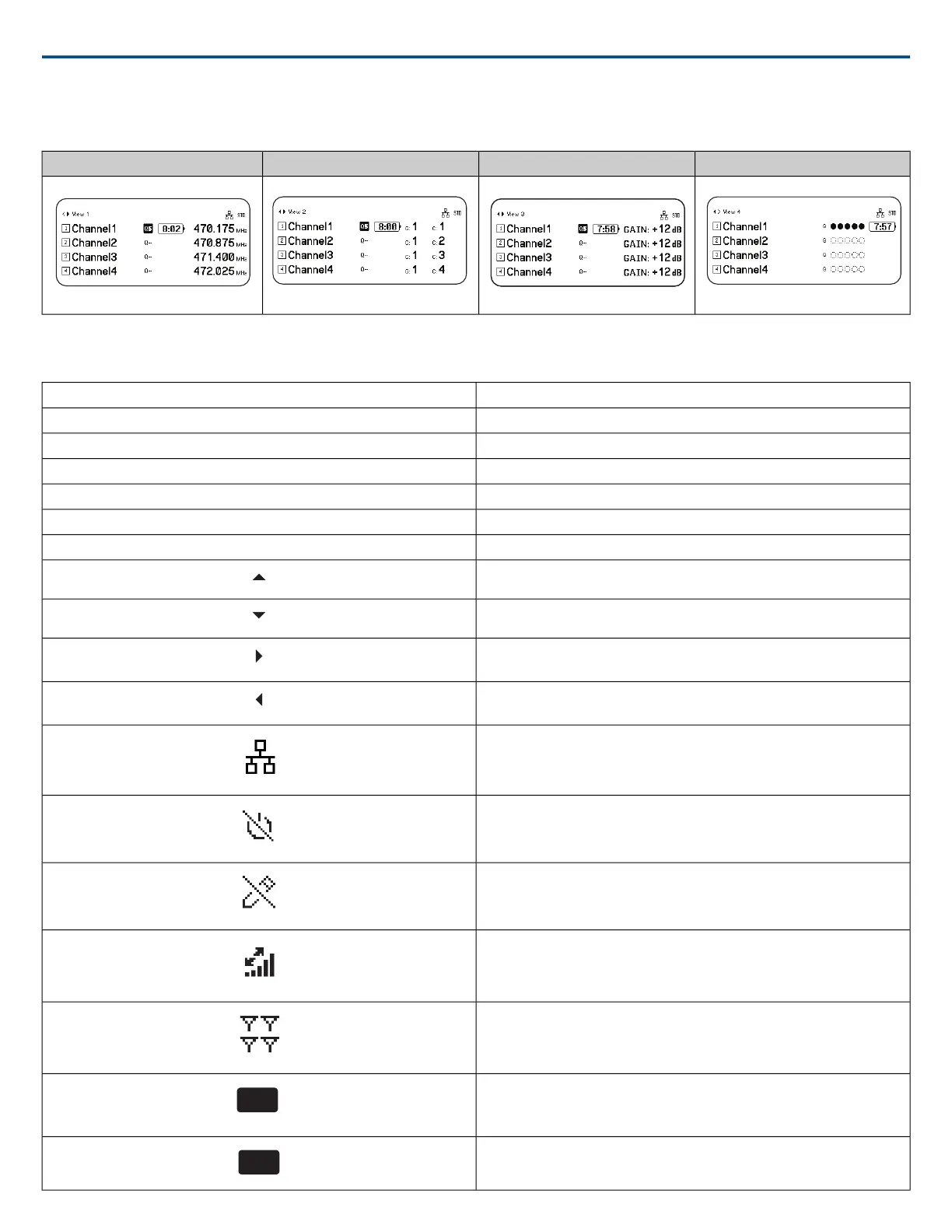

You can rotate the control wheel to choose different views of the information shown on the home screen, including channel name, group and channel, quality
meter, gain, and frequency.
View 4View 3View 2View 1
Screen Icons
The following screen icons indicate receiver modes or settings:
Standard Transmission Mode
STD
High Density Transmission Mode
HD
Frequency Group
G:
Channel
C:
TV band for selected frequency
TV:
AES3 Output Selected
AES3
Selected Home Screen View
View
Scroll Up for More Choices
Scroll Down for More Choices
Scroll Right for More Choices
Scroll Left for More Choices
Network Connection Present to Other Shure Devices or WWB
Power Switch Locked
Front Panel Controls Locked
Indicates ShowLink control active between the receiver and the linked
transmitter
Quadversity Enabled
Combining Frequency Diversity Enabled
FD-C
Selection Frequency Diversity Enabled
FD-S
Shure IncorporatedAD4Q Digital Quad Receiver
5/212017/10/25

Shure AD4Q Specifications

General

Latency	2.9 ms
Number of Channels	4
Audio Frequency Response	20 Hz to 20 kHz
RF Sensitivity	-98 dBm at 10-5 BER
Power Requirements	100 to 240 V AC, 50–60 Hz
Type	Digital Quad-Channel Wireless Receiver
Modulation	Shure proprietary digital
Spurious Rejection	> 80 dB
Image Rejection	> 80 dB
Audio Output	XLR
Network Interface	Ethernet 10/100 Mbps
Operating Temperature Range	-18°C (0°F) to +50°C (122°F)
Dynamic Range	120 dB (A-weighted)
