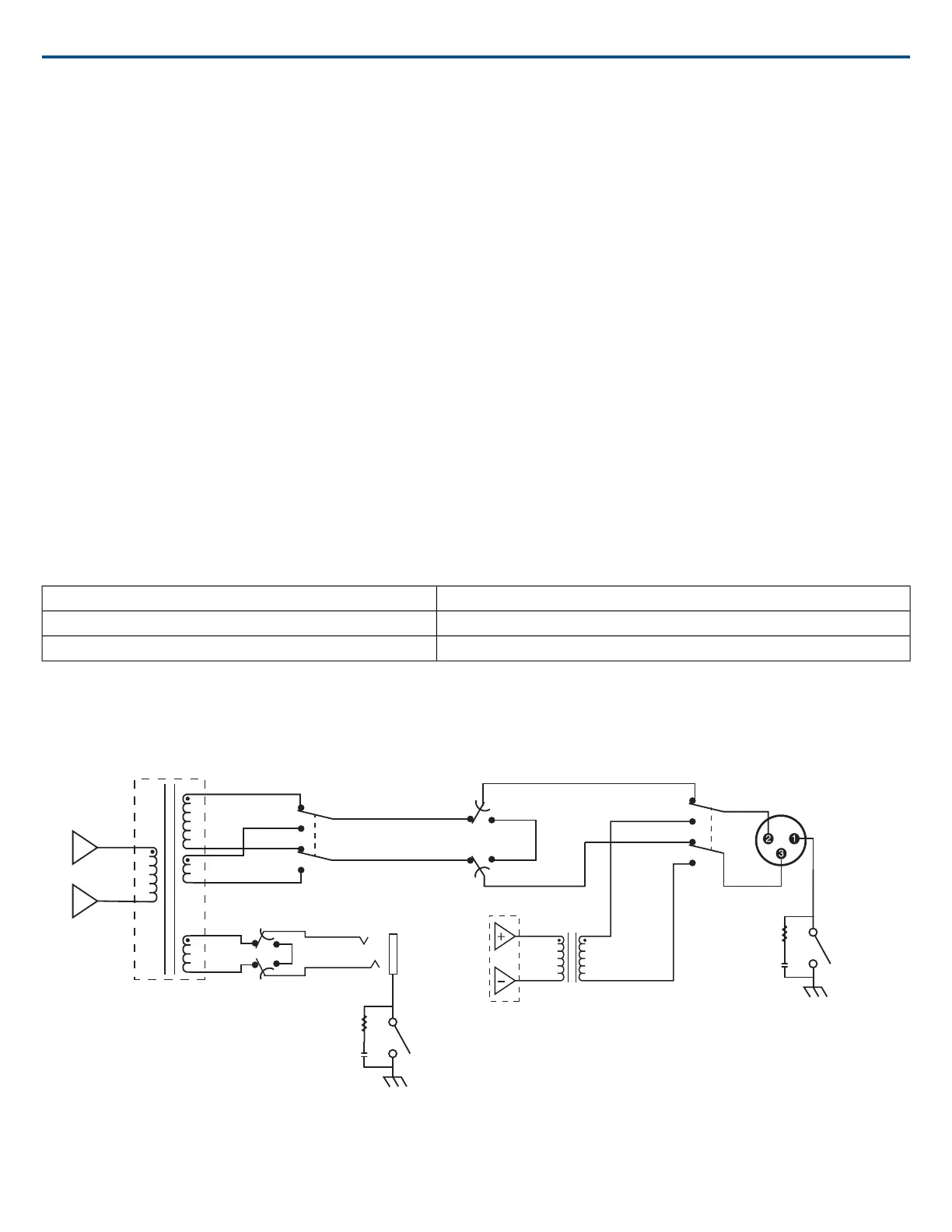

Shure AD4Q - RF Input and Audio Output Diagrams; RF Input Specifications; Audio Output Wiring Diagram

Configuration
Unbalanced, passive
Impedance
50 Ω
Insertion Loss
0 dB, typical
RF Input
Spurious Rejection
>80 dB, typical
Connector Type
BNC
Impedance
50 Ω
Bias Voltage
12 to 13.5 V DC, 150 mA maximum, per antenna
3
RF Carrier Frequency Rangemodel dependent
470–636 MHzAD4Q=A
606–810 MHzAD4Q=B
750–960 MHzAD4Q=C
Tables and Diagrams
Audio Output
Mic/Line Mute
AES3
XLR
10 nF

Ground
Lift
0 dB
-30 dB
AES3
1/4”
10 nF

Ground
Lift
-10 dB
XLR to ¼" Output
Use the following wiring diagram to convert the XLR output to a ¼" output.
3
switchable on-off
