Shure ANTENNA SETUP - Section Two; Diagrams; Receivers

12

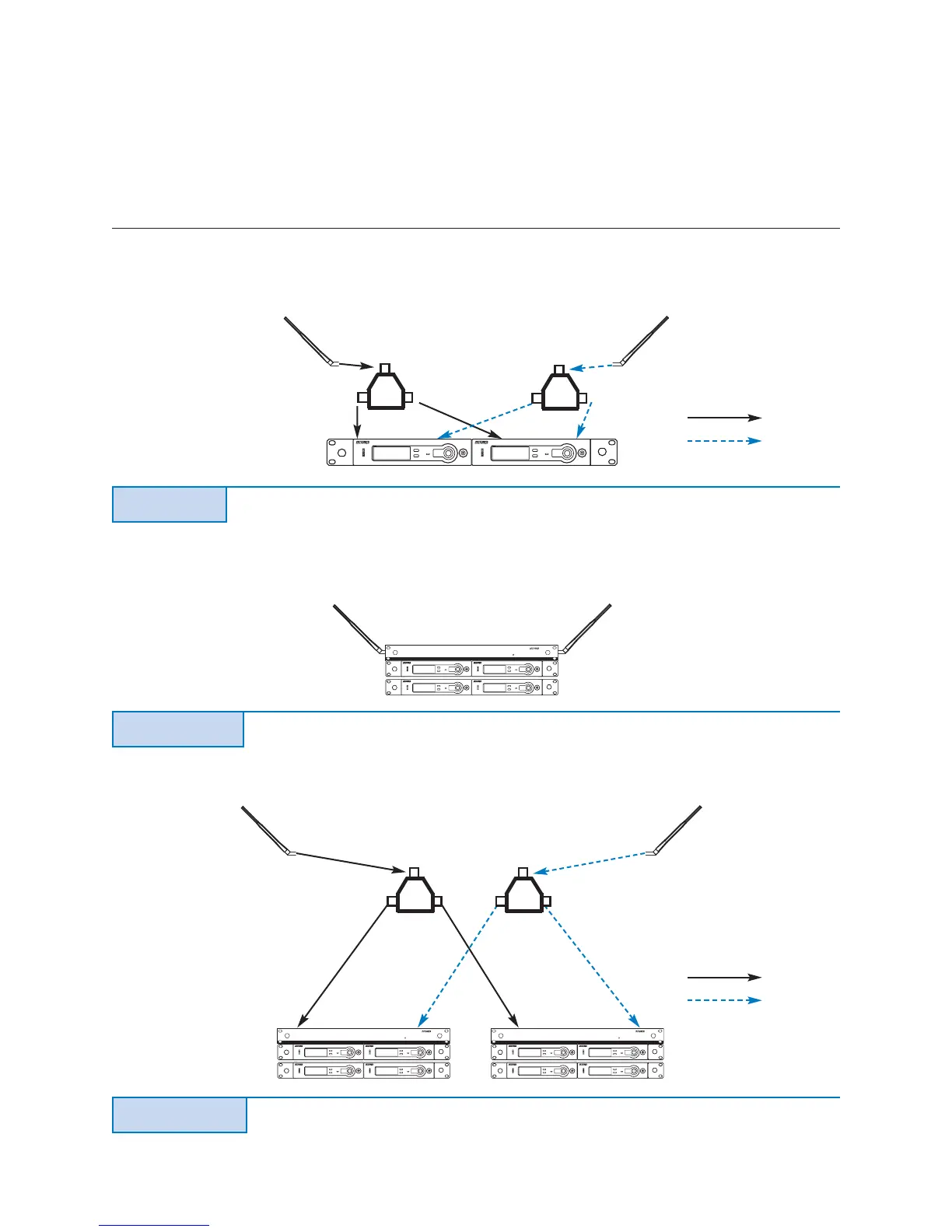

ANTENNA SETUP
Wireless Systems Guide for
5-8 receivers
• (2) active distribution systems* w/4 outputs each
• (2) passive splitters
*Note: For 5 receivers, only 1 active splitter required
A antenna
B antenna
3-4 receivers
(1) active antenna distribution system w/4 outputs
2 receivers
(2) passive splitters
A antenna
B antenna
SLX4
SLX4
SLX4
SLX4
UA844
POWER
UHFANTENNA / POWER DISTRIBUTION SYSTEM
SLX4
SLX4
SLX4
SLX4
UA844
POWER
UHFANTENNA / POWER DISTRIBUTION SYSTEM
SLX4
SLX4
SLX4
SLX4
UA844
POWER
UHFANTENNA / POWER DISTRIBUTION SYSTEM
SLX4
SLX4
SECTION TWO
DIAGRAMS
See pages 7 and 8
for rear connections.
