Shure ANTENNA SETUP - Feet ( 10 M)

17
ANTENNA SETUP
Wireless Systems Guide for

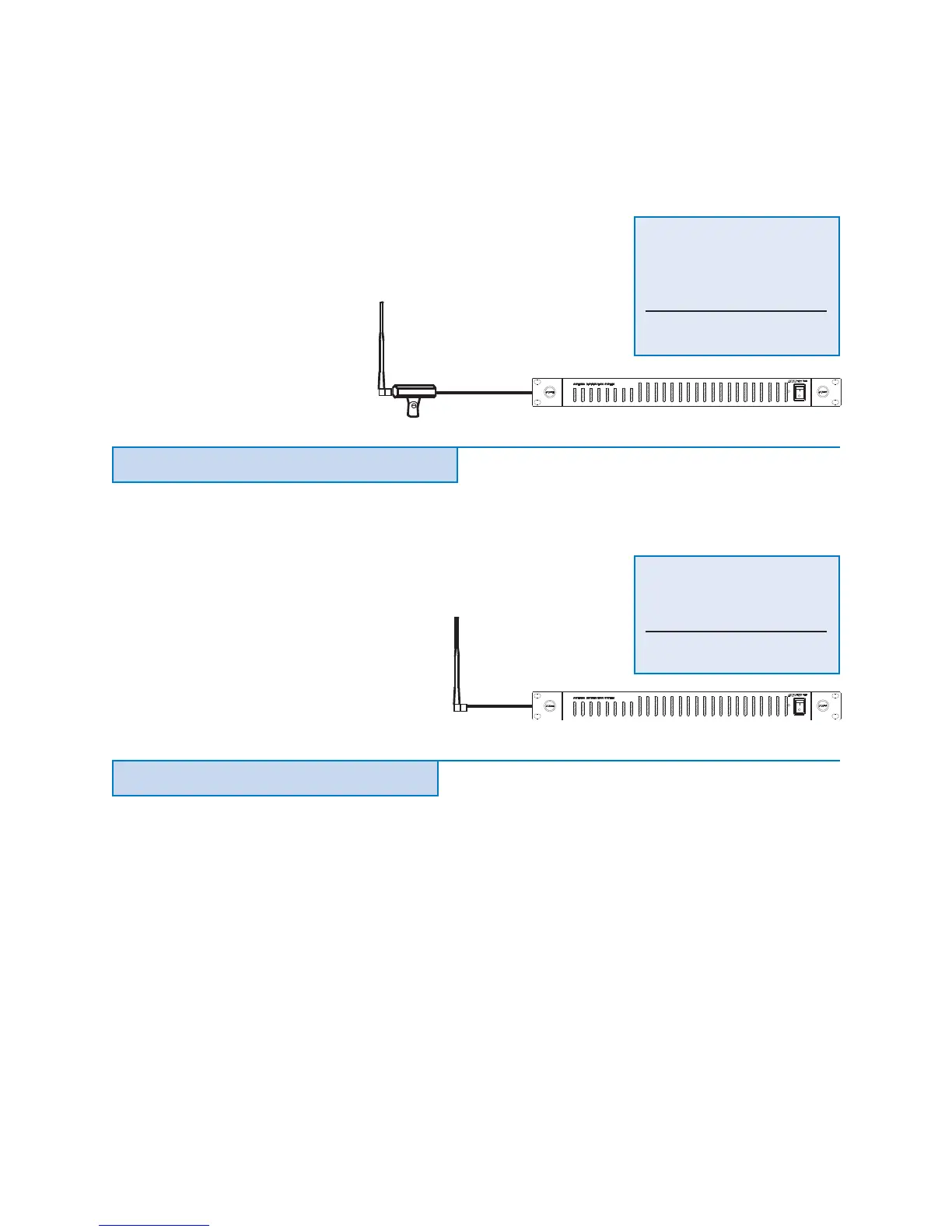

Remote antenna – <30 feet, 10 m
Remote antenna – 30 feet,
Net Gain Calculation
Antenna 0 dB
Amplifier +3 dB
25’ RG8X Cable - 3 dB
Net Gain +0 dB ✓
Net Gain Calculation
Antenna 0 dB
6’ RG58 Cable - 1 dB
Net Gain -1 dB ✓
30 ft. (10 m) - RG8X
6 ft. (2 m) - RG8X
˜
10 m
Many more system diagrams are available in the Shure Knowledge Base at www.shure.com/support.
