Shure BLX2 Quick Start Guide

2

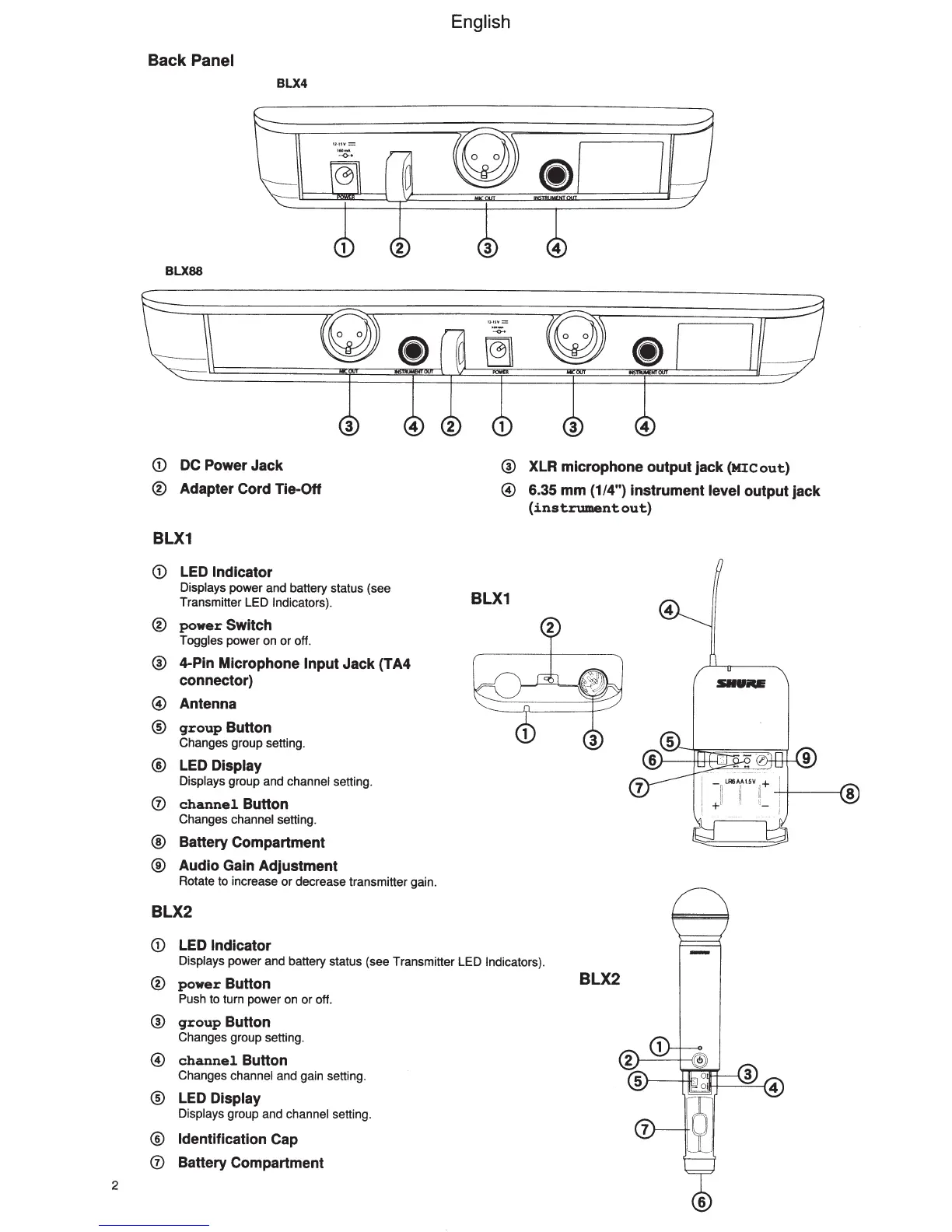

Back
Panel
BLX4
BLX88
<D
DC
Power Jack
® Adapter Cord Tie-Off
BLX1
<D
LED
Indicator
Displays
power and battery status (see
Transmitter LED
Indicators).
®
power
Switch
Toggles power on or off.
®
4-Pin Microphone
Input
Jack
(T A4
connector)
@
Antenna
®
group
Button
Changes group setting.
@
LED
Display
Displays
group and channel
setting.
®
channel
Button
Changes
channel
setting.
®
Battery Compartment
®
Audio Gain Adjustment
Rotate to increase or decrease transmitter gain.
BLX2
<D
LED
Indicator
English
4
®
XLR microphone output jack
(MICout)
@
6.35 mm
(1/4")
instrument level
output jack
(ins
truman
tout)
BLX1
4
Displays
power and battery status (see Transmitter LED
Indicators).
®
power
Button
BLX2
Push to turn power
on
or off.
®
group
Button
Changes group setting.
@
channel
Button
Changes
channel
and gain setting.
®
LED
Display
Displays
group and
channel
setting.
@
Identification
Cap
®
Battery Compartment

Shure BLX2 Specifications

General

Battery Life	Up to 14 hours
Battery Type	2 AA batteries
Modulation	FM
Transmitter Type	Handheld
Compatibility	BLX Series
Frequency Response	50 Hz to 15 kHz
Operating Range	300 ft (91 m) typical
Microphone Capsule	SM58
RF Output Power	10mW
Dynamic Range	100 dB
