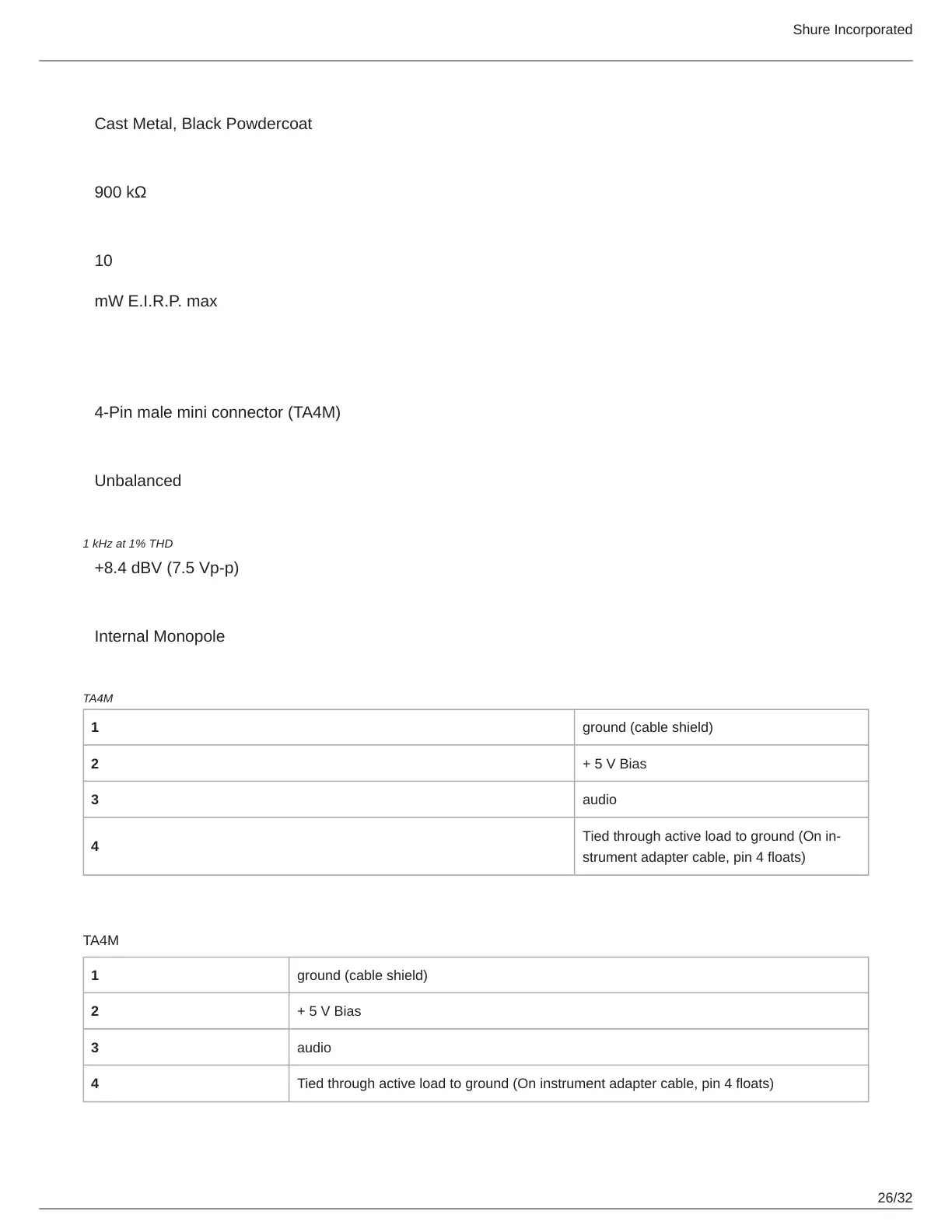

Housing
Cast Metal, Black Powdercoat
Input Impedance
900 kΩ
RF Output Power
10
mW E.I.R.P. max
Transmitter Input
Connector
4-Pin male mini connector (TA4M)
Configuration
Unbalanced
Maximum Input Level
1 kHz at 1% THD
+8.4 dBV (7.5 Vp-p)
Antenna Type
Internal Monopole
Pin Assignments
TA4M
1 ground (cable shield)
2 + 5 V Bias
3 audio
4
Tied through active load to ground (On in
strument adapter cable, pin 4 floats)
Pin Assignments
TA4M
1 ground (cable shield)
2 + 5 V Bias
3 audio
4 Tied through active load to ground (On instrument adapter cable, pin 4 floats)
