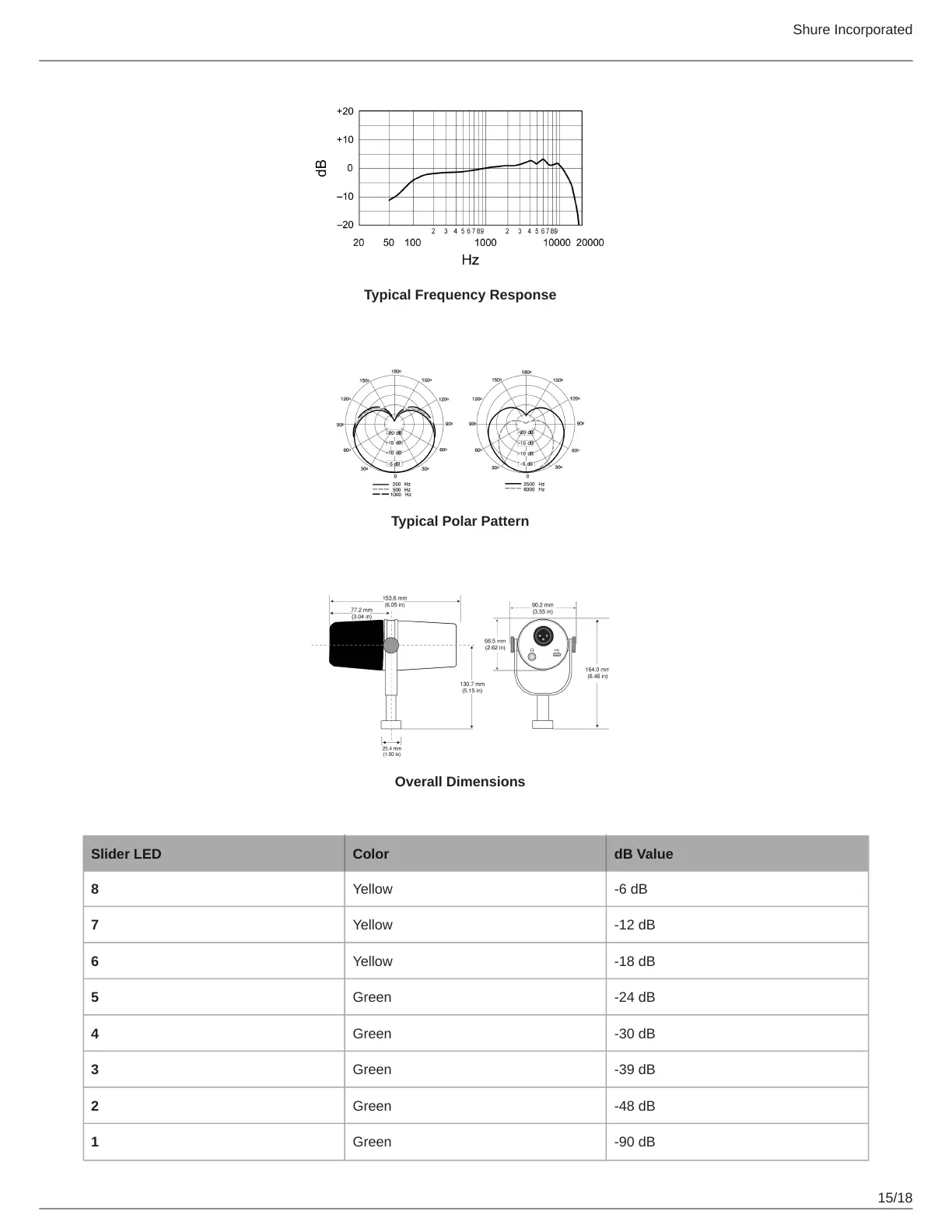

Typical Frequency Response
Typical Polar Pattern
Overall Dimensions
Slider LED Color dB Value
8 Yellow -6 dB
7 Yellow -12 dB
6 Yellow -18 dB
5 Green -24 dB
4 Green -30 dB
3 Green -39 dB
2 Green -48 dB
1 Green -90 dB
