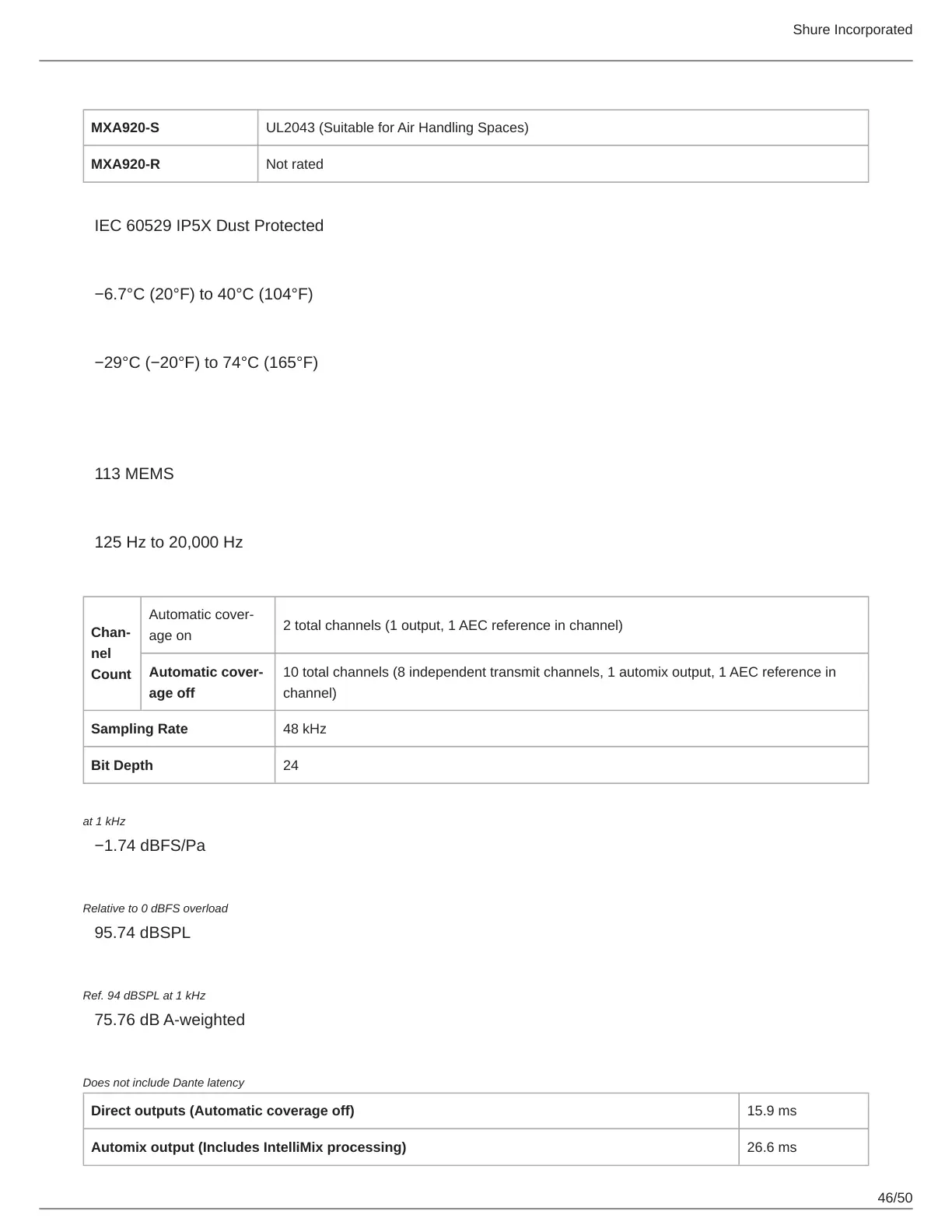

Plenum Rating
MXA920-S UL2043 (Suitable for Air Handling Spaces)
MXA920-R Not rated
Dust Protection
IEC 60529 IP5X Dust Protected
Operating Temperature Range
−6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range
−29°C (−20°F) to 74°C (165°F)
Audio
Microphone Elements
113 MEMS
Frequency Response
125 Hz to 20,000 Hz
AES67 or Dante Digital Output
Chan
nel
Count
Automatic cover
age on
2 total channels (1 output, 1 AEC reference in channel)
Automatic cover
age off
10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in
channel)
Sampling Rate 48 kHz
Bit Depth 24
Sensitivity
at 1 kHz
−1.74 dBFS/Pa
Maximum SPL
Relative to 0 dBFS overload
95.74 dBSPL
Signal-to-Noise Ratio
Ref. 94 dBSPL at 1 kHz
75.76 dB Aweighted
Latency
Does not include Dante latency
Direct outputs (Automatic coverage off) 15.9 ms
Automix output (Includes IntelliMix processing) 26.6 ms
