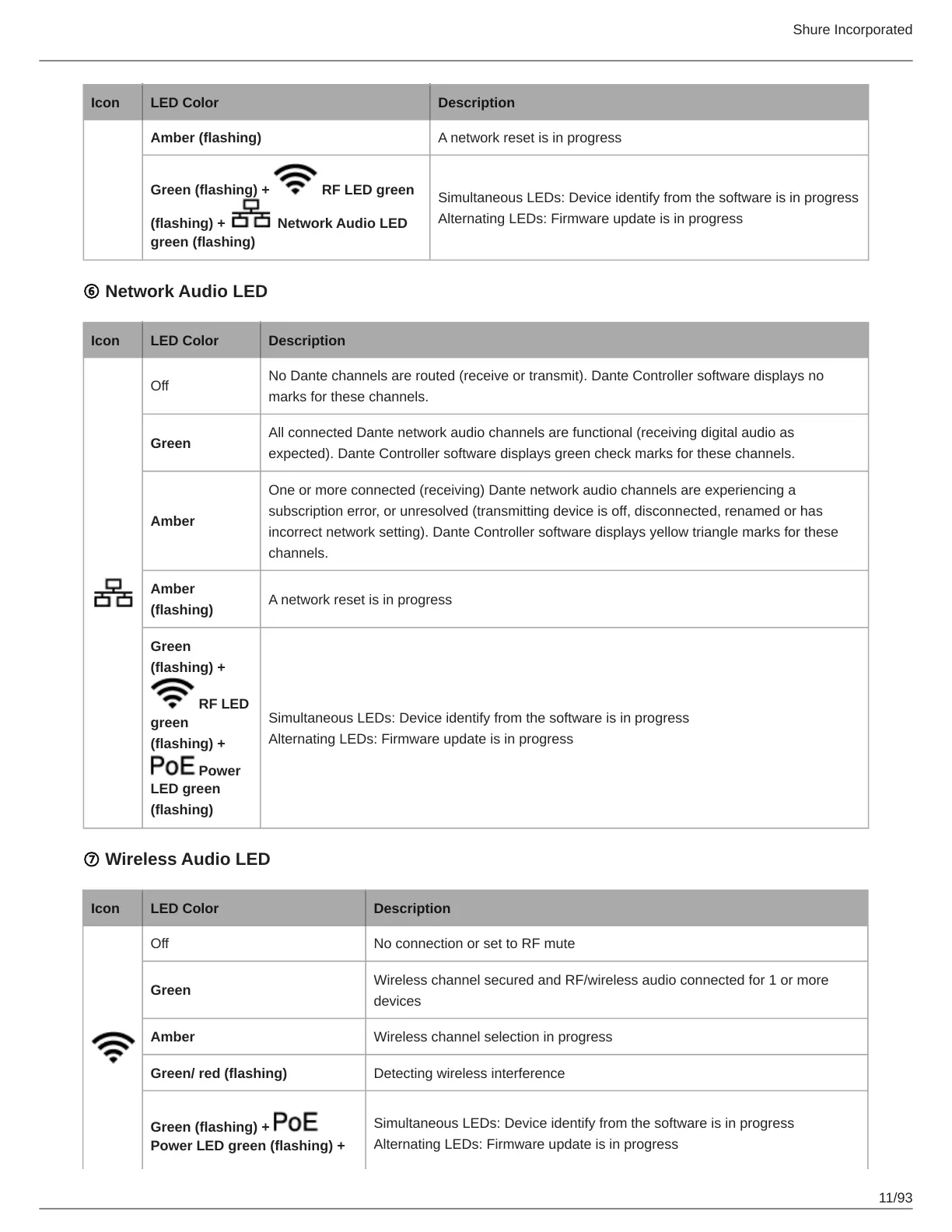

Icon LED Color Description
Amber (flashing) A network reset is in progress
Green (flashing) + RF LED green
(flashing) + Network Audio LED
green (flashing)
Simultaneous LEDs: Device identify from the software is in progress
Alternating LEDs: Firmware update is in progress
⑥ Network Audio LED
Icon LED Color Description
Off
No Dante channels are routed (receive or transmit). Dante Controller software displays no
marks for these channels.
Green
All connected Dante network audio channels are functional (receiving digital audio as
expected). Dante Controller software displays green check marks for these channels.
Amber
One or more connected (receiving) Dante network audio channels are experiencing a
subscription error, or unresolved (transmitting device is off, disconnected, renamed or has
incorrect network setting). Dante Controller software displays yellow triangle marks for these
channels.
Amber
(flashing)
A network reset is in progress
Green
(flashing) +
RF LED
green
(flashing) +
Power
LED green
(flashing)
Simultaneous LEDs: Device identify from the software is in progress
Alternating LEDs: Firmware update is in progress
⑦ Wireless Audio LED
Icon LED Color Description
Off No connection or set to RF mute
Green
Wireless channel secured and RF/wireless audio connected for 1 or more
devices
Amber Wireless channel selection in progress
Green/ red (flashing) Detecting wireless interference
Green (flashing) +
Power LED green (flashing) +
Simultaneous LEDs: Device identify from the software is in progress
Alternating LEDs: Firmware update is in progress
