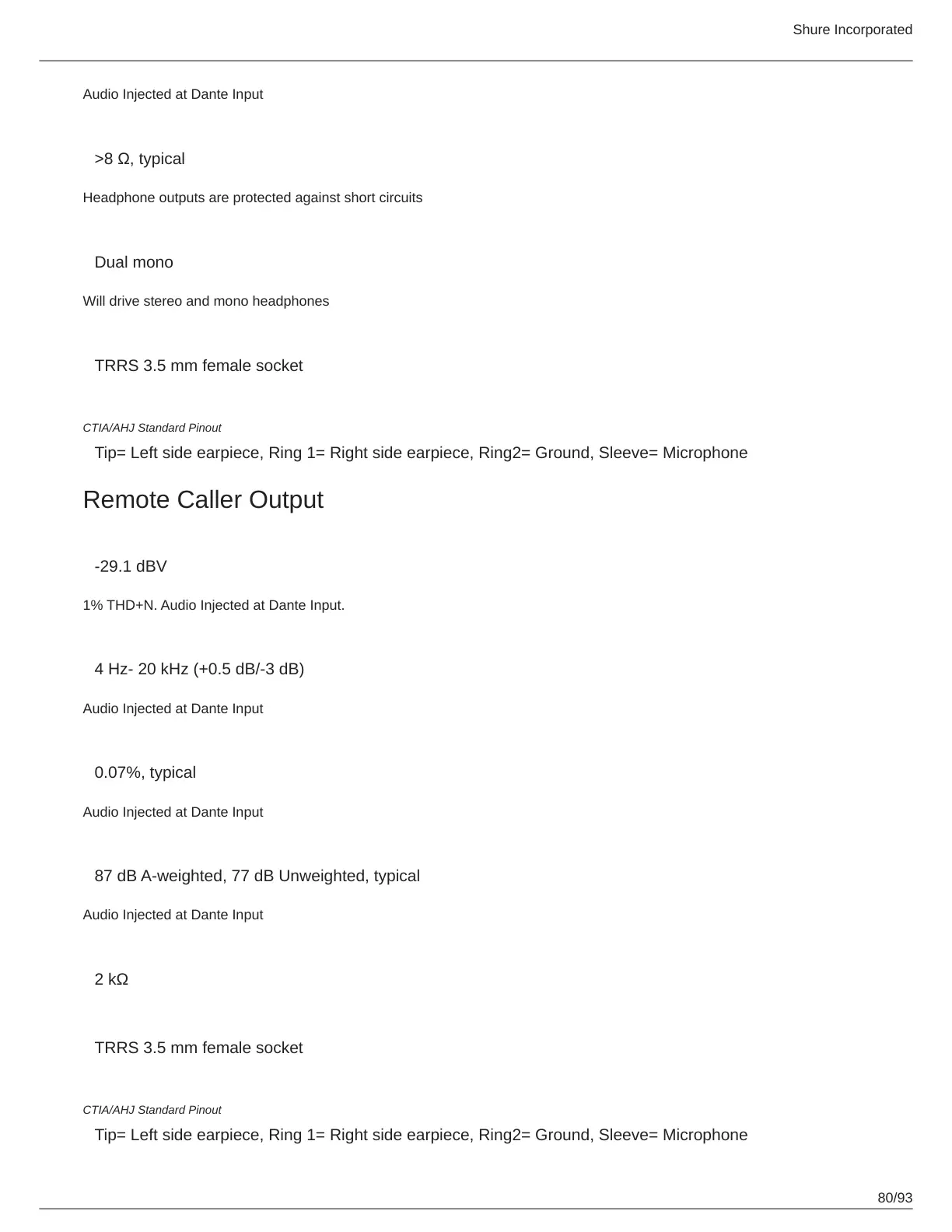

Audio Injected at Dante Input
Load Impedance
>8Ω,typical
Headphone outputs are protected against short circuits
Configuration
Dual mono
Will drive stereo and mono headphones
Type
TRRS3.5mmfemalesocket
Pin Assignments
CTIA/AHJ Standard Pinout
Tip= Left side earpiece, Ring 1= Right side earpiece, Ring2= Ground, Sleeve= Microphone
Remote Caller Output
Maximum Output Level
-29.1dBV
1% THD+N. Audio Injected at Dante Input.
Frequency Response
4Hz-20kHz(+0.5dB/-3dB)
Audio Injected at Dante Input
Total Harmonic Distortion
0.07%, typical
Audio Injected at Dante Input
Dynamic Range
87dBA-weighted,77dBUnweighted,typical
Audio Injected at Dante Input
Output Impedance
2kΩ
Type
TRRS3.5mmfemalesocket
Pin Assignments
CTIA/AHJ Standard Pinout
Tip= Left side earpiece, Ring 1= Right side earpiece, Ring2= Ground, Sleeve= Microphone
