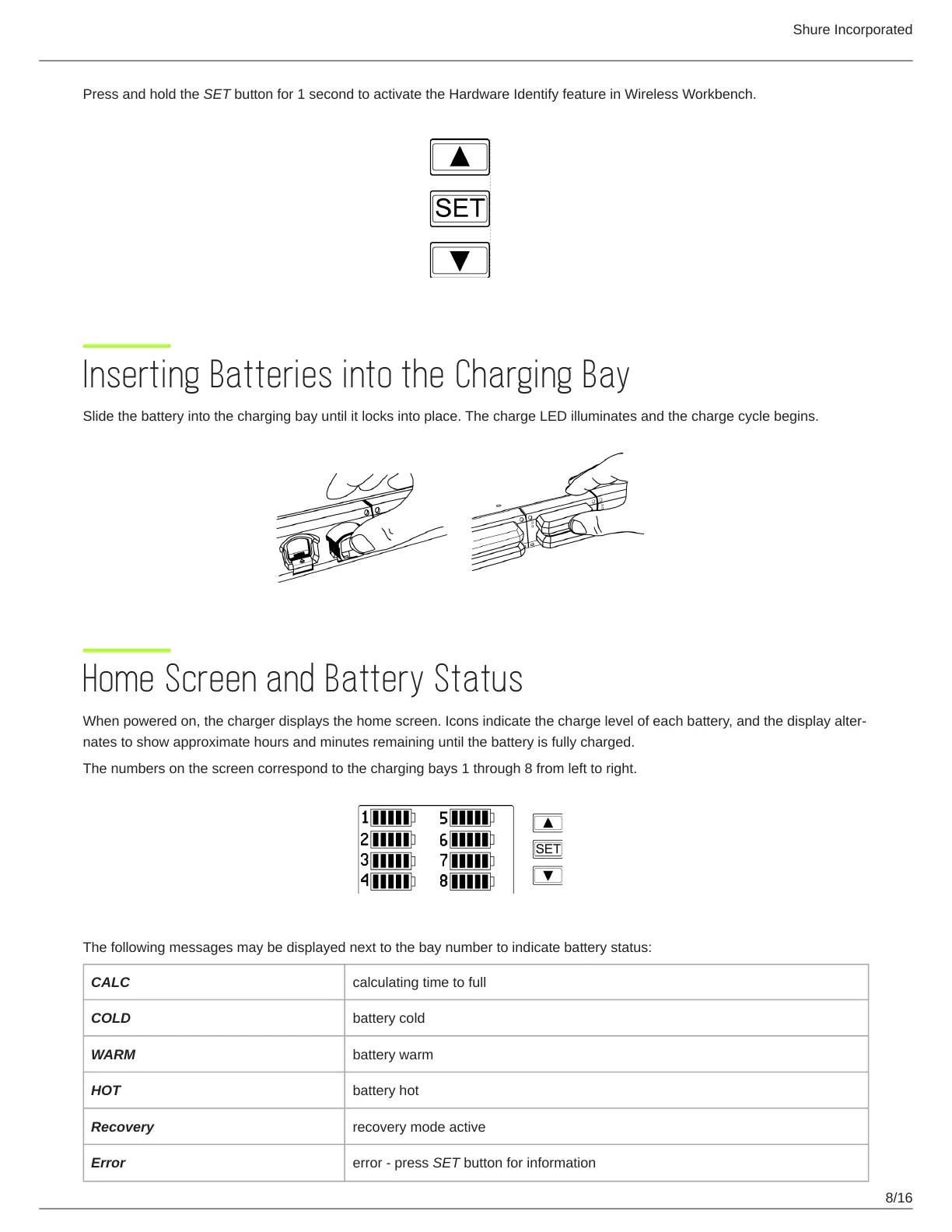

Press and hold the SET button for 1 second to activate the Hardware Identify feature in Wireless Workbench.
Inserting Batteries into the Charging Bay
Slide the battery into the charging bay until it locks into place. The charge LED illuminates and the charge cycle begins.
Home Screen and Battery Status
When powered on, the charger displays the home screen. Icons indicate the charge level of each battery, and the display alter
nates to show approximate hours and minutes remaining until the battery is fully charged.
The numbers on the screen correspond to the charging bays 1 through 8 from left to right.
The following messages may be displayed next to the bay number to indicate battery status:
CALC calculating time to full
COLD battery cold
WARM battery warm
HOT battery hot
Recovery recovery mode active
Error error - press SET button for information
