Shure ULXD - Technical Specifications; Frequency, Power, and Connector Diagrams

17
500 Ω 500 Ω
1M Ω
100 µF
470 pF
5 V DC
Active
Load
Ground
Bias Voltage
Audio Input
Active Load
Audio
Input
Ground
1µF
Pad
12dB
Z
50 Ω
22 µF
22 µF
22 µF
22 µF
50 Ω
-30 dB
50 Ω
mic/ line
instrument/ aux

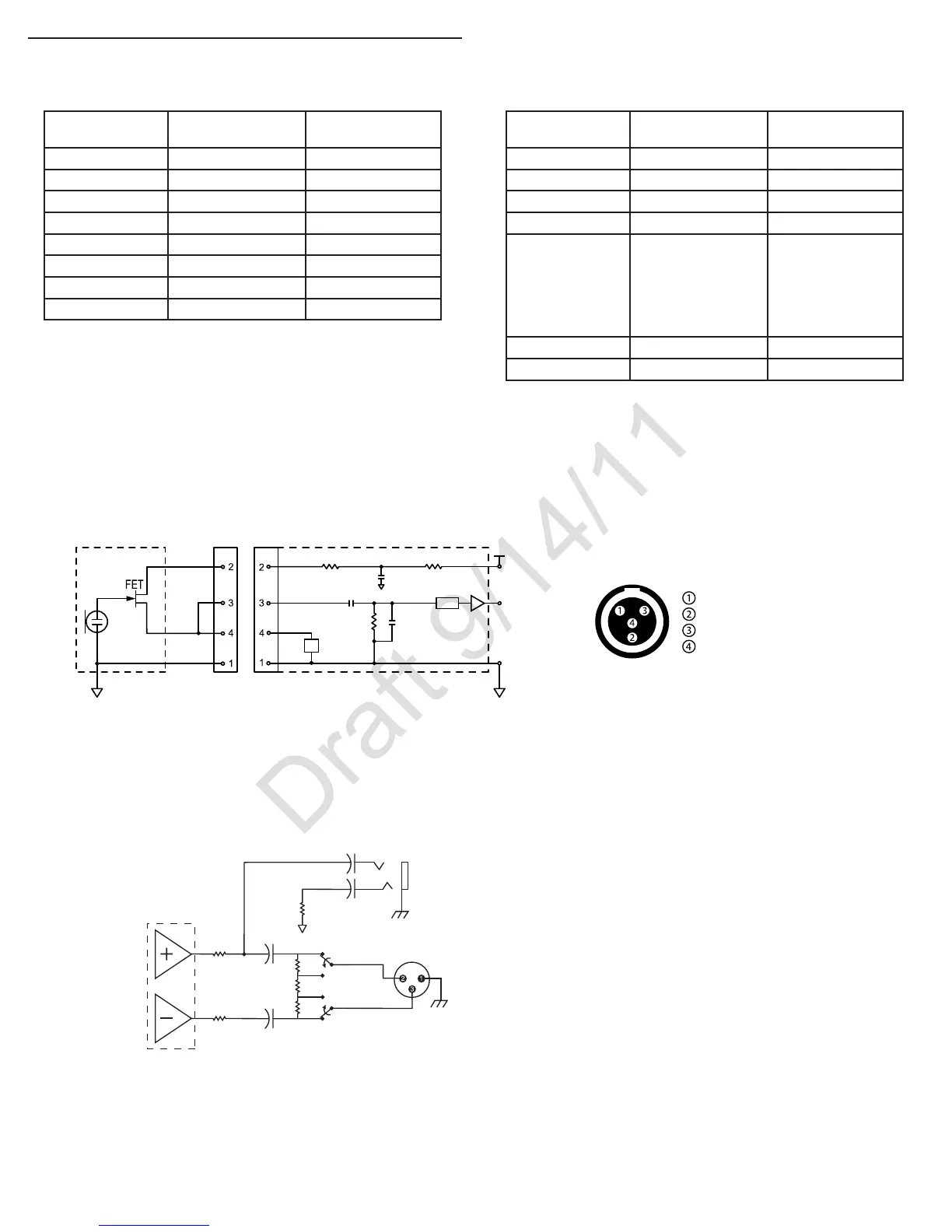

ULXD1 TA4M Connector
ULXD4 Audio Outputs
Tables and Diagrams
8 V DC
Active Load
Audio Input
Frequency Range and Transmitter Output Power
Band Frequency Range
( MHz)
Power ( mW)
G50 470 to 534 1/10/20
G51 470 to 534 1/10/20
G52 479 to 534 1/10
H51 534 to 598 1/10/20
H52 534 to 565 1/10
J50 572 to 636 10/50
K51 606 to 670 1/10
L50 632 to 696 1/10/20
Band Frequency Range
( MHz)
Power ( mW)
L51 632 to 696 1/10/20
P51 710 to 782 1/10/20
R51 800 to 810 1/10/20
JB (Tx only) 806 to 810 1/10
AB (Rx and Tx) 770 to 810
“A” Freq (770.250-
805.750) : 20mW /
10mW / 1mW
“B” Freq: (806.125-
809.750) = 10mW /
1mW
Q51 794 to 806 10/50
X50 925 to 932 10
Draft 9/14/11
