Shure V-15 Type III User Manual

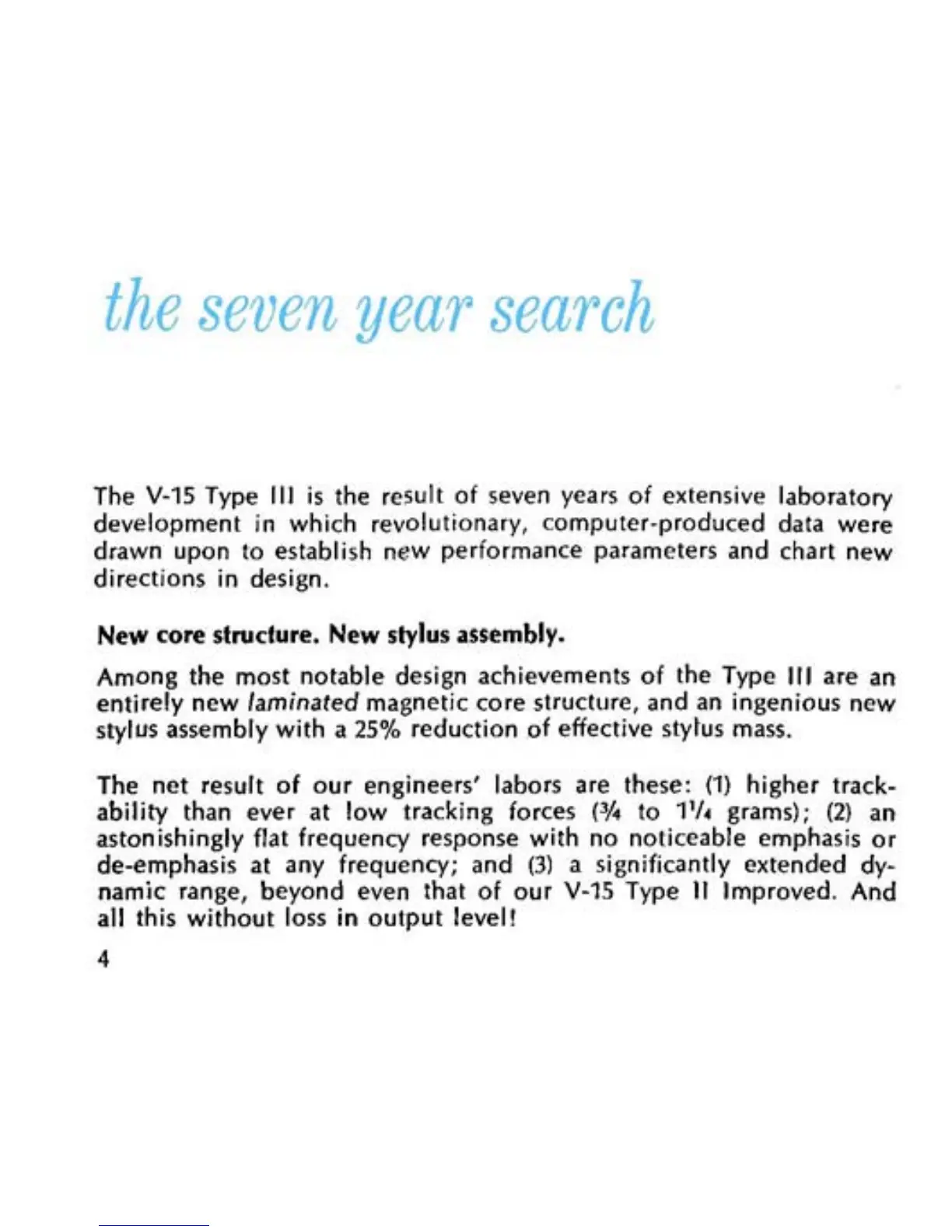

the seven year search
The V-15 Type Ill is the result of seven years of extensive laboratory
development in which revolutionary, computer-produced data were
drawn upon to establish new performance parameters and chart new
directions in design.
New core structure. New stylus assembly.
Among the most notable design achievements of the Type
Ill are an
entirely new laminated magnetic core structure, and an ingenious new
stylus assembly with a 25% reduction of effective
stylus mass.
The net result of our engineers' labors are these:
(1) higher track-
ability than ever at low tracking forces (3h to 1'14 grams);
(2) an
astonishingly flat frequency response with no noticeable emphasis or
de-emphasis at any frequency; and
(3) a significantly extended dy-
namic range, beyond even that of our
V-15 Type II Improved. And
all this without loss in output level!

Shure V-15 Type III Specifications

General

Type	Phono Cartridge
Category	Accessories
Frequency Response	20 Hz - 20 kHz
Stylus Type	Elliptical
Mount	Standard 1/2 inch
Channel Separation	25 dB at 1 kHz
Load Impedance	47 kΩ
Compliance	25 x 10-6 cm/dyne
Channel Balance	2 dB
Output Voltage	3.5 mV
Recommended Load Capacitance	400 to 500 pF
